Hydraulic System 1
25

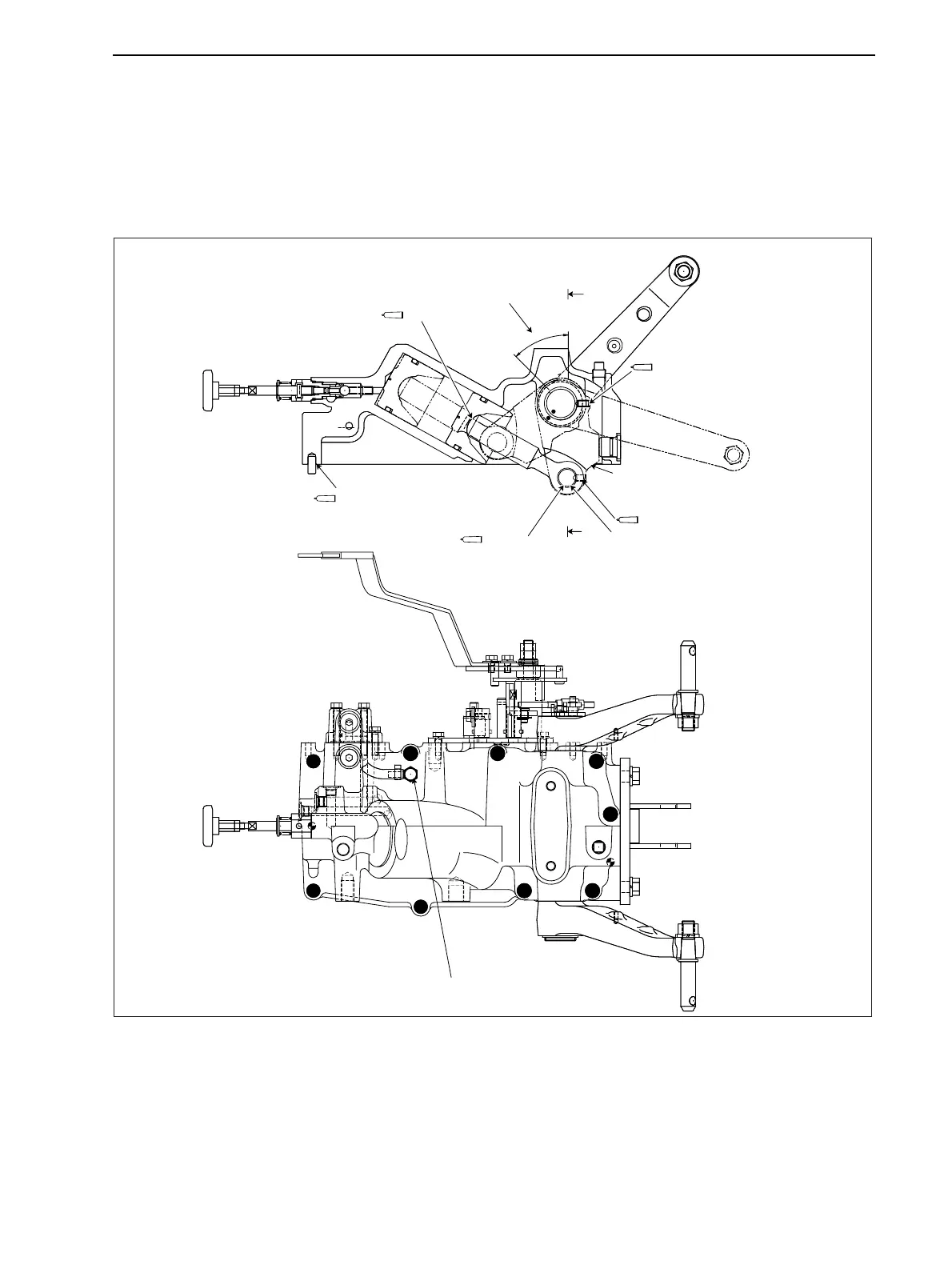

3. Match the punch marks of the power arm and lift shaft for assembly.
4. Match the punch marks of the lift arm and lift shaft for assembly.
5. Wrap the seal tape around the breather and mount it with the hole forward.
6. Apply some liquid packing (ThreeBond #1208D) to the mounting face of the lift case for assembly.
Torque: 39.2 to 44.1N•m {400 to 450kgf•m, 28.9 to 36.2lbf•ft}
7. Refer to the table for torque for each part. (Standard torque unless specified.)
MOS2
-P
MOS2
-P
Bush slit (R&L)
45
°
Lock screw
Lock screw
Bush slit
Match the punch marks of the power arm
and lift shaft for assembly.
A
A
Packing
GZ3W31-026C
Breather
