Cub Cadet 7530

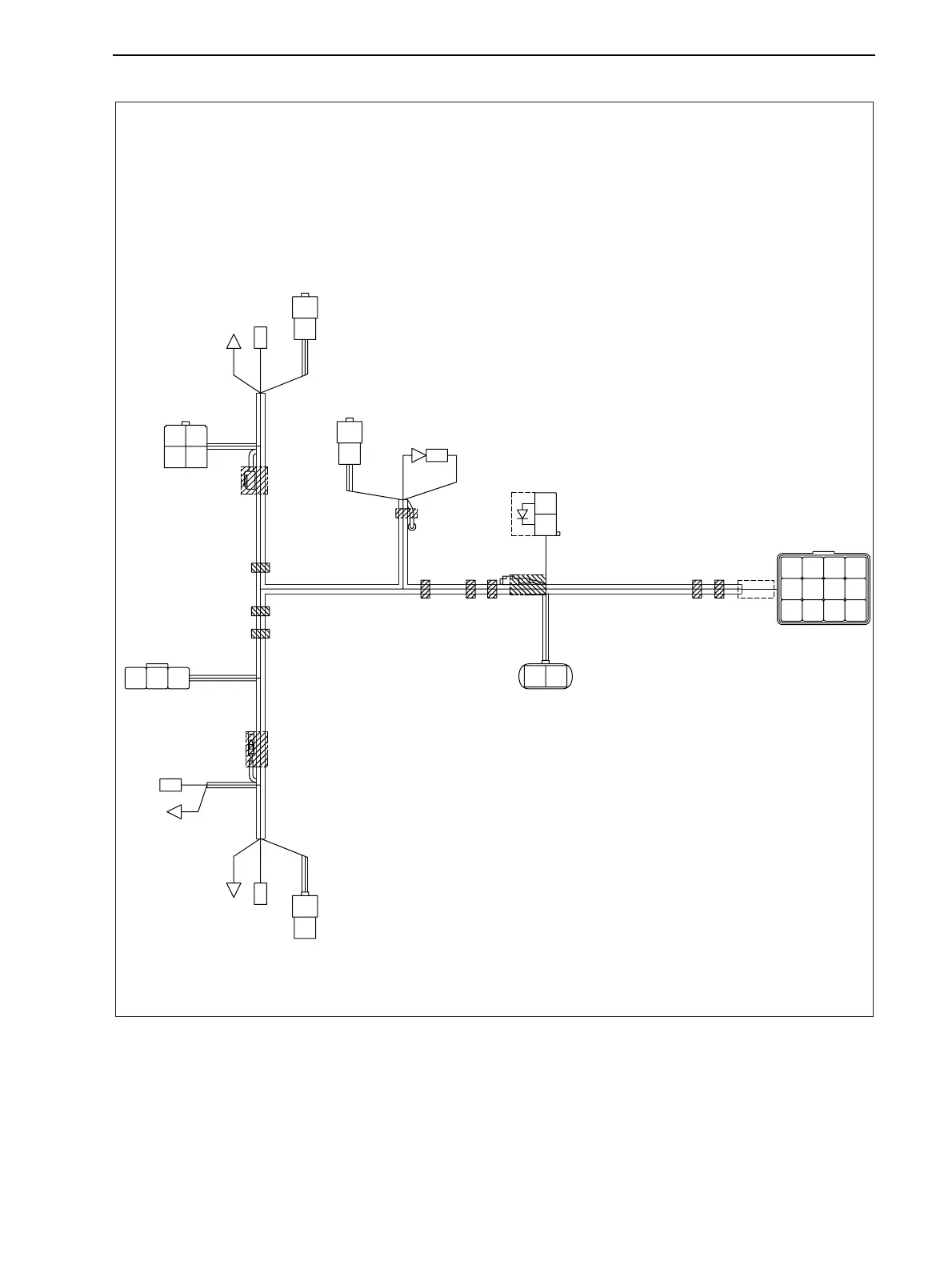

Wiring Diagram 1
6
2 Manual Transmission (7530) - 1/2
Turn lamp (L)
Harness
Tail lamp (L)
Diode
LR
LR
GB
GW
2WB
2BW
2W
2W
L
YR
IND PTO valve
IND PTO switch
L
YR
GB 2B
LR
B
B
B
GW
B
GB LR
L
2WBYR
GW
G
2B 2BW
Safety switch
(Rear PTO)
Safety switch
(MID PTO)
Harness E
Working lamp
Turn lamp (R)
Tail lamp (R)
YR
B
B
L
G
GZ3W41-017
