Cub Cadet 7530 Maintenance Manual

5 Transmission
53
5.1.2 7530

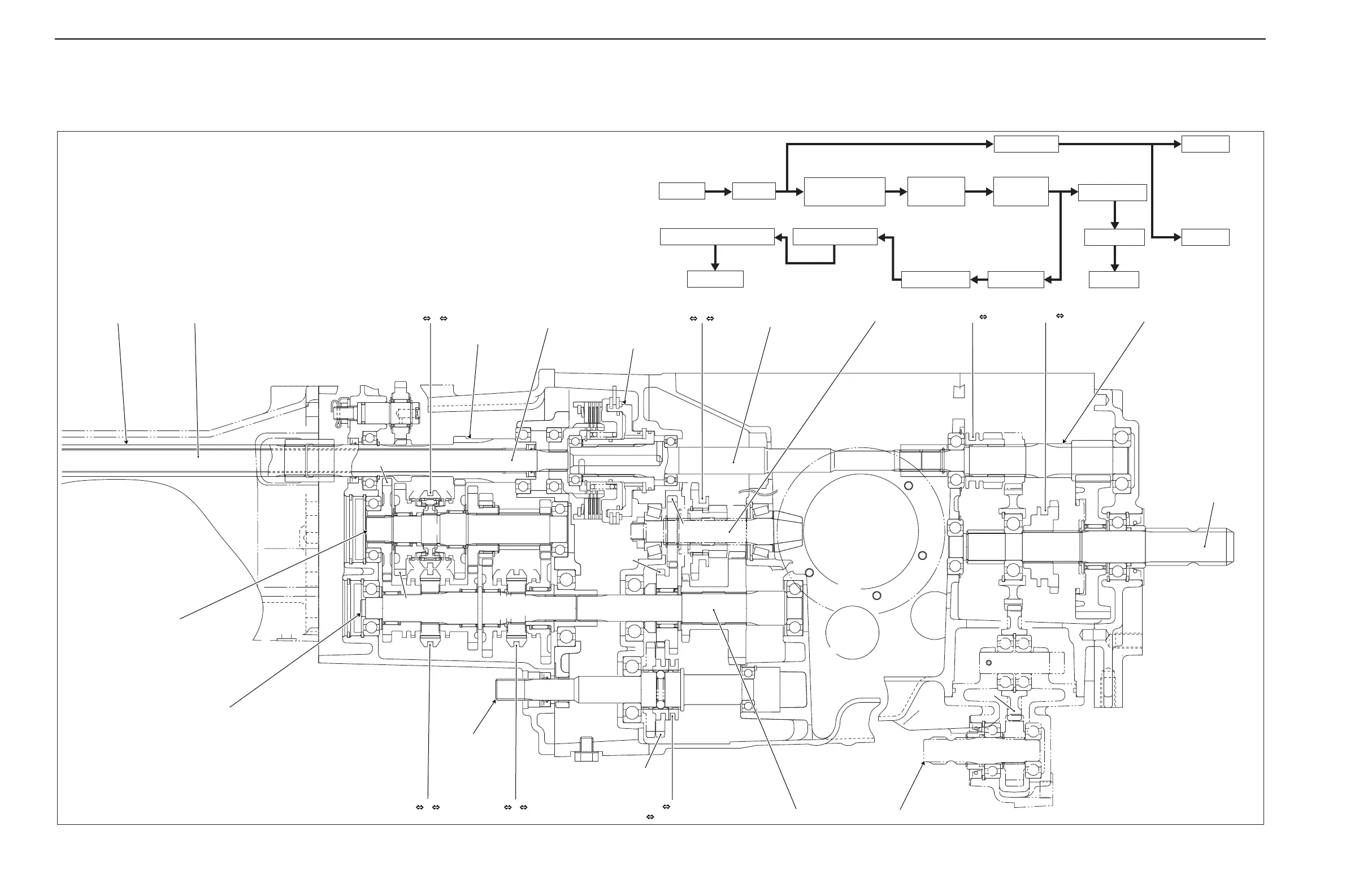

• The main transmission is forward: 4-stage transmission and reverse: 4-stage transmission, and range transmission is 3-stage transmission.
• PTO gearing: 1-stage rear PTO and 1-stage MID PTO.
Sub gearing
Low speed N High speed
Shuttle change
forward N reverse
PTO input shaft
4-stage N 3-stage 4-stage N 3-stage
Main gearing
Rear PTO
OFF ON
MID PTO
OFF ON
PTO shaft
PTO clutch assembly
Shuttle shaft
Rear PTO shaft
PTO drive shaft
MID PTO shaft
4WD shaft
Sub shaft
Pinion shaft
Engine
Front wheel 2
nd
and 3
rd
deceleration Front wheel 1
st
deceleration
Clutch
Sub gearing
(2-stage)
Main gearing
(4-stage)
PTO clutch Rear PTO
MID PTO
Front differential
Rear differential
Final Gearing
Rear wheel4WD change
Shuttle change
(forward/reverse)
Front Wheel
Pipe shaft Drive shaft
Shaft
Main shaft
2WD 4WD
2WD 4WD change
22T
25T
20T
30T
24T
29T
14T
28T
33T
16T
19T
33T
34T
10T
46T
25T
41T
19T
33T
44T
28T
33T
34T
19T
25T
35T
