Domestic Series 7000 Hydraulics
30

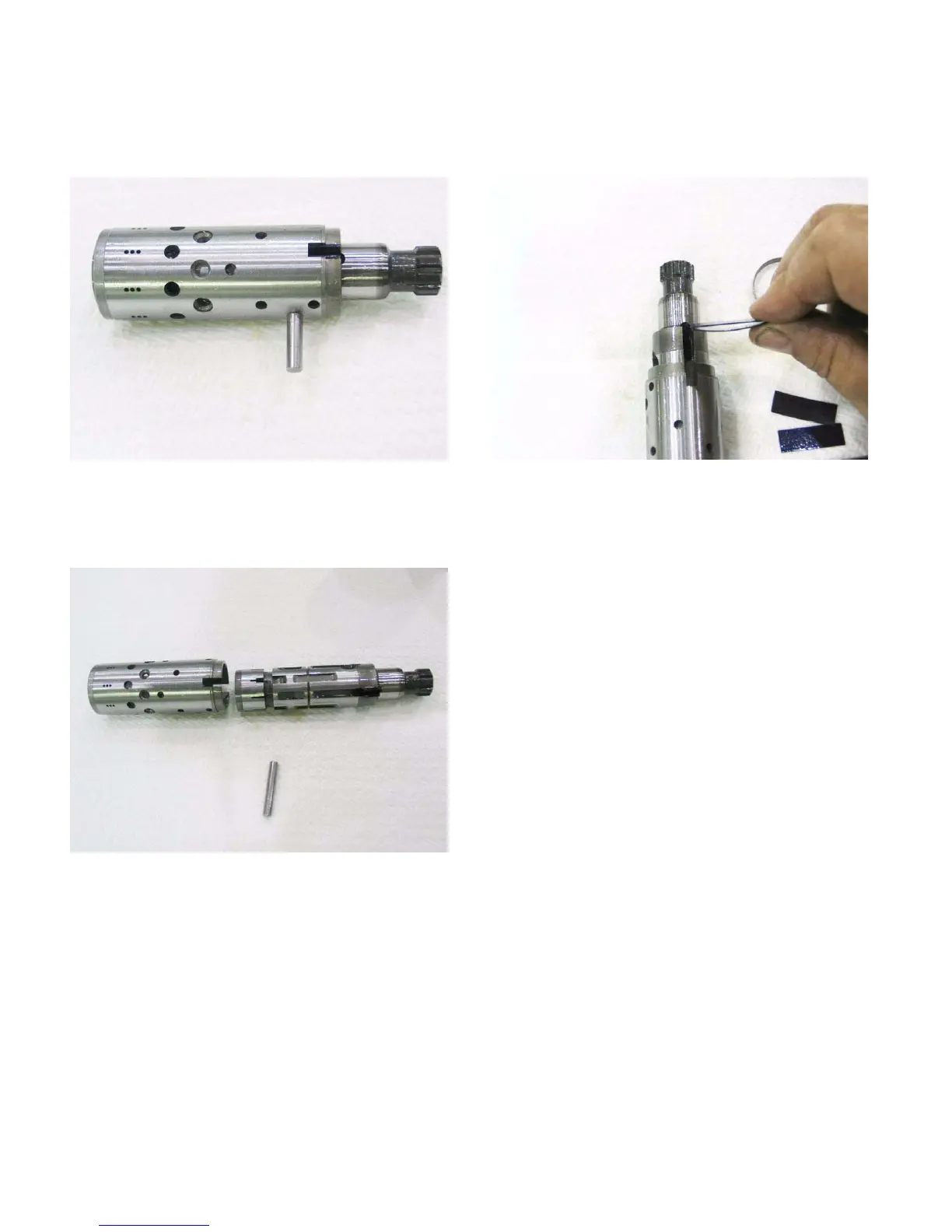

12.8. A dowell pin connects the spool and sleeve axi-
ally, and transmits steering force to the sleeve
from the cardan shaft. See Figure 12.8.
12.9. Removing the dowel pin allows the spool to sep-
arate from the sleeve. See Figure 12.9.
12.10.There are two types of leaf spring: flat and
bowed. A pair of each goes together, back-to-
back. See Figure 12.10.
Figure 12.8
Figure 12.9
Figure 12.10
