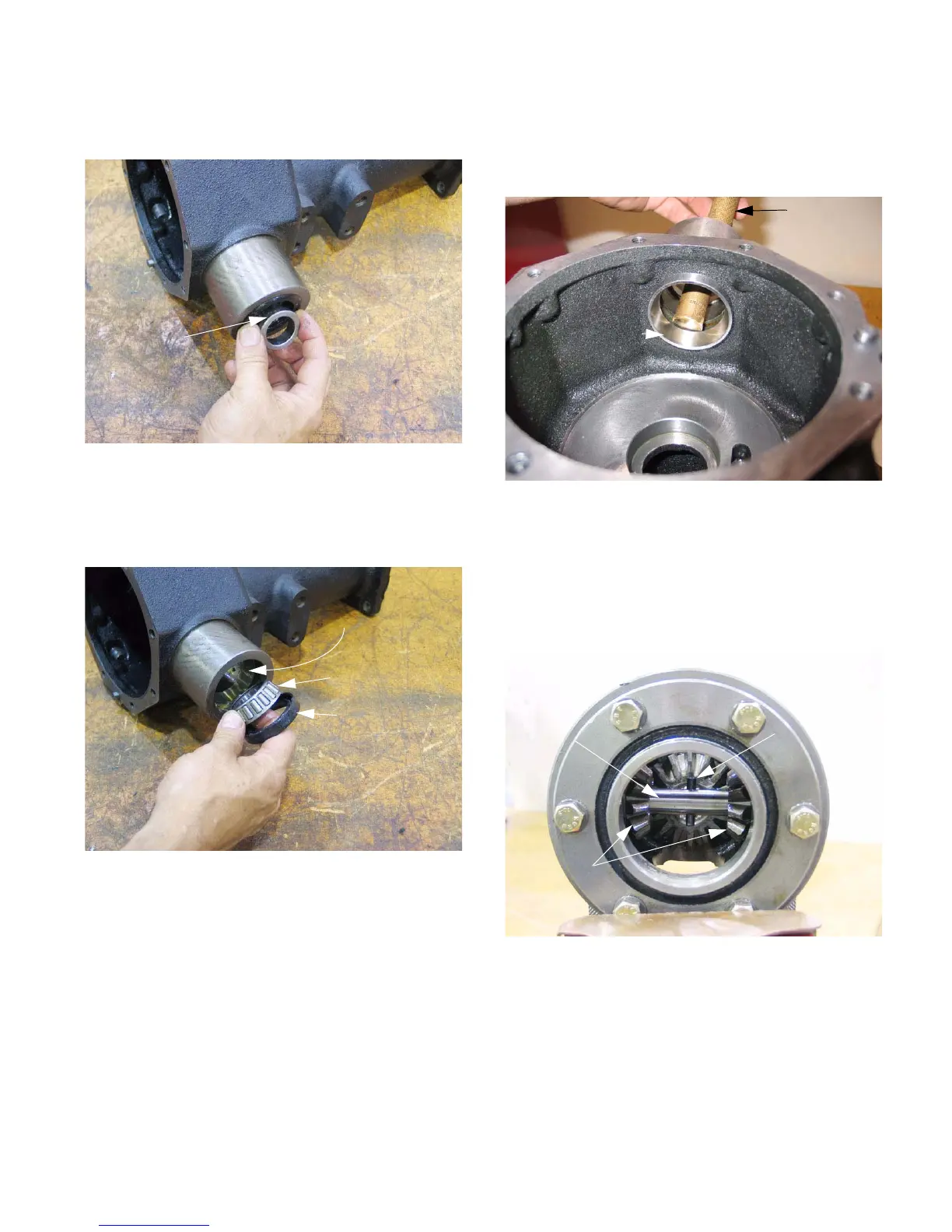

9.21. Remove the spacer that fits between the pinion
shaft and the seal. See Figure 9.21.
9.22. Pry out the pinion seal. The outer pinion bearing
will come out when the seal is removed.
See Figure 9.22.
Figure 9.21
Spacer
Figure 9.22
Tapered
roller bearing
Seal
Bearing race
9.23. If the pinion bearings are suspect, drive the
outer races from the pinion bore as well. Keep
the races associated with the same bearings
that originally ran in them. See Figure 9.23.
9.24. To disassemble the differential, fixture the differ-
ential assembly in a soft-jaw vice.
9.25. Drive the roll pin from the cross pin that the miter
gears ride on using a flat-nosed drift.
See Figure 9.25.
9.26. When the roll pin is out, the cross pin can be
withdrawn through the side of the differential
housing.
Figure 9.23
Soft drift
Inner pinion race
Figure 9.25
Cross pin
Roll pin
Miter gears
