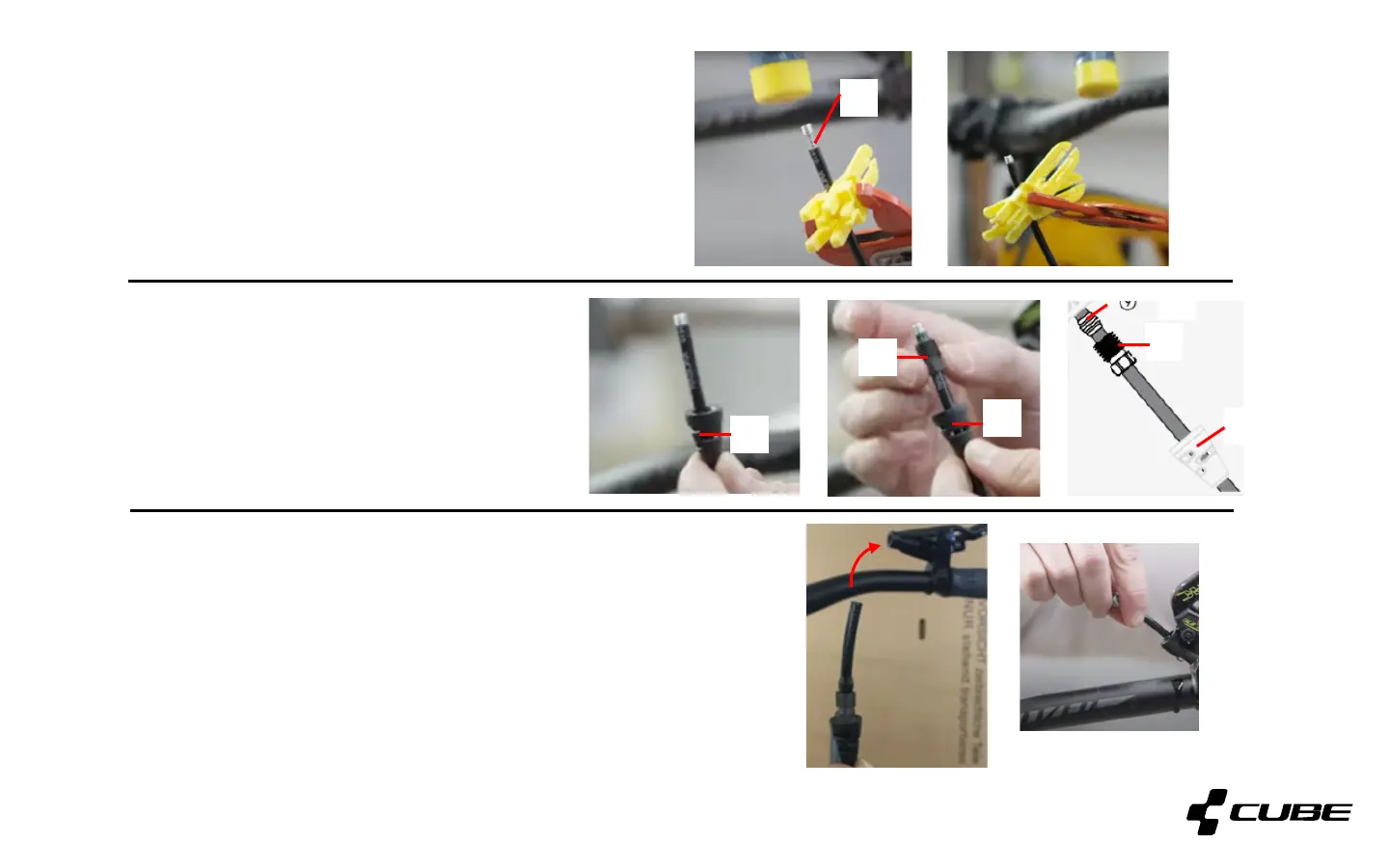

9. Insert barb (4) and tap in with a hammer
10. Barb must be flush with the hose
1
2
2
3
1
1
11. Push rubber cover (1), black
connection bolt with fine thread (2)
and olive (3) onto the hose
12. Insert brake hose into brake lever, holding connecting parts back
to begin with
13. Insert hose as far as possible and hold, then push in connecting
parts, keeping the hose pressed into the brake lever until the
connection bolt is tightened in the next step
