Cube Cargo Hybrid - Connect Steering Rod to Rear Headset

Version 2 / 09.22
20

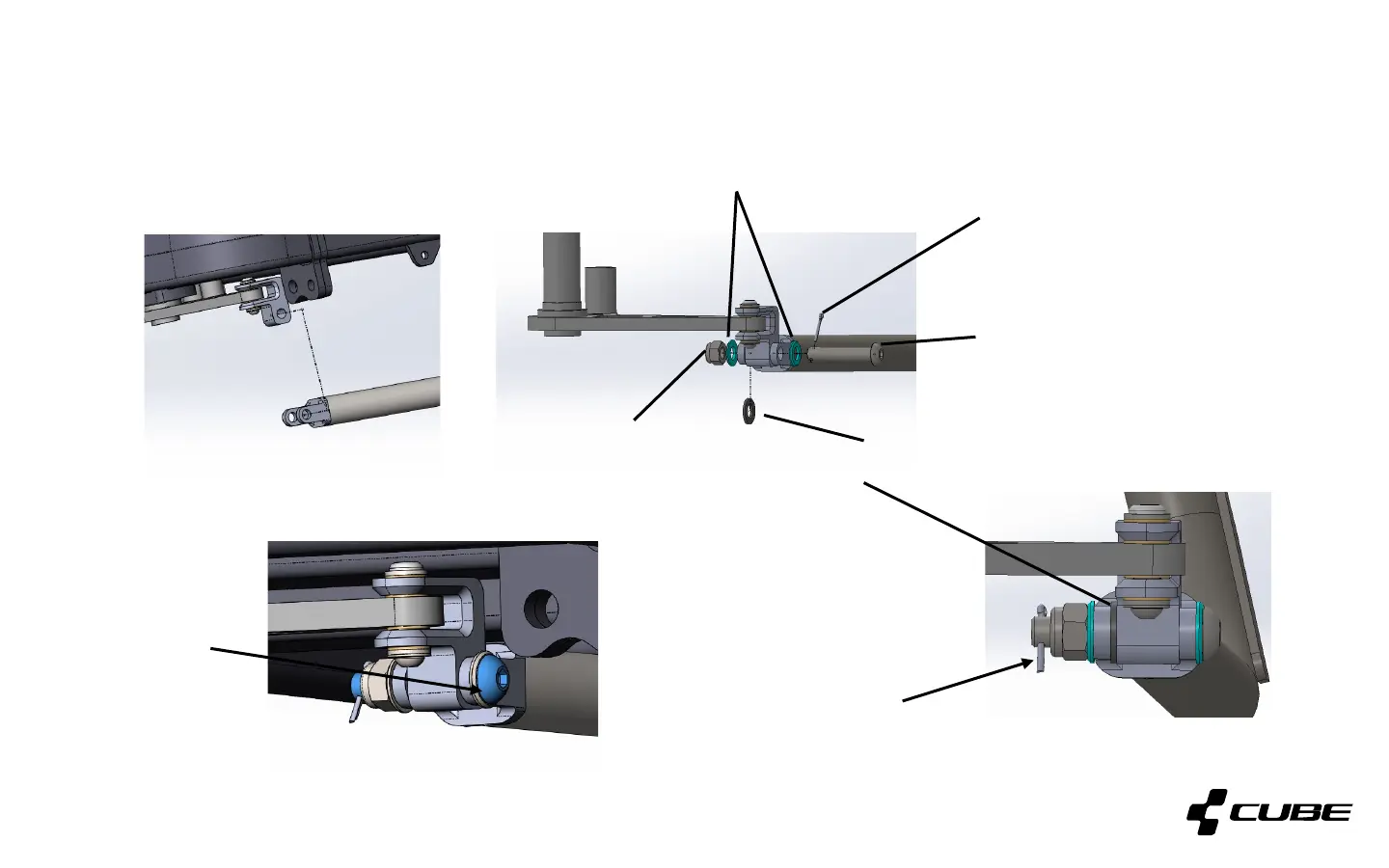

5.5.1 Connecting the steering rod to the rear headset
1. Tighten the srew
with split pin hole
ISO 7380 M10x55
with 5 Nm
2. Insert safety split
pin and bend ends
open
!
• 5 Nm
Screw with split pin hole
ISO7380 M10x55
Washer ISO 7091 M10x2 (2x)
Nut ISO 7040 M10
Split pin 2,5x20
Washer ISO 7091 M10x2 (1x)
