Version 2 / 09.22

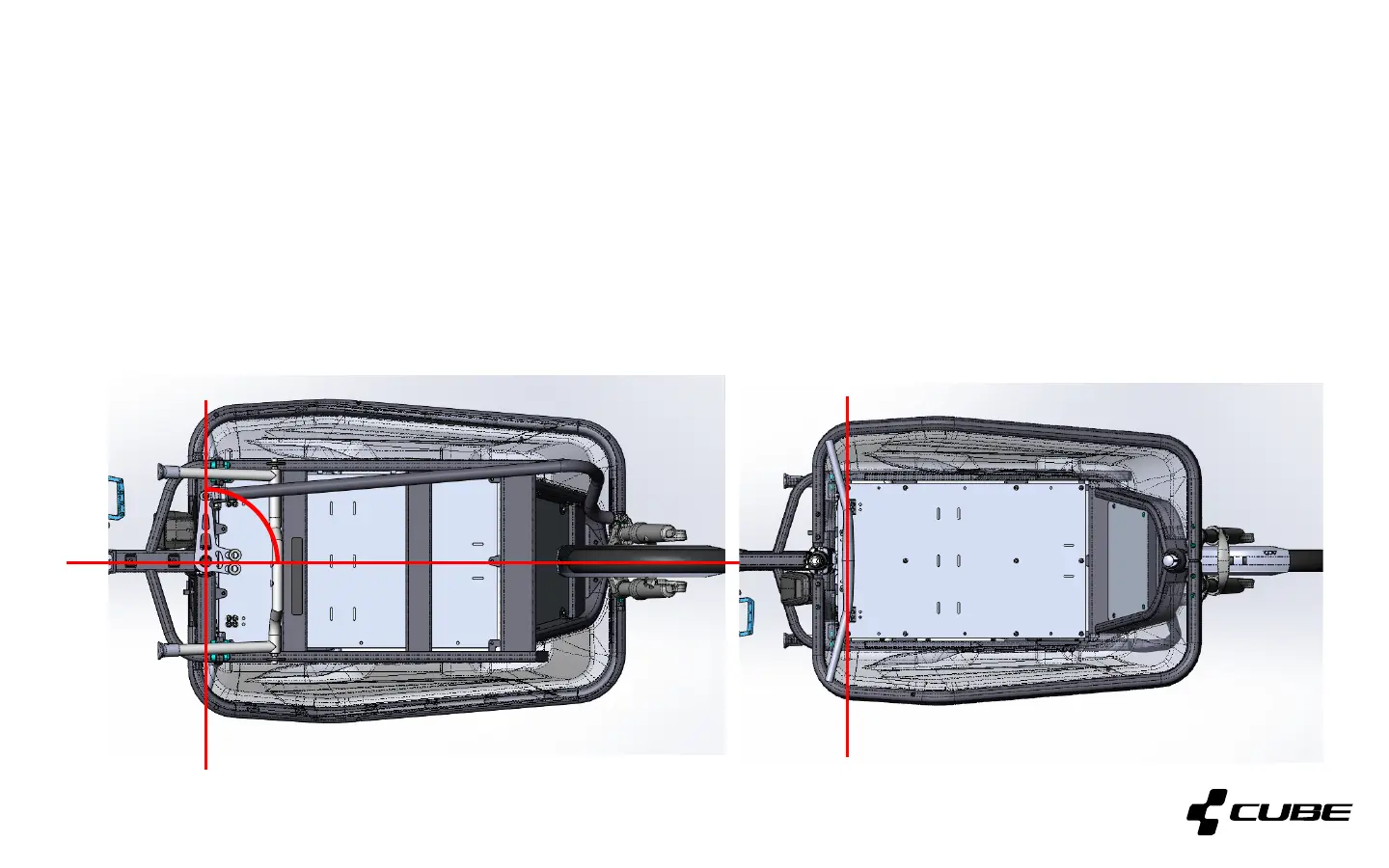

5.5.4 Aligning handlebars and front wheel
1. Front wheel in 0° position to the front in direction of travel
2. Set the handlebars perpendicular to the top tube
3. Lever plate of the steering shaft points perpendicularly to the median plane of the bike
4. In order to bring the handlebars into this position, adjust the stem accordingly, the Speedlifter does not have to
be adjusted. Tightening torque for fixing the stem: 6 Nm
90°
