CDR-3250/80 TECHNICAL MANUAL
3-2 Issue 2.2

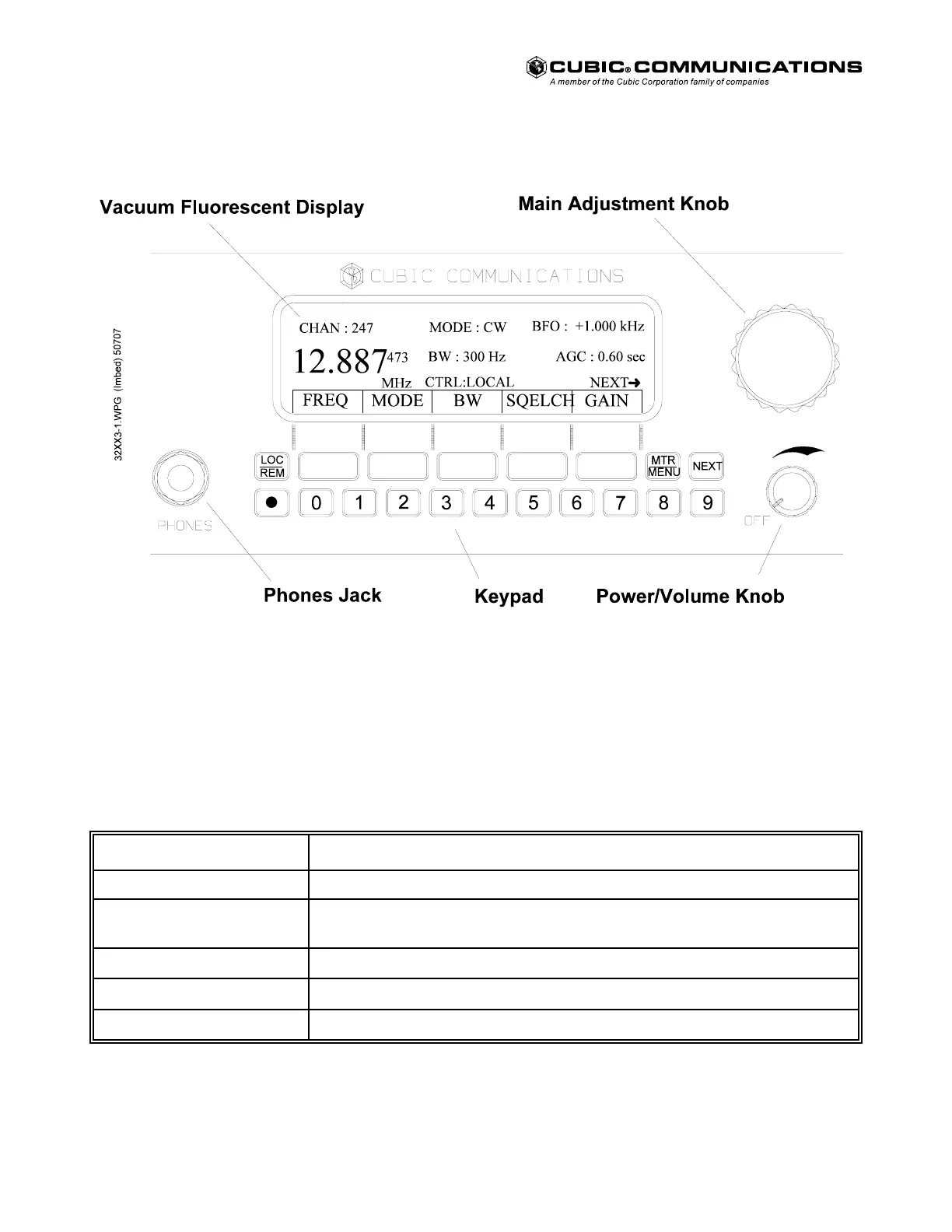

Figure 3-1 Front Panel Controls and Display.
Table 3-1 Front Panel Controls And Display.
Control Function
Vacuum Fluorescent Display Provides display of receiver parameters and other data to the operator.
Main Adjustment Knob Provides analog adjustment of parameters using optical digital encoder on shaft of
knob.
Power/Volume Knob Combination power on/off switch and volume control for PHONES jack
Keypad Provides data entry of receiver parameters.
PHONES Headphone jack
