34 Culligan® CSM Series Softeners
34 Cat. No. 01016370
To P3 Comm Port
on MVP Circuit Board, #1
CABLE 01016327
To P3 Comm Port
on MVP Circuit Board, #2
Additional communication
cable connections
are used when there
are 3 or more controls.
Connect end of
2nd-(01016327) cable
to this connector and
other end of cable
to P3 Comm Port on
3rd MVP Circuit Board.
PARALLEL

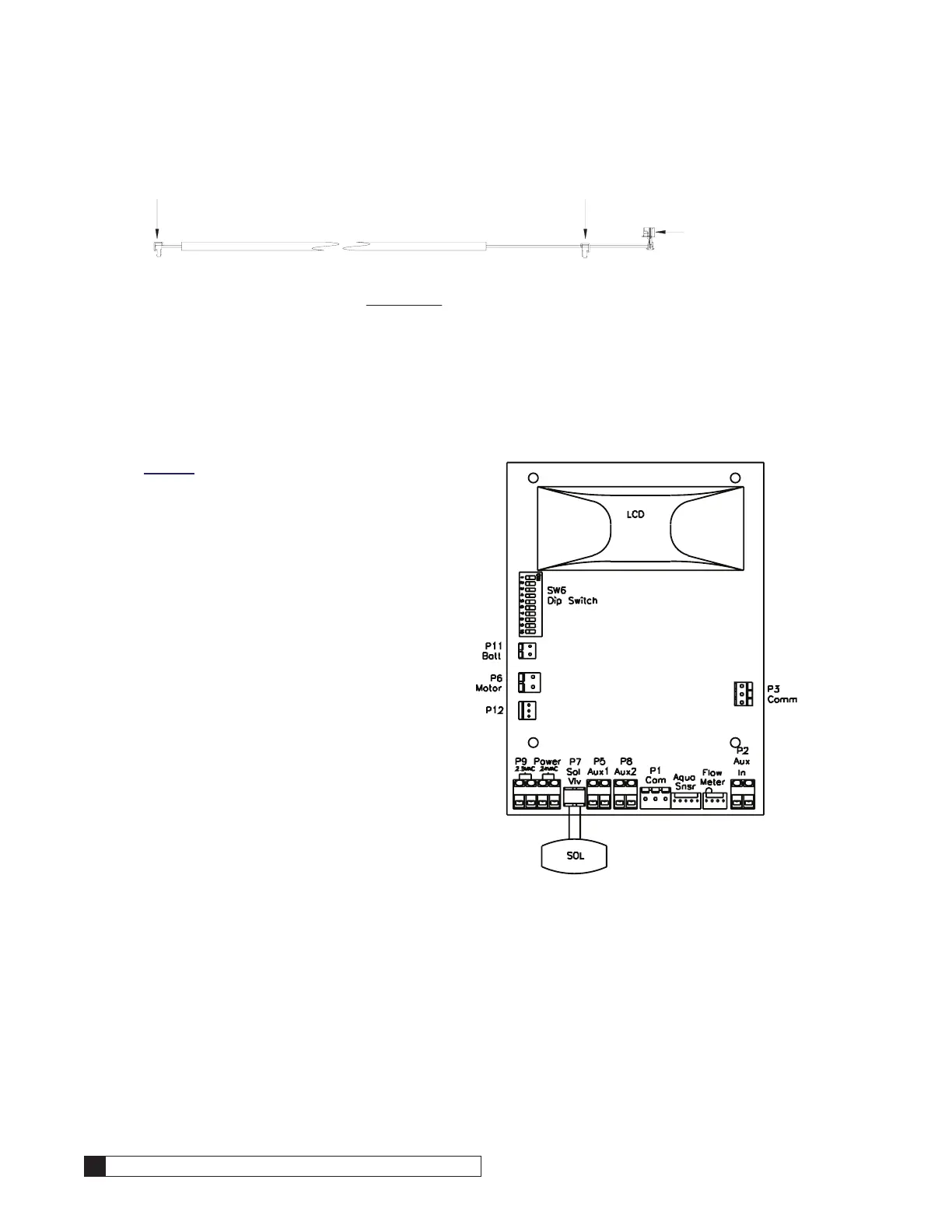

Figure 51. Parallel/Progressive Cable (P/N 01016327)
Blocking Solenoid -Alternating/Progressive Systems
Refer to page 26 for installation of the blocking
valve to the MVP controller enclosure.
The end connector on the solenoid valve wiring at-
taches to the Sol Vlv (P7) output connection on the
primary circuit board. See Figure 52.
On twin alternating systems, part number 01016369
duplex installation kit will be required. This kit con-
tains:
• One (1) interconnect cable with end connec-
tors.
• Two (2) solenoid valves with tubing and fittings.
Figure 52.
