Service and Repair 43
Cat. No. 01029343
CTM Piston Rebuild (Refer to page 69 for Kit Options)
Valve Removal and Disassembly
1. Having bypassed and depressurized (page 42) the system, disconnect from the valve; the pressure relief
valve (PRV), vacuum breaker, drain adapter and plumbing adapter.
2. Separate the plumbing at the unions, if necessary to remove the plumbing adapter from the valve.
3. Disconnect the tubing from the pilot valve at the inlet and drain ports on the valve.
4. Disconnect the wiring and remove the GBE controller, if mounted to the valve.
5. Remove the tank adapter clamp by loosening the bolts on both sides and lift the valve body from the tank using
the pry points (see Figure 68 on page 50)
6. Remove 16 #3 screws from the top manifold, then remove the top manifold by prying at the pry points. (see
Figure 55)

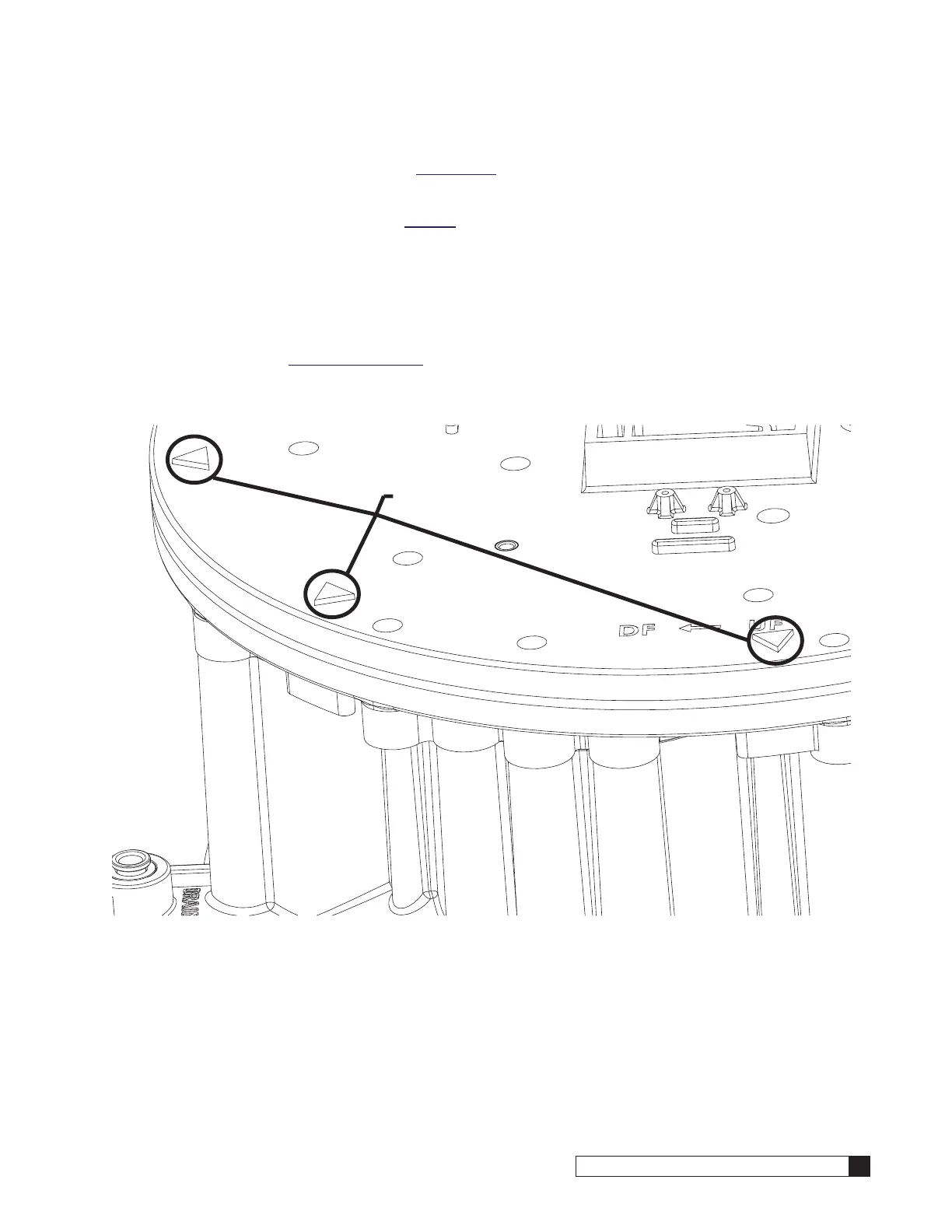

Figure 55.
Top Manifold Pry Points
