30 Culligan® Series E2 Plus Reverse Osmosis
30 Cat. No. 01023094
Feed Assembly, 208-230V/ 60 Hz, U.S.
11
7
2
3
6
8
14
13
12
15
4
9
5
1
10
11
6
3
9
9
4
4
10

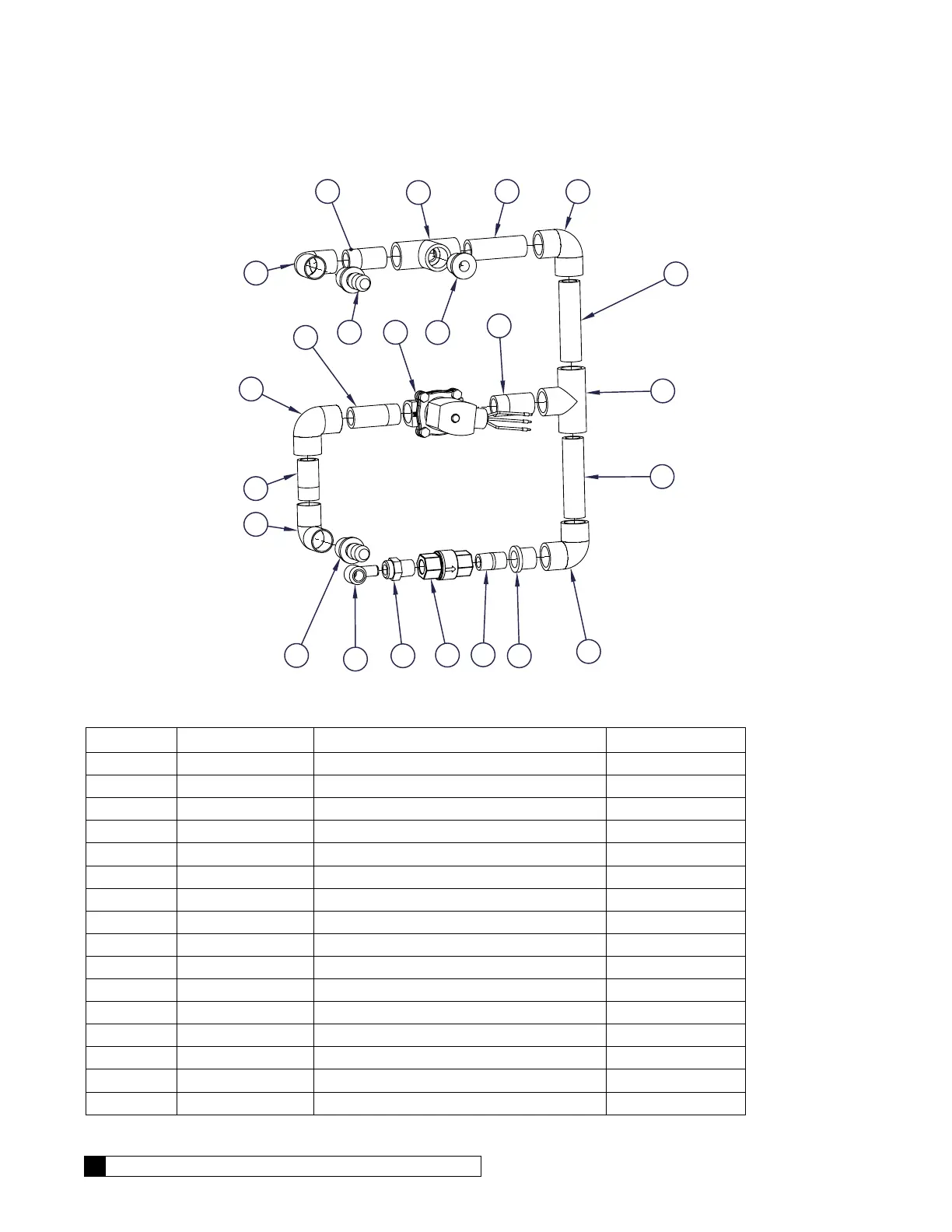

Figure 13. E2 Plus feed assembly.
Item Part No. Description Quantity
— 01022959 PIPING ASSEMBLY E2 Plus FEED
1 01017302 SOLENOID VALVE, 3/4",NC,220V/50–60HZ 1
2 — NIPPLE,3/4X3,PVC SCH.80,PE 1
3 — NIPPLE,3/4X4,PVC SCH.80,PE 2
4 — Nipple,3/4x2,PVC Sch.80,TOE 3
5 — Nipple,3/4x2-1/2,PVC Sch.80,TOE 1
6 — Tee,3/4",Socket,PVC Sch.80 2
7 — Bushing,3/4x1/4,TxT,PVC Sch.80 1
8 — Bushing,3/4x1/2,SxT,PVC Sch.80 1
9 — Elbow,3/4",SxS,PVC Sch.80 3
10 — Elbow,3/4",TxT,PVC Sch.80 2
11 — ADAPTER HOSE BARB 3/4" X 3/4" NPTE 2
12 — Fitting,Male Connector,1/2Tx1/2NPTE,PI 1
13 01021543 Check Valve 1
14 — Nipple,1/2xClose,PVC Sch.80,TBE 1
15 — Fitting,Stem Elbow,1/2Tx1/2Stem,PI 1
