Culligan E2 Plus Series - Product Assembly, 208-230 V; 60 Hz, U.S.

E2 Plus RO Parts Diagrams and Lists 31
Cat. No. 01023094
Product Assembly, 208-230V/ 60 Hz, U.S.
1
1
3
5
4
1
5

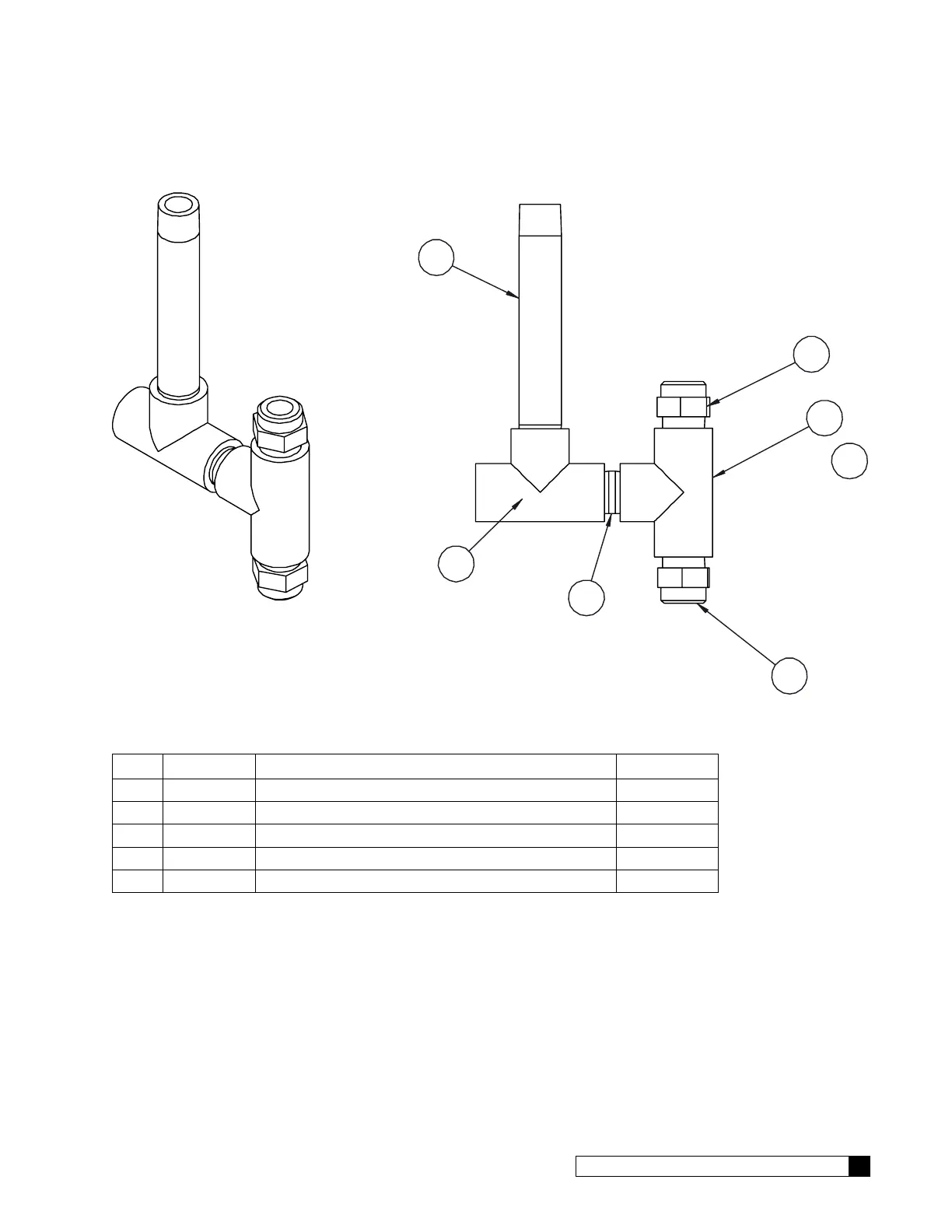

Figure 14. E2 Plus product piping assembly.
Item Part No. Description Quantity
— 01021941 Piping Assembly Product
1 — Tee, Threaded, .50 PVC Sch.80, NPT 2
3
— Nipple,1/2xClose,PVC Sch.80,TBE
1
4 — Nipple,1/2x5,PVC Sch.80,TBE 1
5 — Fitting,Male Adaptor,1/2" 2
