Culligan E2 Plus Series - Membrane Assembly, E2-2 Plus and E2-4 Plus, 208-230 V; 60 Hz, U.S.

34 Culligan® Series E2 Plus Reverse Osmosis
34 Cat. No. 01023094
Membrane Assembly, E2-2 Plus and E2-4 Plus, 208-230V/ 60 Hz, U.S.
This assembly is used on the E2-2 and E2-4. It is mounted on the right side (facing unit) of an E2-4.
2
1
20
6
3
3
9
7
14
15
16
Bottom View
7
5
8
9
11
12
10
13
9
10
12
4
5
8
11
7
Top View

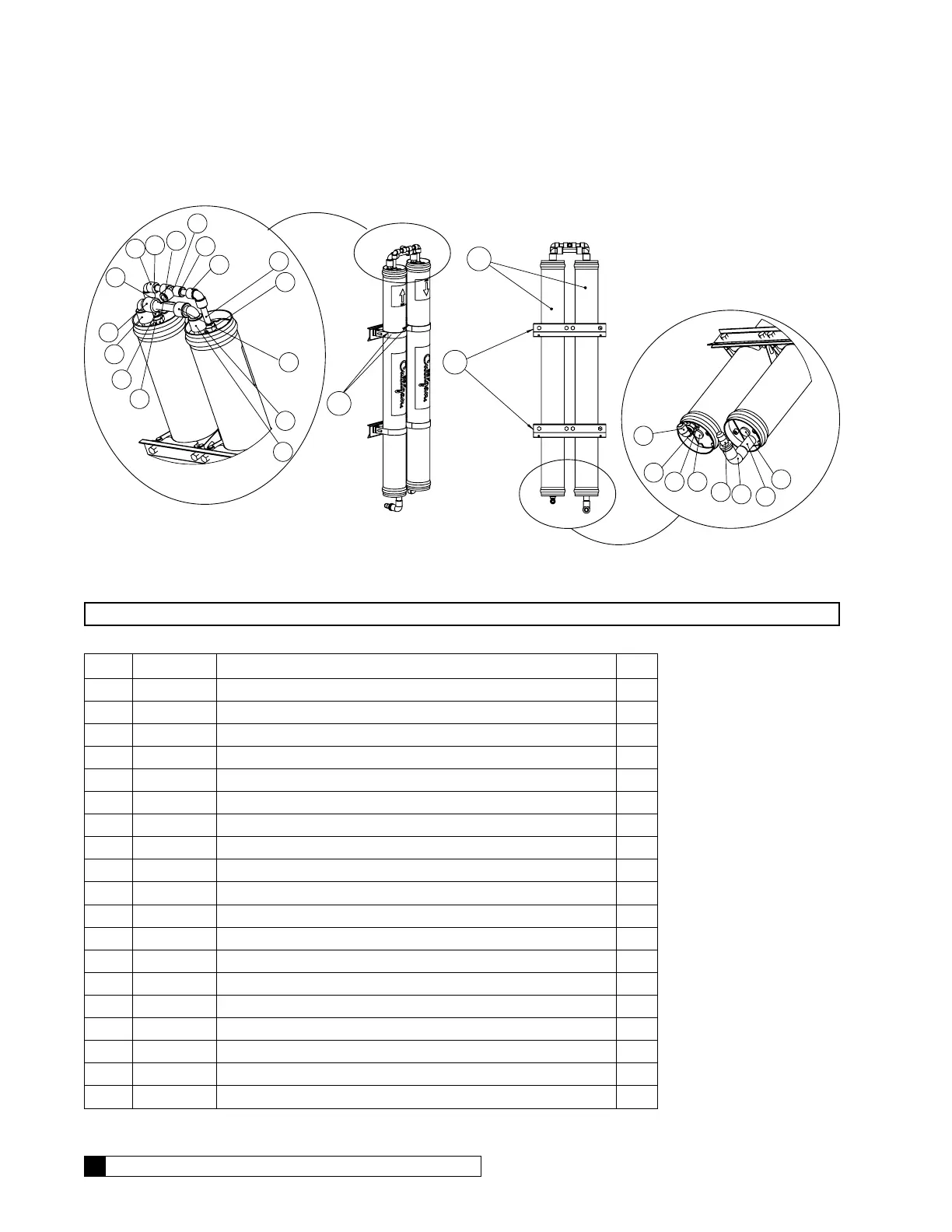

Figure 17. E2 Plus Membrane Assembly.
NOTE Product water exits center holes in end cap. Feed and concentrate enter the outer holes.
Item Part No. Description Qty
— 01021927 Filter Array, 2-1
1 — Mount Filter, 2 2
2 01021540 Housing, Filter, FRP 4" End Port 2
3 — Plug, 1/2", Threaded, PVC Sch.80 2
4 01021090 Pipe, PEX, 1/2" 1
5 — Fitting, PEX, Stem Elbow, 1/2" 2
6 — Fitting, Stem Elbow, 1/2Tx1/2Stem, PI 1
7 — Bushing, 3/4x1/2, TxT, PVC Sch. 80 3
8 — Fitting, PEX, Male Connector, 1/2" 2
9 — Fitting, Male Connector, 1/2Tx1/2NPTE, PI 3
10/11 00901801 Tubing, 1/2", PE, Natural —
12 — Fitting, Union Elbow, 1/2T, PI 2
13 — Fitting, Union Tee, 1/2T, PI 1
14 — .75 x .75 NPT Fitting, Barbed 1
15 — Elbow, 3/4", TxT, PVC Sch.80 1
16 — Nipple, 3/4x3, PVC Sch.80, TBE 1
18 — Decal, Flow Arrow 2
19 — Decal, Culligan Script 2
20 01024102 Saddle Strap Kit (2 straps, 2 saddles, 4 screws) 2
