E2 Plus RO Parts Diagrams and Lists 35
Cat. No. 01023094
Membrane Assembly, E2-4 Plus and E2-5 Plus, 208-230V/ 60 Hz, U.S.
This assembly is used on the E2-4 & E2-5 as the left bank (when facing unit) of membranes.
7
Bottom View
11
9
18
11
10
12
9
11
10
12
Top View
456
9
4
5
6
6
10
8
6
8
10
11
7

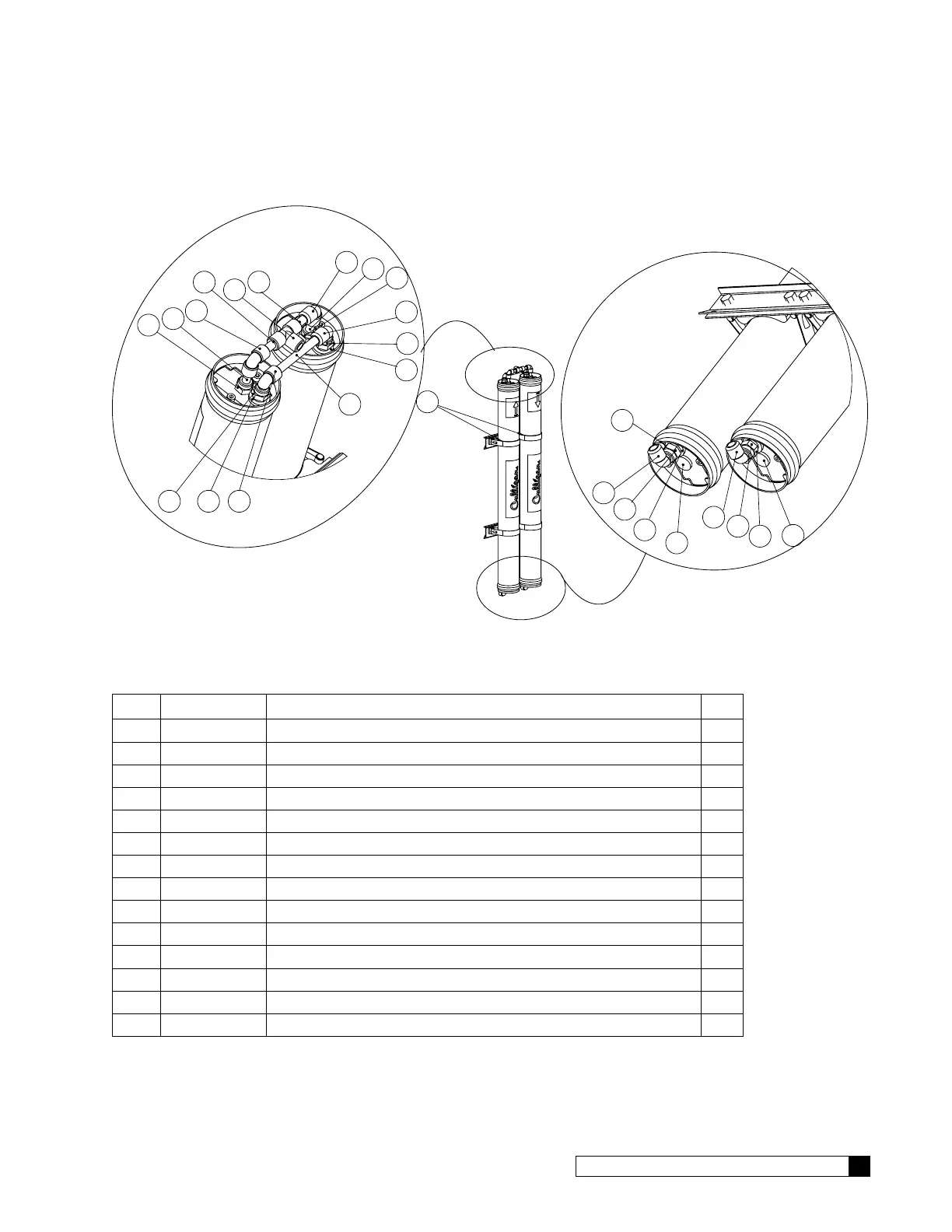

Figure 18. E2-4 or E2-5 Plus Membrane Assembly.
Item Part No. Description Qty
— 01021963 Filter Array, 2-2
1 — Mount Filter 2 2
2 01021540 Housing, Filter, FRP 4" End Port 2
3 — Plug, 1/2", Threaded, PVC Sch.80 2
4 — Fitting, Stem Elbow, 1/2Tx1/2 Stem, PI 4
5 — Bushing, 3/4x1/2, TxT, PVC Sch.80 4
6 — Fitting, Male Connector, 1/2Tx1/2NPTE, PI 6
7 00901801 Tubing, 1/2", PE, Natural —
10 — Fitting, Union Elbow, 1/2T, PI 2
11 — Fitting, Union Tee, 1/2T, PI 1
12 01008007 Element RO 4" Dia. x 40" 2
13 — Decal, Flow Arrow 2
14 — Decal, Culligan Script 2
15 01024102 Saddle Strap Kit (2 straps, 2 saddles, 4 screws) 2
