36 Culligan® Series E2 Plus Reverse Osmosis
36 Cat. No. 01023094
Membrane Assembly, E2-3 Plus, E2-5 Plus, and E2-6 Plus, 208-230V/ 60
Hz, U.S.
This assembly is used on the E2-3 Plus, E2-5 Plus, and E2-6 Plus. It is mounted on the right side (when facing unit) of the
E2-5 Plus and E2-6 Plus.
21
2
1
3
6
7
7
5
4
5
3
3
15
16
6
17
Bottom View
Top View
6
7
13
9
5
12
4
11
10
13
11
10
5
14
12
13
9
6
8
9
9
6
7

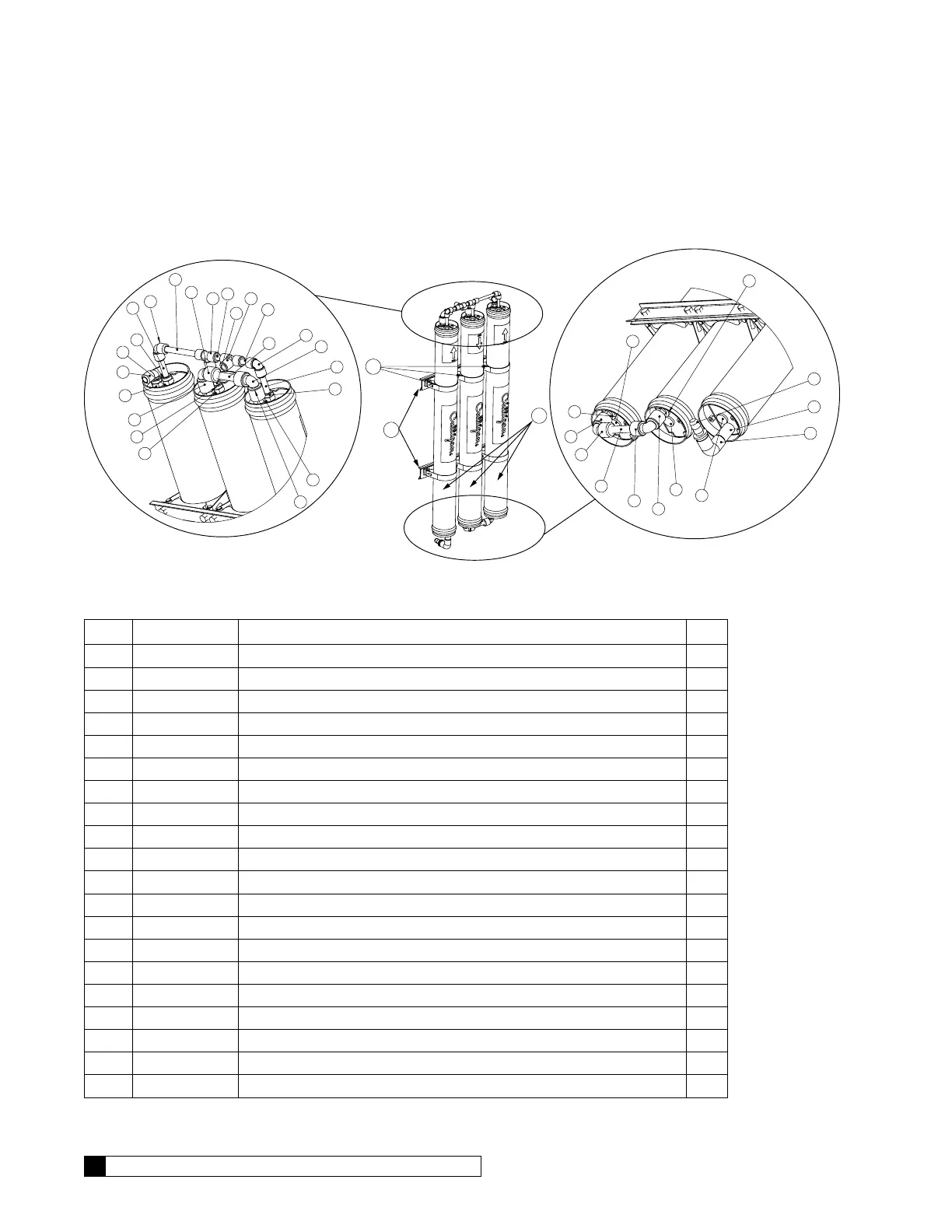

Figure 19. E2-3, E2-5 or E2-6 Plus Membrane Assembly.
Item Part No. Description Qty
— 01021928 Filter Array, 3-1
1 — Mount Filter 3 2
2 01021540 Housing, Filter, FRP 4" End Port 3
3 — Plug, 1/2", Threaded, PVC Sch.80 3
4 01021090 Pipe, PEX, 1/2" —
5 — Fitting, PEX, Stem Elbow, 1/2" 4
6 — Bushing, 3/4x1/2, Txt, PVC Sch.80 5
7 — Fitting, PEX, Male Connector, 1/2" 4
8 — Fitting, Stem Elbow, 1/2Tx1/2Stem, PI 1
9 — Fitting, Male Connector, 1/2Tx1/2NPTE, PI 4
10 00901801 Tubing, 1/2", PE, Natural —
11 — Fitting, Union Tee, 1/2T, PI 2
12 — Fitting, Union Elbow, 1/2T, PI 2
15 — Adapter, Hose Barb, 3/4"x3/4" NPTE 1
16 — Elbow, 3/4", TxT, PVC Sch.80 1
17 — Nipple, 3/4x3, PVC Sch.80 TBE 1
18 01008007 Element RO, 4" Dia x 40" 3
19 — Decal, Culligan Script 3
20 — Decal, Flow Arrow 3
21 01024102 Saddle Strap Kit (2 straps, 2 saddles, 4 screws) 3
