15
01021076
NOTE The clamp and valve will be able to rotate on the tank until pressure is
applied.
Add O-Rings

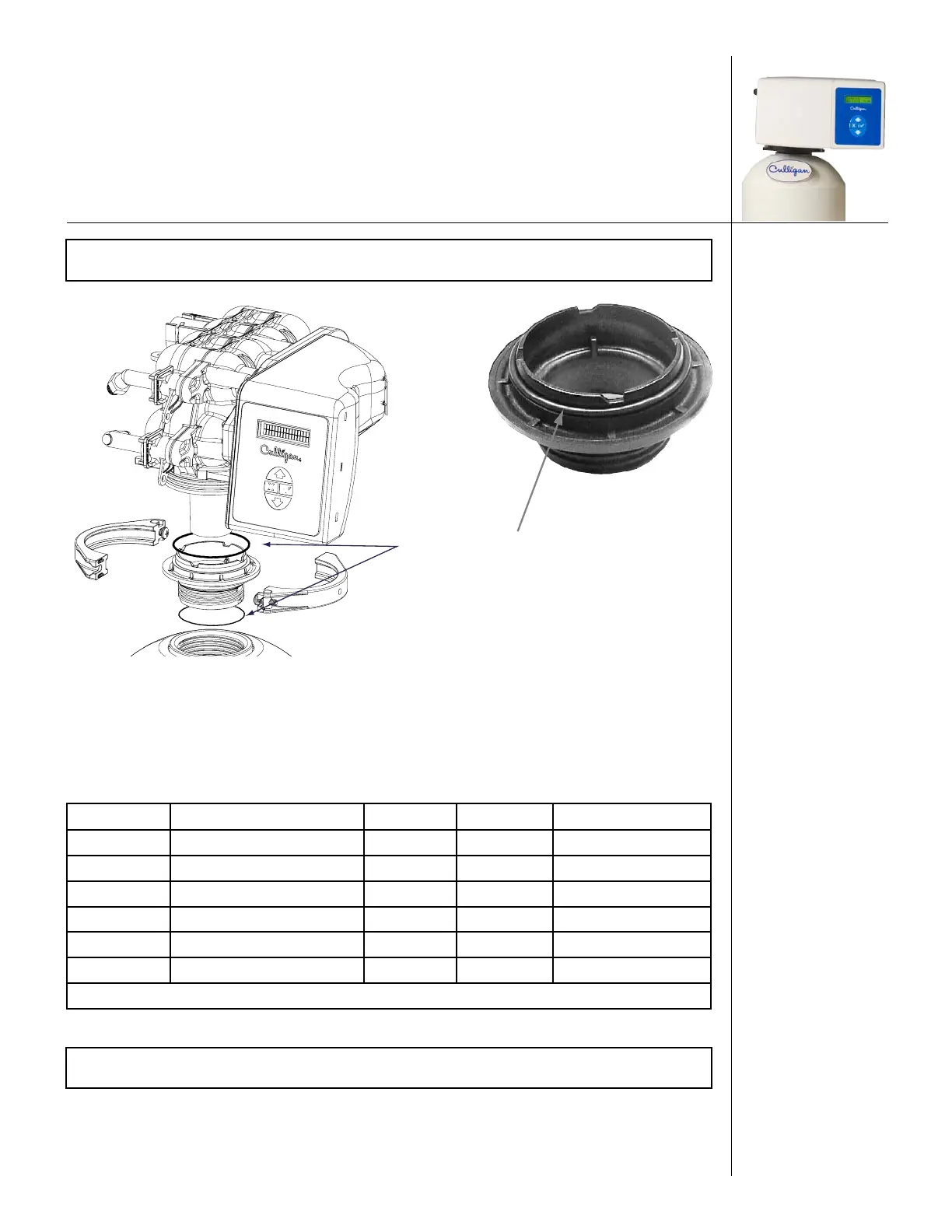

Figure 4. Mounting the control valve.
O-Ring
Figure 5. Valve adapter O-ring.
Backwash Flow Control, Eductor Nozzle—Throat
Use the recommended backwash flow control, eductor nozzle, and eductor throat for various size tanks.
See Table 2.
Refer to Figure 6 through Figure 9 and instructions below for changing the backwash flow control, eductor
nozzle, and eductor throat.
Unit Backwash Flow Nozzle Throat Brine Refill Flow
9" Upflow 2.5–3.1 gpm (#2 Brown)* Blue* Gray* 0.45 gpm
10" Upflow 2.5–3.1 gpm (#2 Brown)* Blue* White* 0.45 gpm
9" Downflow 2.5–3.1 gpm (#2 Brown)* Blue* Light Brown* 0.45 gpm
10" Downflow 2.5–3.1 gpm (#2 Brown)* Beige Light Brown* 0.45 gpm
12" Downflow 3.0–3.2 gpm (#3 Green) Beige Light Brown 0.8 gpm
14" Downflow 5.3 gpm (Black) Green Blue 0.8 gpm
* Shipped assembled inside the control standard from factory
Table 2. Flow Restrictors.
NOTE For upflow models, the backwash and fast rinse default times are set at five
(5) minutes.
