Preparation

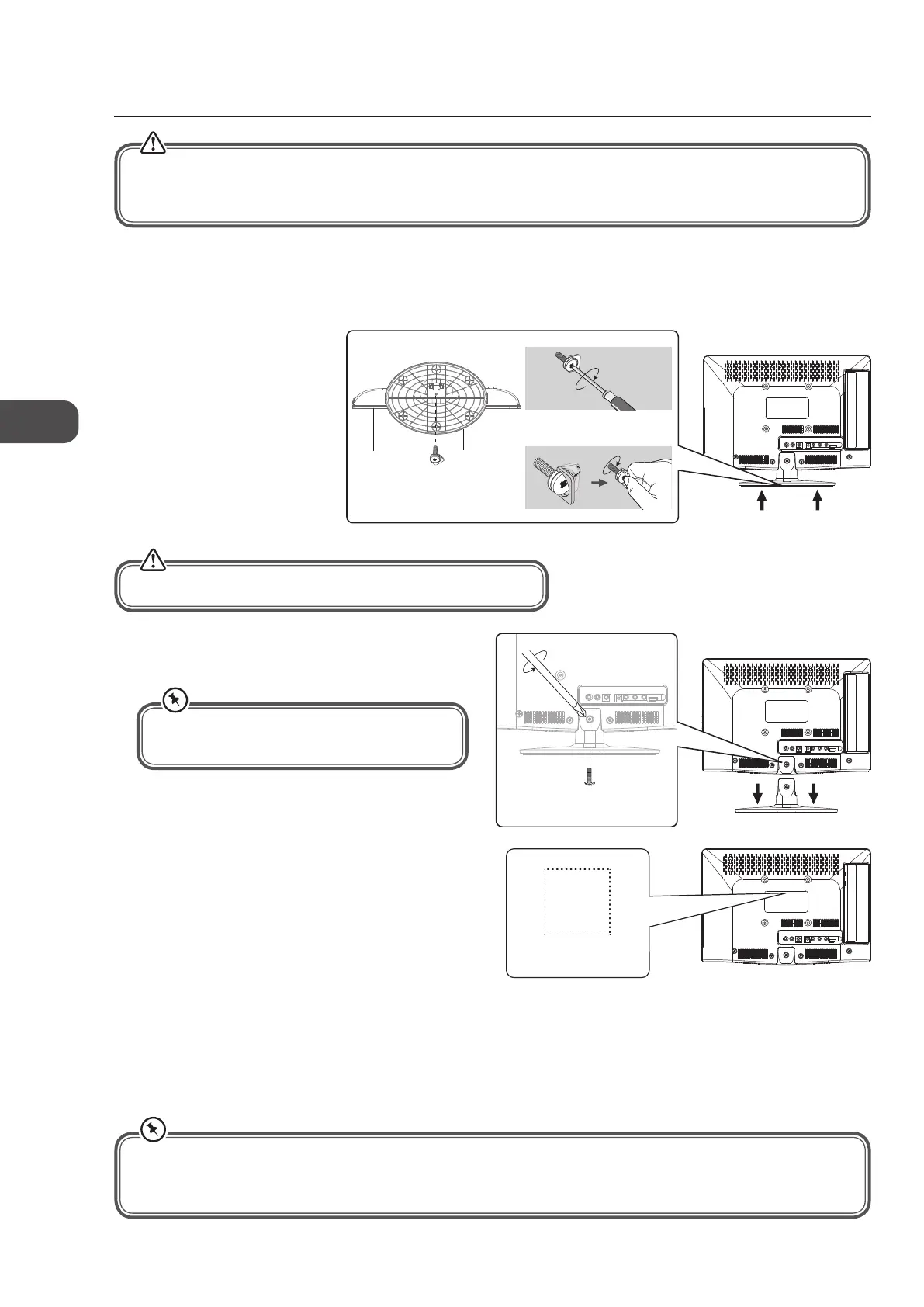

4. To remove the stand assembly, untighten the screw
holding the stand assembly to the rear of the TV. Slide
the stand assembly out.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or
thick piece of foam) is placed beneath the screen.
3. To install the base stand, align
the screw hole and then secure
the base stand by hand or
using a screwdriver with the
provided 1 screw.
5. Mounting on the wall. This TV is designed to be
wall-mounted with a standard 100 mm x 100 mm
mounting kit (sold separately) designed for flat-panel
TVs. Mount this TV according to the instructions
included in the mounting kit. Due to space restrictions,
we recommend that you make all connections (refer to
page 13-15 and page 42 for details) before mounting
on to the wall.
Installing / Removing the Base Stand
100 mm
100 mm
Four mounting holes
(size M4x12 screw)
unscrew
Screw B x 1
(P.N.: 20912223101)
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
screw
screw
OR
TV Front
Base Stand
Front
Screw A x 1
(P.N.: 20912223101)
Screw B x 1
(P.N.: 209020412B1)
unscrew
Remove the stand assembly before mounting the TV onto the wall.
Keep all the spare screws should you want to use
the stand assembly option.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK Customer Contact Centre
is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
