Preparation

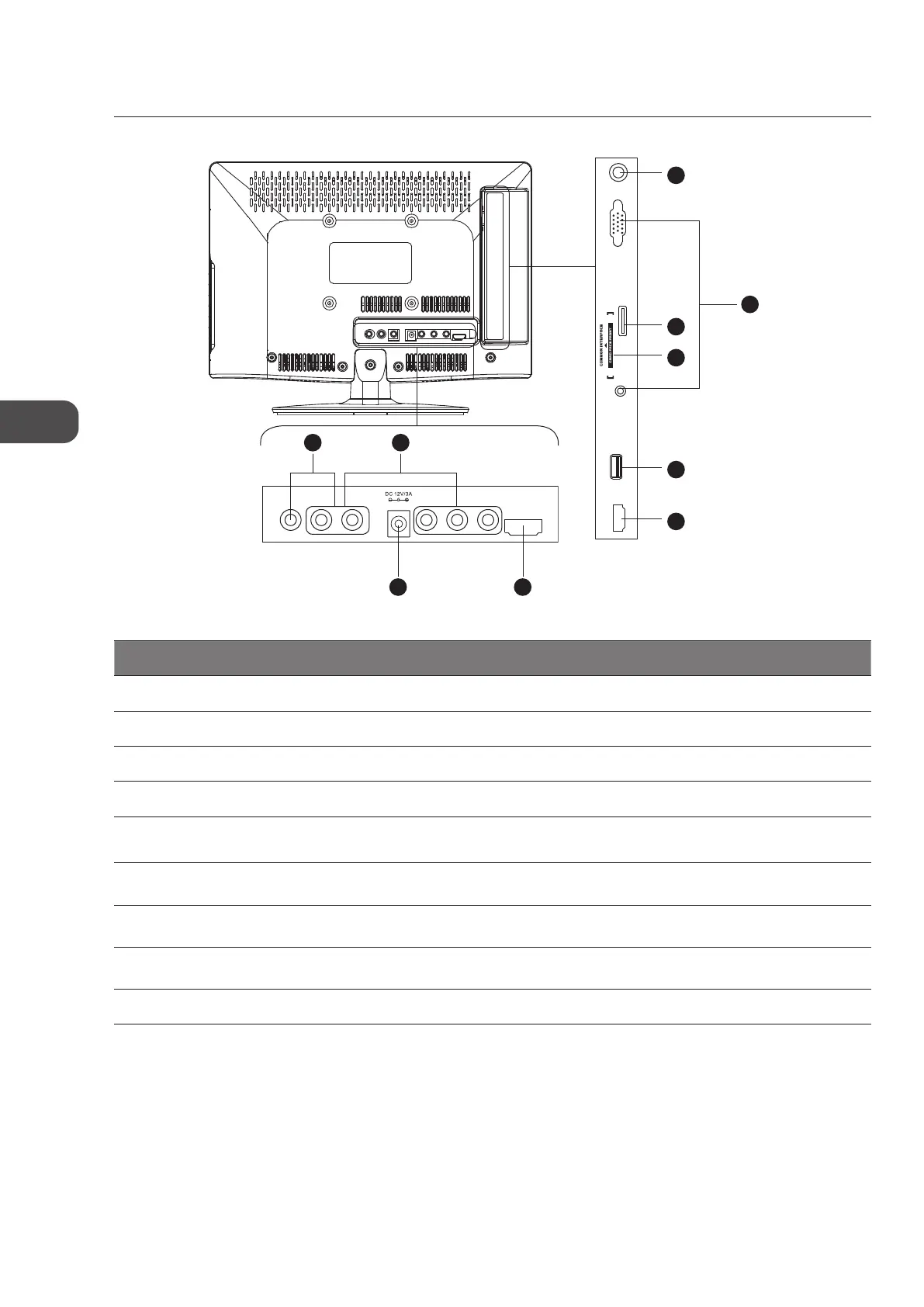

Rear View and Sockets
HDMI1
USB
PC AUDIO
PC IN RF
SCART
Socket Description
1 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
2 PC AUDIO / PC AUDIO Connects to a computer or other devices with a VGA interface.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 23 for details.)
5 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
6 HDMI1 / HDMI2
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
7 VIDEO / AUDIO (L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
8 Y, PB, PR / AUDIO (L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 Mains Adapter Connects the mains adapter to the mains socket.
1
2
3
5
6
4
69
87
VIDEO L R Y
Pb
Pr
HDMI2
