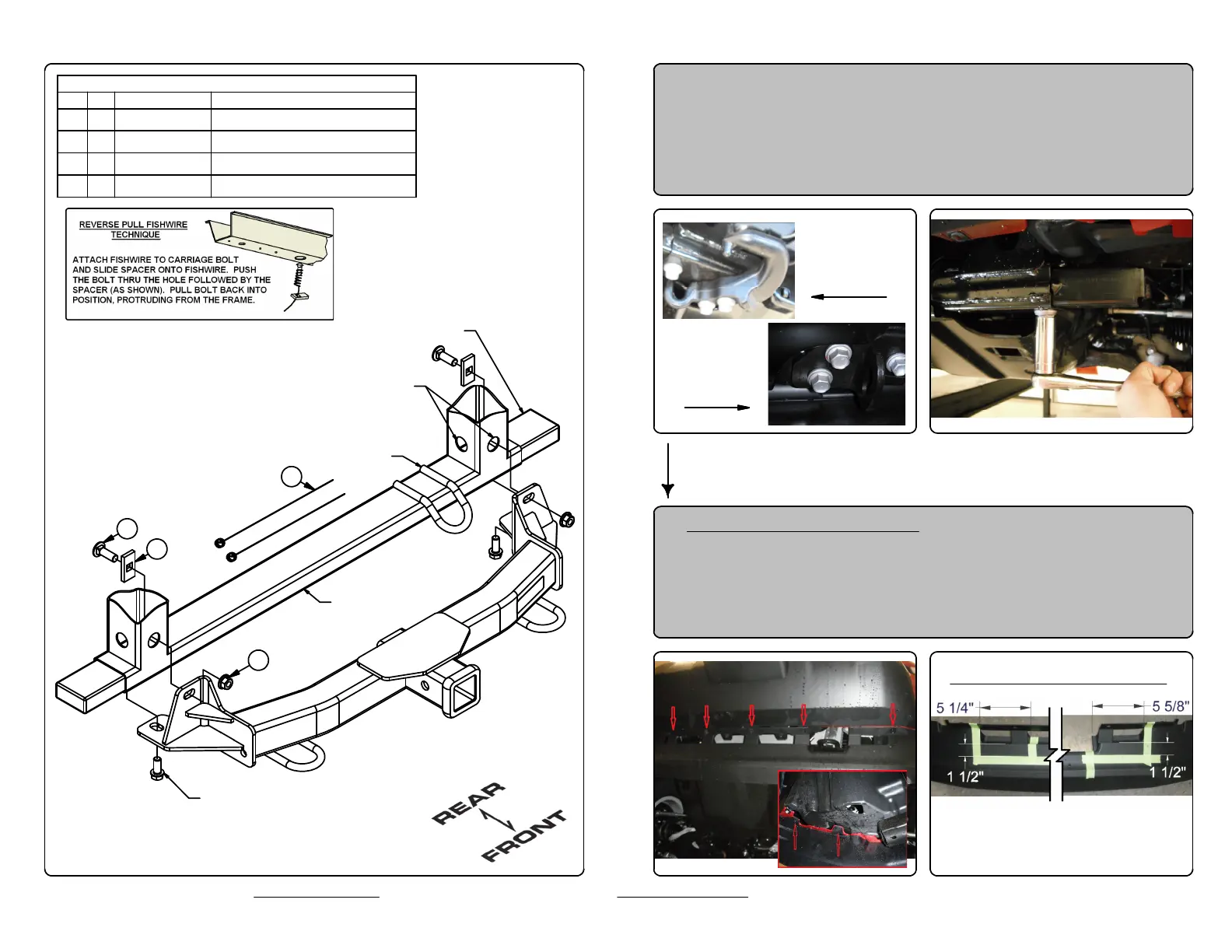

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List
DESCRIPTIONPART NUMBERQTYITEM
NUT,SER-FLANGE,1/2-13 UNC,GRD8,YZ20-0006221
BOLT,CAR,1/2-13 UNC,1-1/2,GRD8,YZ
10-1028722
.250 x 1.00 x 2.00" SQUARE HOLE SPACERCM-SP1223
1/2" FISHWIRE1_2 FISHWIRE2
4
1. Remove tow loop from passenger side of the
vehicle by removing (2) M12 bolts with a 17mm
socket. Remove the (2) M12 bolts that attach
the cross beam inserts in the cross beam and
save for later use.
2. Non-TRD Offroad models: Remove (11) screws from the
lower air dam using a 10mm socket and either return to
owner or trim as shown in the diagram below.
NOTE: The skid shield on the TRD PRO model will need to
be trimmed to allow clearance for the hitch.
EXISTING 12mm BOLT
(BOTH SIDES)
WELDED RECOVERY LOOP
3
2
1
4
EXISTING ACCESS HOLES
(BOTH SIDES)
CROSS BEAM INSERT
CROSS BEAM
TRD
OFFROAD
NON-TRD
OFFROAD
PASSENGER
SIDE
DRIVER
SIDE
FASCIA TRIM DIAGRAM
