PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
90
41
45
HITCH WEIGHT:
LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
Scan
for more
information
13383
4,000
400
CHRYSLER PACIFICA
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT
WARNING: *** DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY. ***
FOR MORE INFORMATION LOG ONTO WWW.CURTMFG.COM & FOR HELPFUL TOWING TIPS LOG ONTO WWW.HITCHINFO.COM
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-877-287-8634
8/5/2020
5,000
500
PAGE 1 of 2

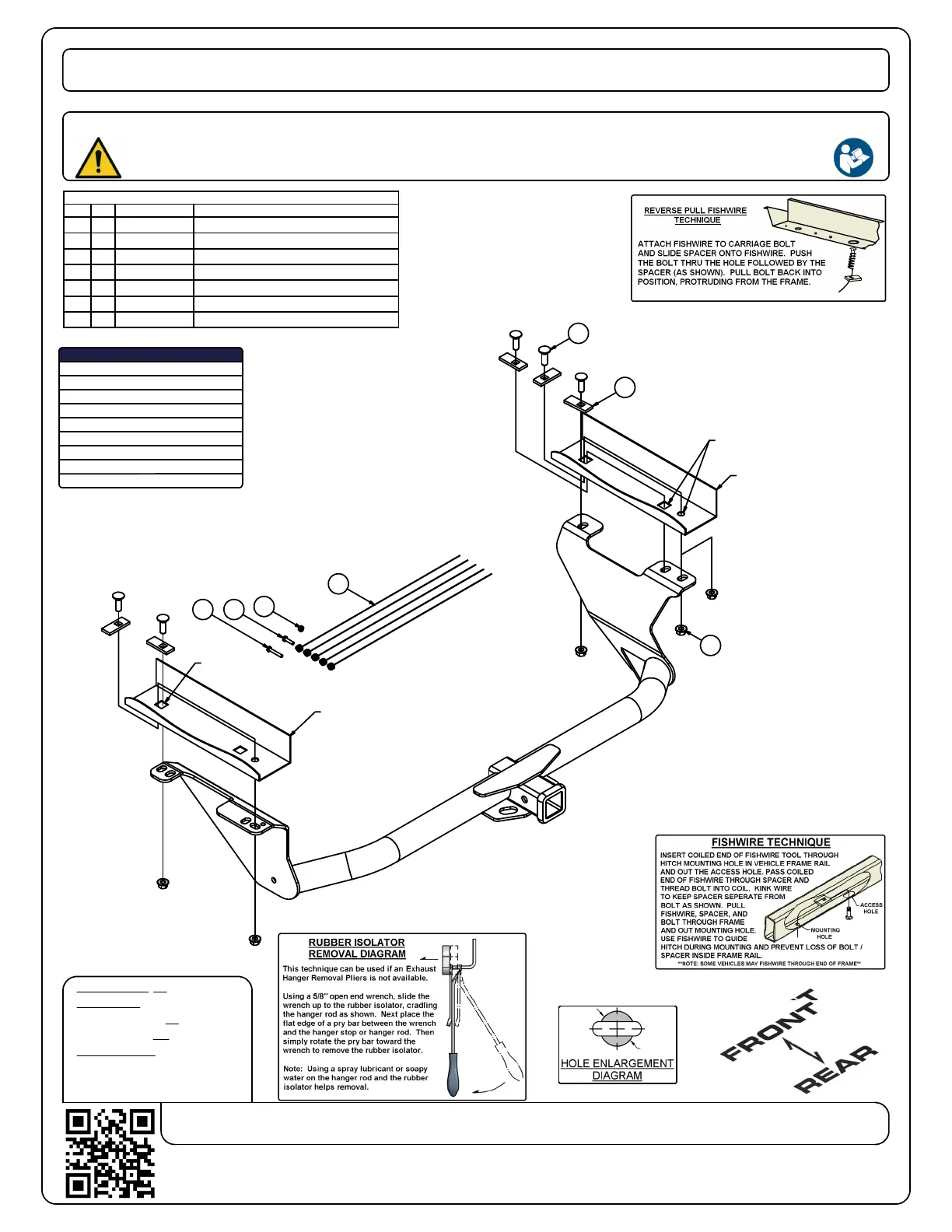

Parts List
DESCRIPTIONPART NUMBERQTYITEM
BOLT,CAR,1/2-13 UNC,1-1/2,GRD8,YZ
10-1028751
.250 x 1.00 x 2.50" SQUARE HOLE SPACERCM-SP10
5
2
NUT, SER-FLANGE,1/2-13 UNC,GRD8,YZ20-00062
5
3
1/2" FISHWIRE1_2 FISHWIRE
5
4
TAP BOLT10-105131
5
1/4-20 x 1.00 HEX BOLT10-1042416
HEX NUT20-0019217
5
6
7
ACCESS HOLE
(BOTH SIDES)
EXISTING HOLES
(BOTH SIDES)
PASSENGER SIDE
FRAME RAIL
DRIVER SIDE
FRAME RAIL
4
1
2
3
TOOLS REQUIRED
RATCHET
TORQUE WRENCH
6" SOCKET EXTENSION
8mm, 10mm, 3/4" SOCKETS
UNIVERSAL JOINT SOCKET
SCREWDRIVER
MASKING TAPE
AVIATION SHEARS
DIE GRINDER
-LOWER EXHAUST
-REMOVE HEAT SHIELD(S)
-TRIM HEAT SHIELD
-TRIM UNDERBODY PANEL
1"Ø
