MISCELLANEOUS MENU
PARAMETER ALLOWABLE RANGE DESCRIPTION
Sleep 0–60 minutes Sets the delay time between the last throttle request or serial communication
and when the controller goes into sleep mode. Setting the delay to zero
disables the sleep function.
Reset Drive Time On/Off The controller’s hourmeter logs the total drive time since the last reset; this
record is accessible through the Monitor menu. Setting this parameter On
zeroes the hourmeter and starts a new log; this is typically done when the
vehicle is serviced. Reset Drive Time is automatically set to Off after the
hourmeter is reset.
Emergency Stop On/Off Available only with 1212P.
Denes how the vehicle will respond when the emergency stop button is
pressed.
On = The EM brake will be engaged rapidly when the emergency stop
button is pressed; the battery is disconnected and the vehicle will
stop abruptly. The emergency stop switch with dual contacts is
strongly recommended, otherwise, the function could be ineffective
for some downhill applications, and this MUST be evaluated by the
OEM.
Off = When the emergency stop button is pressed, the battery is
disconnected and the vehicle will decelerate for a short distance
before it fully stops.
Pump SRO On/Off Available only with 1212P.
Pin J1-9 can be used to check the status of lift/lower switches that are wired
to KSI; if these switches are closed before KSI is turned on, the controller will
issue a Pump SRO Fault. Wiring is shown in Figure 9.
To enable this feature, set the Pump SRO parameter On.
The Lift Lockout Output is affected by both the External Lift Lockout
parameter (see BDI menu) and the Pump SRO parameter as follows.
PARAMETER SETTINGS
LIFT LOCKOUT OUTPUT
TRIGGERED BY
PUMP SRO EXTERNAL LIFT LOCKOUT
ON — Pump SRO Fault or Internal BDI
Off
ON Lift Lockout input from 906
Off Internal BDI
1 2 3 4 5 6 7
8 9 10 11 12 13 14
(Pin 9)
KSI
PUMP CONTACTOR COIL
LIFT SWITCH
B-
LOWER VALVE COIL
LOWER SWITCH
VRRM ≥100 V,
IF ≥1A
1.5MΩ / 0.25 W
R
❉
❉

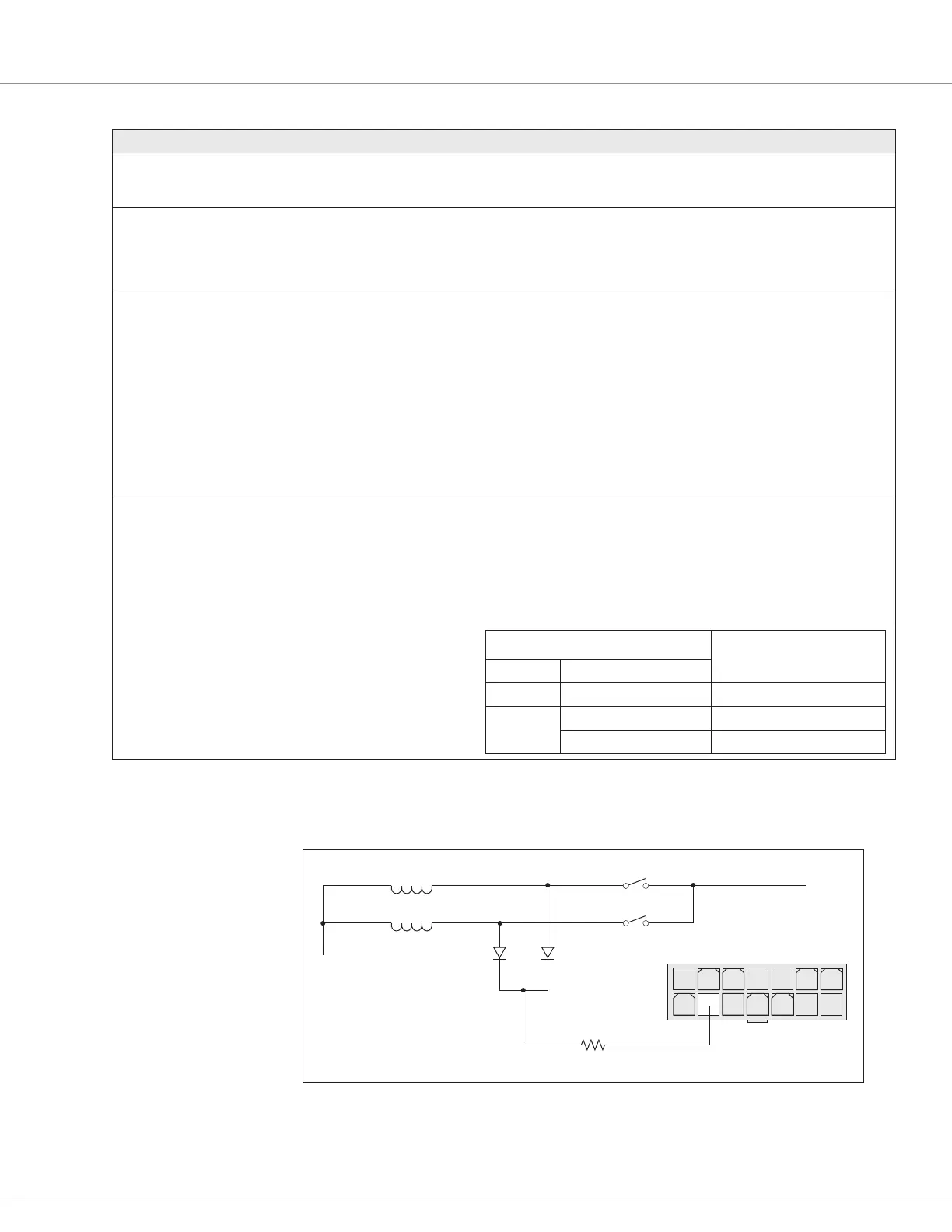

Figure 9
Wiring for Pump SRO.
