pg. 1
Return to TOC 1212 & 1212P Manual - Sep 2019
1 — OVERVIEW
1 — OVERVIEW
e Curtis 1212 and 1212P motor speed controllers provide precise and smooth control of permanent
magnet drive motors for battery powered vehicles. e 1212 is designed for use in low power DME
applications such as micro-scooters, mini-scooters, foldable scooters, and low-end personal mobility
vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its
programmable options also allow it to be used on any low power permanent magnet motor application.
e 1212P is designed for use in pallet truck applications.
e 1212/1212P controllers are fully programmable by means of a Curtis programming device. Use
of the programmer oers diagnostic and test capability as well as configuration exibility.

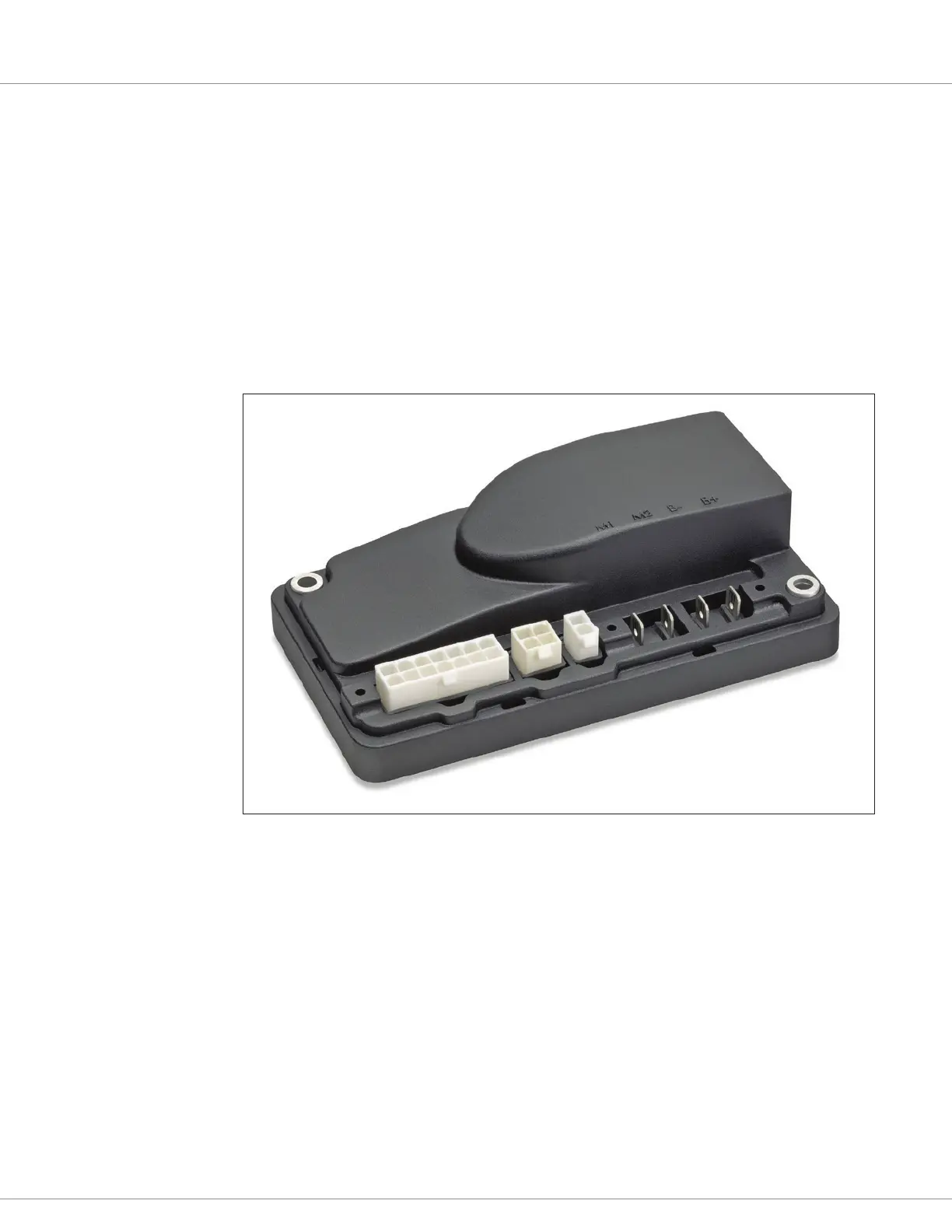

Figure 1
Curtis
1212/1212P
Electronic Motor
Controller.
Like all Curtis motor controllers, the 1212 and 1212P oer superior operator control of the vehicle’s
motor drive speed. Key features include:
Smooth and Secure Control
• Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and
ramps
• Linear cutback of current ensures smooth control, with no sudden loss of power during
undervoltage or overtemperature
• Optional speed limit potentiometer provides direct and linear control of the maximum vehicle
speed
• Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
