34
1313 Handheld Programmer Manual, Rev. B
key. Select the location where you want to save the XLS file, and after pressing
the “Save As” softkey and naming the XLS file, press the “OK” softkey. You will
now see the Plot & Log menu with a flashing red dot next to Log, indicating
that logging is in progress. To stop logging, press the right-arrow key (
), and
then in the “Stop Logging” screen, press the “OK” softkey.
Plot

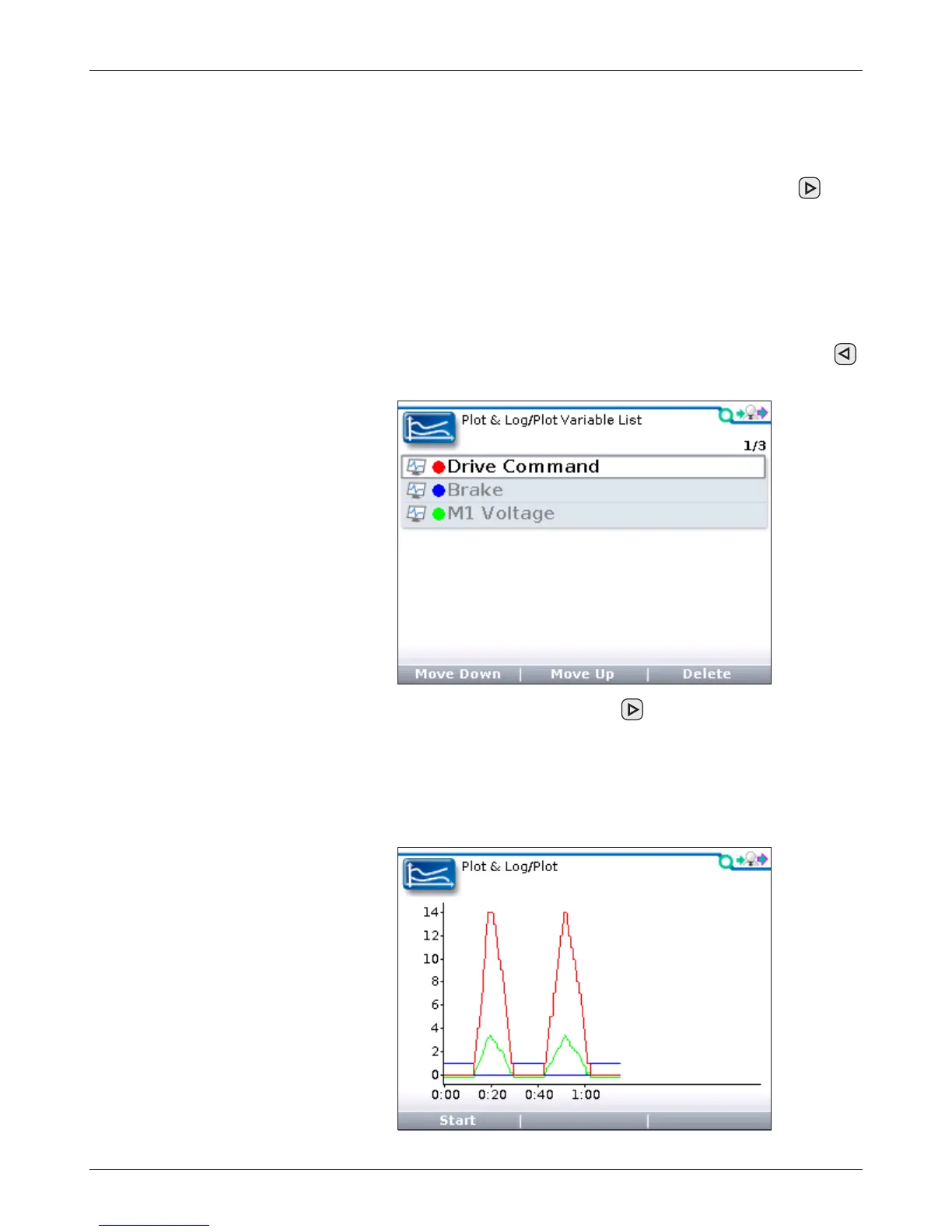

In the Plot Variables list, a colored circle beside each item shows the color that
will be used for that item in the plot. The colors are in a fixed order; if you
want to use specific colors for specific items, use the “Move Down” and “Move
Up” softkeys to achieve the desired combinations. Use the left-arrow key (
)
to return to the Plot & Log menu.
12 — PLOT & LOG
Highlight Plot and press the right-arrow key ( ) to open the plotting program.
The vertical axis is always used for the variables being plotted, and the hori-
zontal axis is always used for time. For On/Off items, On=1 and Off=0 on the
plot. Press the “Start” softkey to begin plotting data. Press the “Stop” softkey
to stop plotting data and freeze the plot. You have the option of pressing the
“Start” softkey to resume the plot.
