Curtis D60GT10 - Illustrated Parts

5
ITEM PART№ DESCRIPTION
1 WC-58117 COVER,TOPD60GT
2 WC-2962-101K KIT,FITTINGSPRAYHEADKYNAR
3 WC-889* VALVE,DUMPLEFT120V12W
3A WC-860 VALVE,DUMPLEFT220V12W
4 WC-37064* KIT,LABEL&UCMD500/D60GTCURTIS120V
5 WC-37252 KIT,HOTWATERFAUCETREPLACEMENT
6 WC-1806 SEATCUP,SILICONE(FORWC-1809FAUCET)
7 WC-8556* HEATSINKASSEMBLYDV
8 WC-2401 ELBOW,1/4x3/8FLARE
9 WC-826L* VALVE,INLET1.0GPM120V
9A WC-856 VALVE,INLET1GPM240V10W
10 WC-5970 COVER,BACKCTRWRAPALPHA/D60GT
11 WC-8591* CAPACITOR,X2USEDONALLADSMODELS
12 WC-29025* SPRAYHEAD,PURPLEADVANCEFLOW
13 WC-3518* LEG,GLIDE3/8”-16STUDSCREW
13A WC-3503* LEG,SCREWBUMPER(3/8”)
14 WC-3621-101 BREWCONE,NON-METALUNIVERSAL(WITHSPLASHPCKT)
14A WC-3316 BREWCONE,ASSYS.S.(OPTIONAL)
*RecommendedPartstoStock.
1
2
3
A
4
18
5
6
15
B
C
24
17A
7
8
9
10
11
12
13
13A
14
14A

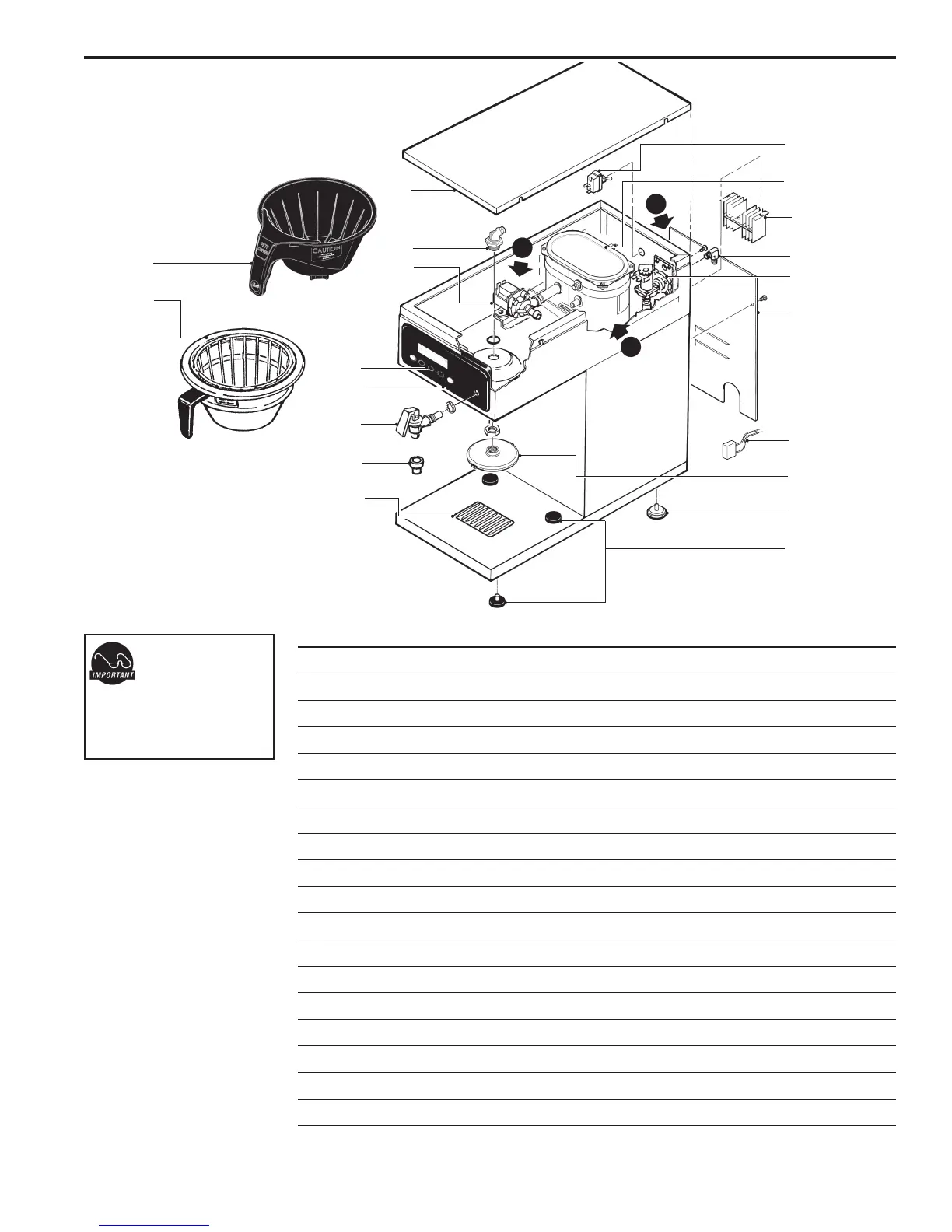

ILLUSTRATED PARTS
MainView
NOTE: The120V
andthe220Vunit
shares many of the
components. The exceptions
willbeinboldtype,toindicate
220V.
