Curtis PMC 1204X/1205X/1209/1221 Manual iv

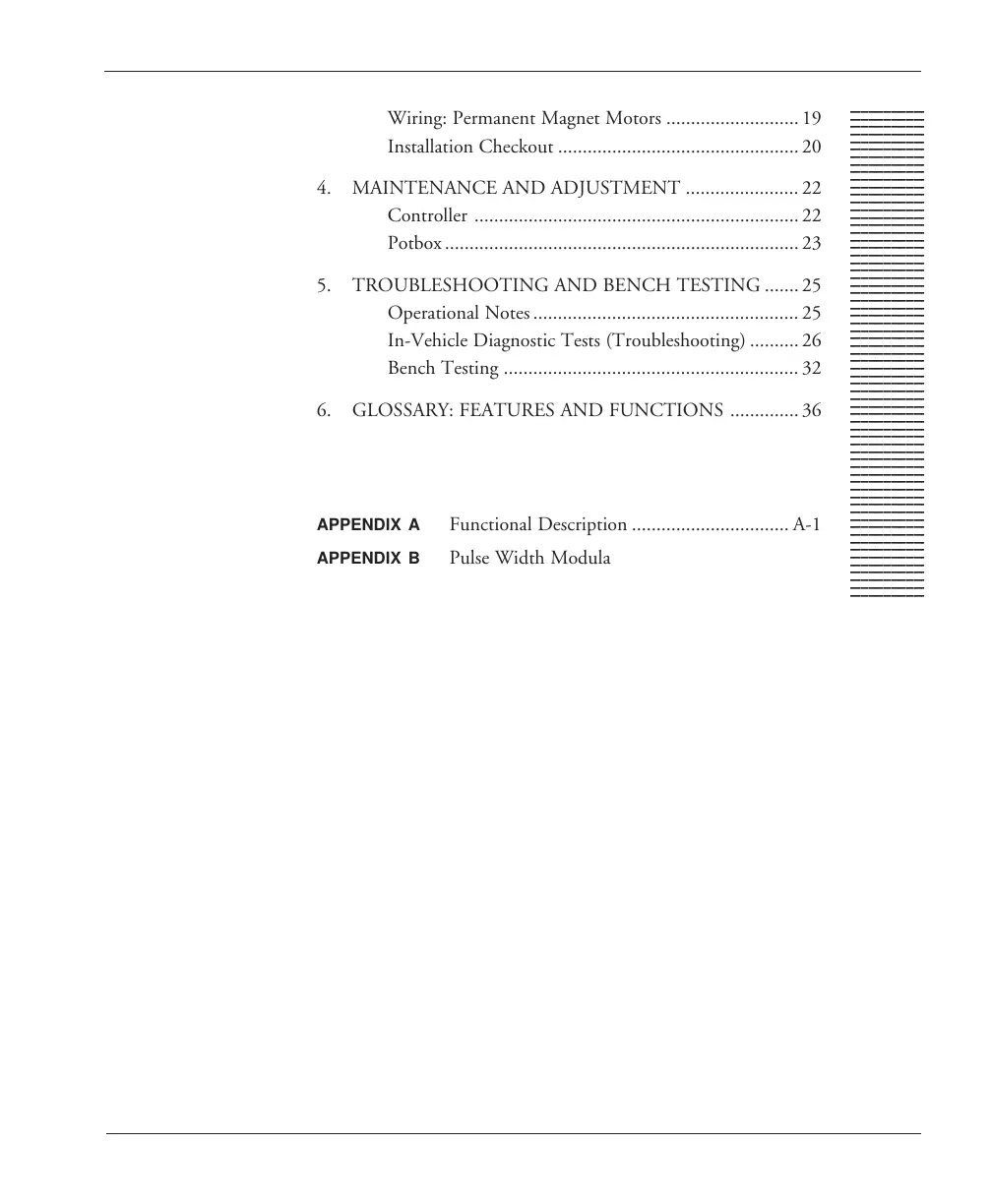

CONTENTS

12345678901

234567890

12345678901

Wiring: Permanent Magnet Motors ........................... 19

Installation Checkout ................................................. 20

4. MAINTENANCE AND ADJUSTMENT .......................22

Controller .................................................................. 22

Potbox ........................................................................23

5. TROUBLESHOOTING AND BENCH TESTING ....... 25

Operational Notes ...................................................... 25

In-Vehicle Diagnostic Tests (Troubleshooting) .......... 26

Bench Testing ............................................................ 32

6. GLOSSARY: FEATURES AND FUNCTIONS .............. 36

APPENDIX A Functional Description ................................ A-1

APPENDIX B Pulse Width Modulation ............................. B-1

APPENDIX C Electrical Speciﬁcations................................C-1
