TURF TRUCKSTER
Item Part No. Qty. Description Serial Numbers/Notes
1
4119866.8 1 Muffler
2 2703800.8 1 Tube, Exhaust Inlet
3 314990013 1 Gasket, Exhaust Order directly from Perkins
4 452389 4 Screw, M8-1.25 x 25 mm Flange
5 838295.8 1 Strap, Muffler Hanger
6 450193 2 Screw, M8-1.25 x 30 mm Hex Head
7 450378 2 Locknut, M8-1.25
8 REF 1 Bracket, Muffler See 20.1
841982 2 Clamp, 1-1/2” Exhaust
9N/S1•U-Bolt
10 N/S 1 • Bracket
11 N/S 2 • Nut, 5/16-18 Hex
12 103867 2 Flat Washer, 5/16
13 REF 1 Cover, Starter Hole See 20.1

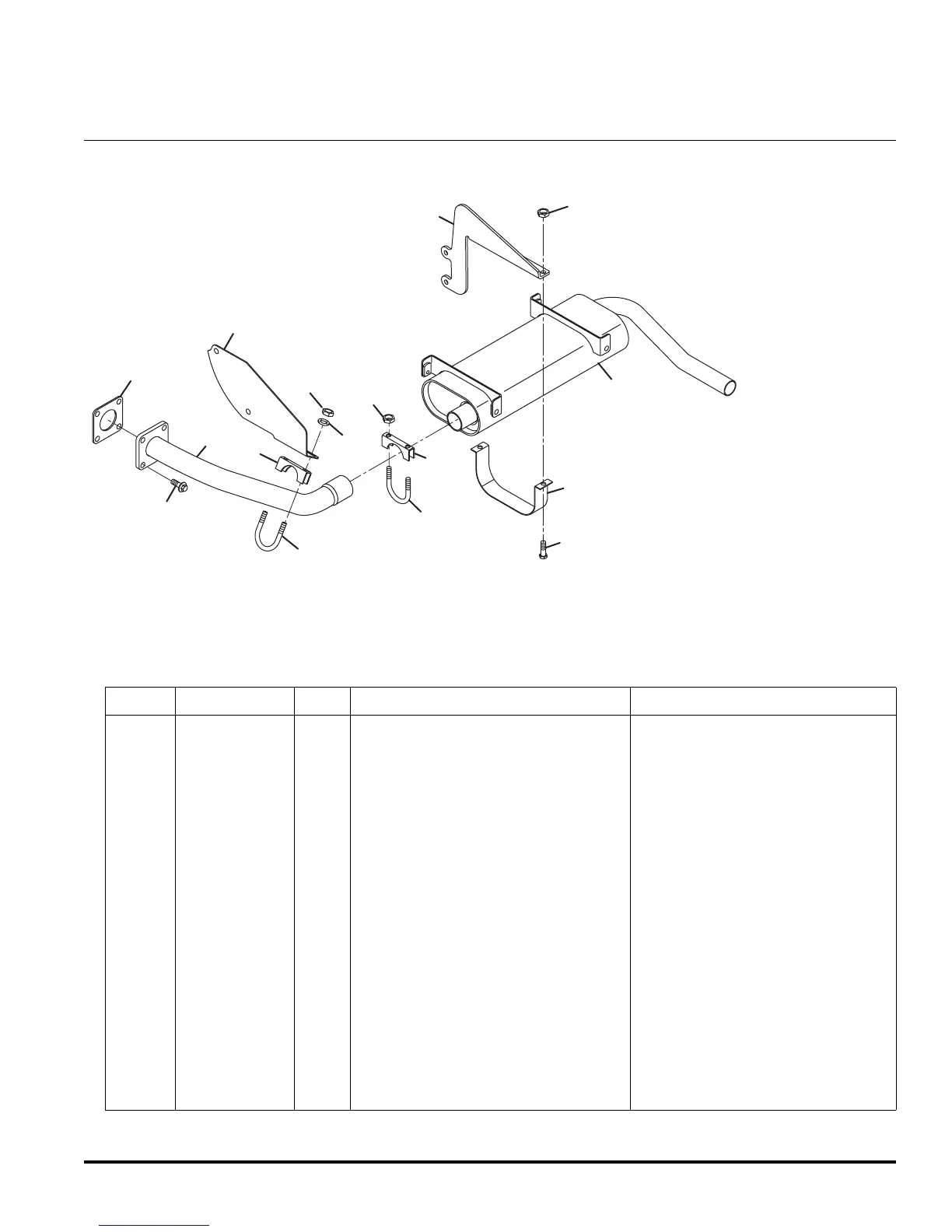

26.1 Exhaust
Serial No. 898627 All
Serial No. 898628 All
Tailpipe outlet to be parallel to ground.
