Cushman 898628 - Gas Engine Exhaust

91
> Change from previous revision
2
3
5
6
7
8
9
10
11
12
4
1
13
1
4
15
16
17
18
19
20

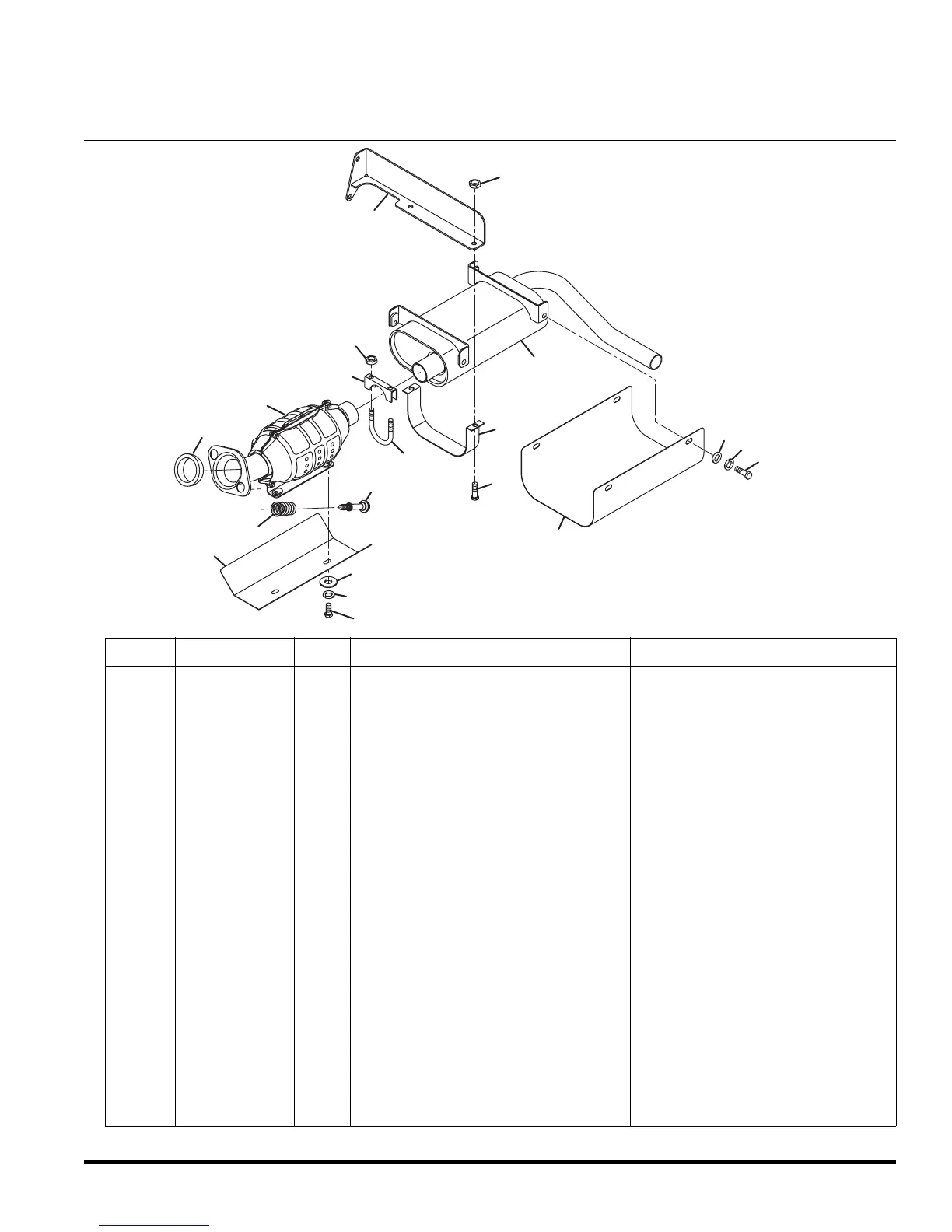

TURF TRUCKSTER
Item Part No. Qty. Description Serial Numbers/Notes
1
4116284.8 1 Muffler
2 36072-G01 1 Catalytic Converter
3 2700144 2 Bolt, Muffler Flange
4 2700145 2 Spring, Muffler Flange
5 838295.8 1 Strap, Muffler Hanger
6 450193 2 Screw, M8-1.25 x 30 mm Hex Head
7 450378 2 Locknut, M8-1.25
8 4114221.8 1 Bracket, Muffler Attaches to Transmission Case
841982 2 Clamp, 1-1/2” Exhaust
9N/S1•U-Bolt
10 N/S 1 • Bracket
11 N/S 2 • Nut, 5/16-18 Hex
12 2700143 1 Ring, Muffler Flange
13 4121517.8 1 Shield, Muffler
14 306450 4 Screw, 5/16-18 x 3/4” Hex Head
15 306325 4 Lockwasher, 5/16
16 103867 4 Flat Washer, 5/16
17 4121525.8 1 Shield, Catalytic Converter
18 306419 2 Screw, 1/4-20 x 1/2” Hex Head
19 306396 2 Lockwasher, 1/4
20 815860 2 Washer, Special
30.1 Gas Engine Exhaust
Serial No. All
Tailpipe outlet to be parallel to ground.
