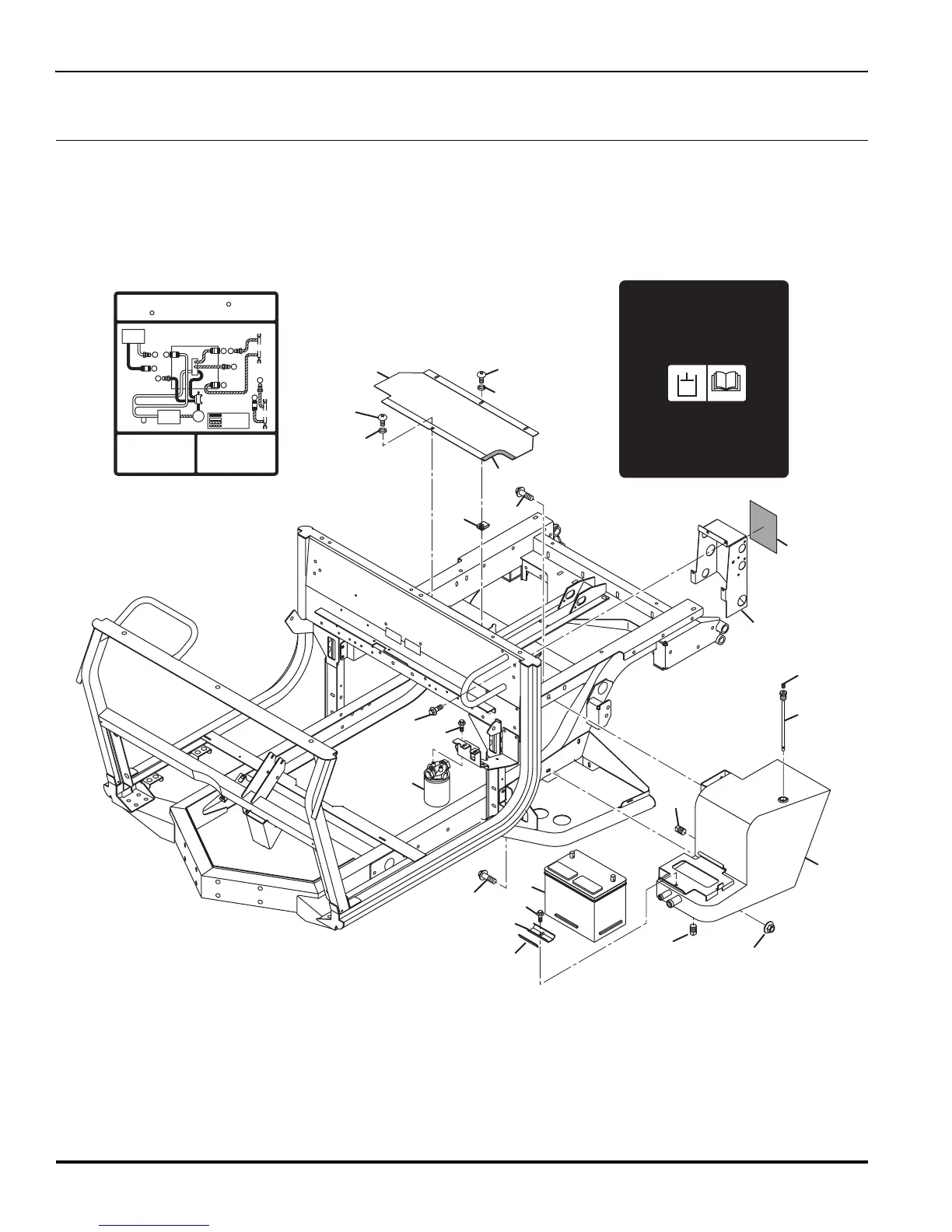

Cushman 898628 - Hydraulic Tank and Filter

96
FOR MOTOR DRIVEN ACCESSORY AND TRUCKSTER
DUMP BOX OPERATION
PLUG 1-4. 2-3. 8-9. 7-10
FOR MOTOR DRIVEN ACCESSORY AND INOPERABLE
TRUCKSTER CYLINDER
PLUG 1-2. 3-4. 8-9. 7-10
FOR TRUCKSTER CYLINDER OPERATION
PLUG 1-4. 2-3. 7-8
FOR ACCESSORY CYLINDER OPERATION
PLUG 1-5. 2-6. 4-3. 7-8
NOTE: PREVENT HYDRAULIC SYSTEM DAMAGE
HOSE REMOVED FROM ACCESSORY MUST
BE CLEANED AND PLUGGED INTO RETURN
PORT TO PREVENT DAMAGE DUE TO ACC-
IDENTAL ENGAGEMENT OF SELECTOR VALVE
8
8
7
MOTOR DRIVEN
ACCESSORY
HYDRAULIC
TAN K
7
14
3
5
6
2
10
9
HYD
PUMP
PRESSURE
RETURN
SUCTION
PRESSURE & RETURN
SELECTOR
VALVE
FILTER
LIFT
VALVE
TRUCKSTER
CYLINDER
ACCESSORY
CYLINDER
1
2
3
4
5
5
6
7
8
9
10
11
12 / 14
13 / 15
13
15
16
17
18
19
20
20
21
21
22
23
TURF TRUCKSTER
33.1 Hydraulic Tank and Filter
Serial No. All
