Read all of Section A and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
LIFTING THE VEHICLE
Tool List Qty. Required
Floor jack .................................................................... 1
Jack stands ................................................................. 4
Chocks ........................................................................ 4
Some servicing operations may require the entire vehicle
to be raised.
To prevent possible inju-
ry or death, be sure the
vehicle is on a firm and
level surface. Never get under a vehicle while it is
supported by a jack. Use jack stands and test the sta-
bility of the vehicle on the stands before getting under
the vehicle. Always place chocks in front and behind
the wheels not being raised. Use extreme care since
the vehicle is extremely unstable during the lifting
process.
Never attempt to raise the rear wheels of a three
wheel vehicle without first raising the front of the
vehicle and supporting on jack stands.
When lifting vehicle, position jacks and
jack stands only on areas indicated.
Servicing that requires access to the underside of the
vehicle may be accomplished by raising the front of the
vehicle with a chain hoist attached to the front frame
members. Always use an additional safety chain to pre-
vent injury should the hoist malfunction.
To remove the front axle, loosen the hardware and turn
the front wheel to the position indicated. Position a jack in
the location indicated and carefully raise the front of the
vehicle. Position the jack stands as shown. Use care not
to place the jack or stands where they could interfere
with wiring or linkages (Ref Fig. 1 on page B-7). Slowly
lower the jack and test the stability of the vehicle.
Do not lift the rear of the vehicle without stabilizing the
front of the vehicle. To raise the rear of the vehicle, posi-
tion the jack in the position shown (Ref Fig. 1 on page B-
7). Carefully raise the rear of the vehicle with the jack
and place two jack stands in the position shown. Slowly
lower the jack and check that the vehicle is securely sup-
ported by the jack stands before proceeding.
Towing
This vehicle is not
designed to be towed.
It is recommended that
this vehicle be moved by placing the entire vehicle on a
trailer, flat bed or other suitable transport.
! !

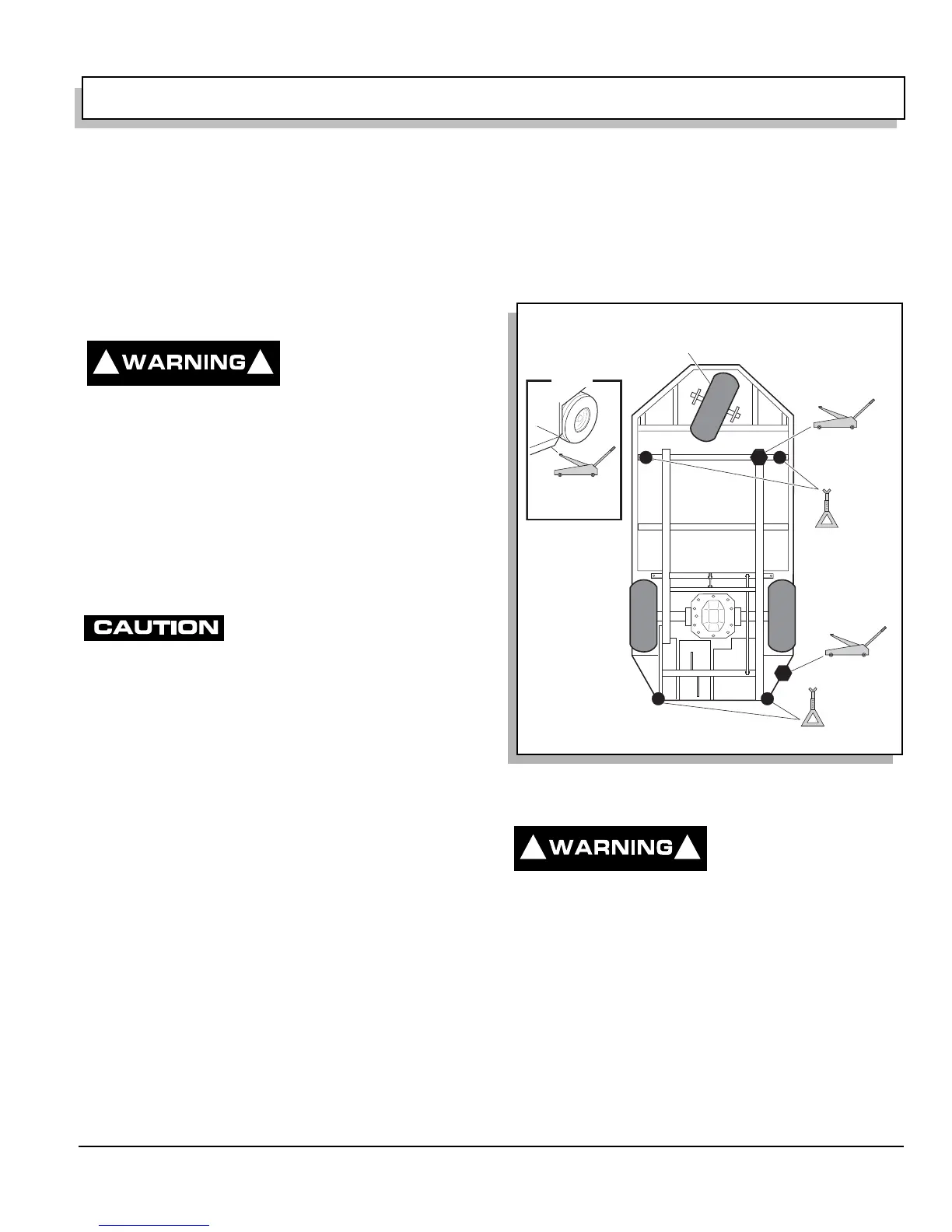

Fig. 1 Lifting the Vehicle
View from underside of vehicle
1
3
2
44
2
(See deta
Place jack along
the flat edge of
footrest
to permit jack placement
Detail
! !
To Next Page
