F
Page F-1
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
PROGRAMMABLE SPEED CONTROLLER
The vehicle is equipped with an electronic speed control-
ler that does not require servicing. Some controllers may
not have current and speed limit adjustment.
DIAGNOSTICS AND TROUBLESHOOTING
LED Diagnostics
During normal operation, with no faults present, the Sta-
tus LED flashes a single flash at approximately 1 flash/
second. If the controller detects a fault, a 2-digit code
(see Table) is flashed continuously until the fault is cor-
rected. For example, code “3,2” welded direction contac-
tor appears as:

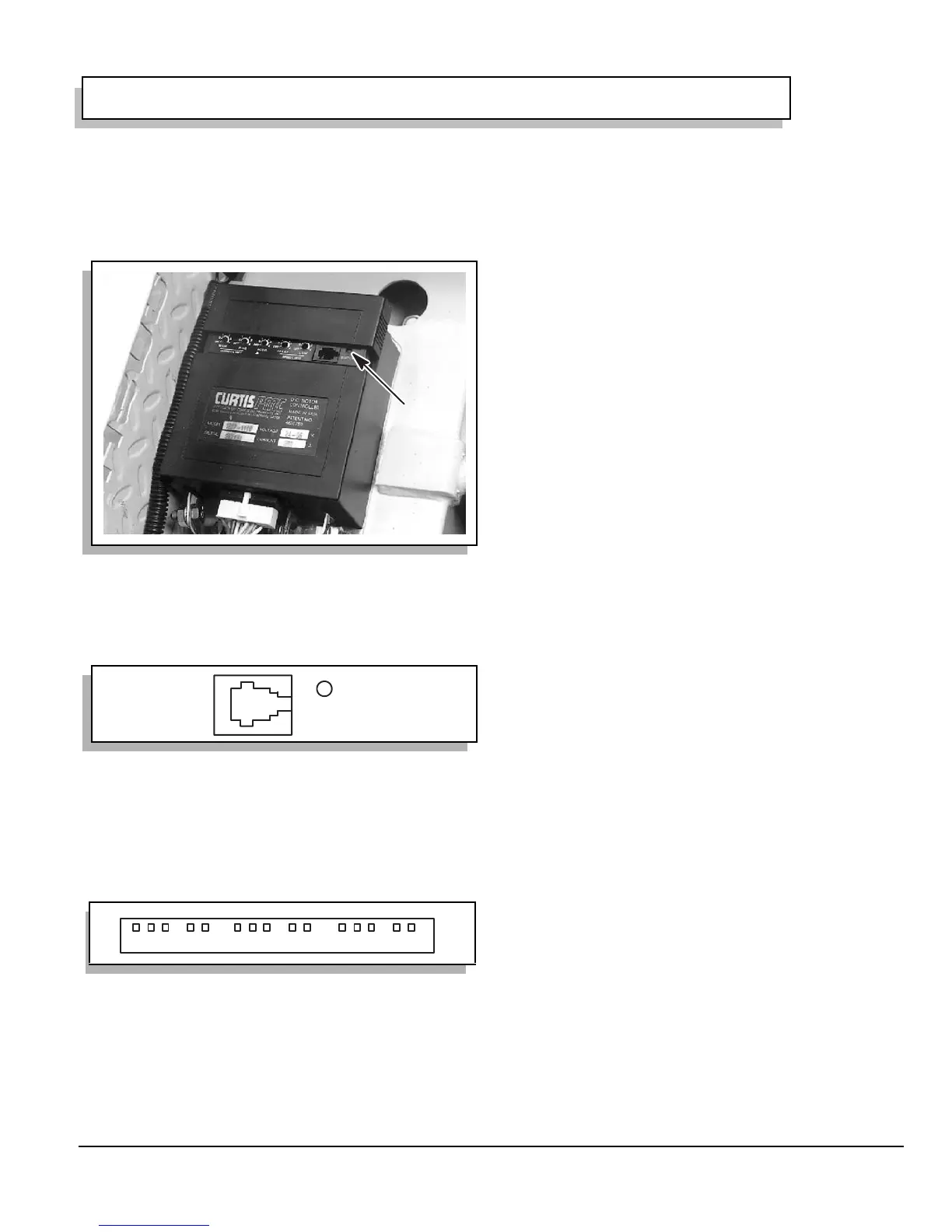

Fig. 1 Controller LED Status Indicator
Fig. 2 Controller LED Status Indicator
Fig. 3 Welded Direction Contactor
LED
Indicator
STATUS
LED
(3,2) (3,2)
(3,2)
ELECTRONIC SPEED CONTROL
