REAR AXLE
Page K-2
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
Use care to prevent damage to the inner
surface of the axle tube at the sealing
area.
Remove the inner snap ring (Ref Fig. 4 on page K-2).
Use a puller to remove the seal (Ref Fig. 5 on page K-2).
To install the seal, use the special seal installer to drive
the seal into its correct position (Ref Fig. 6 on page K-2).
To prevent seal damage, lightly coat the
axle shaft with bearing grease and sup-
port the shaft during installation.
Install the inner snap ring (Ref Fig. 4 on page K-2).

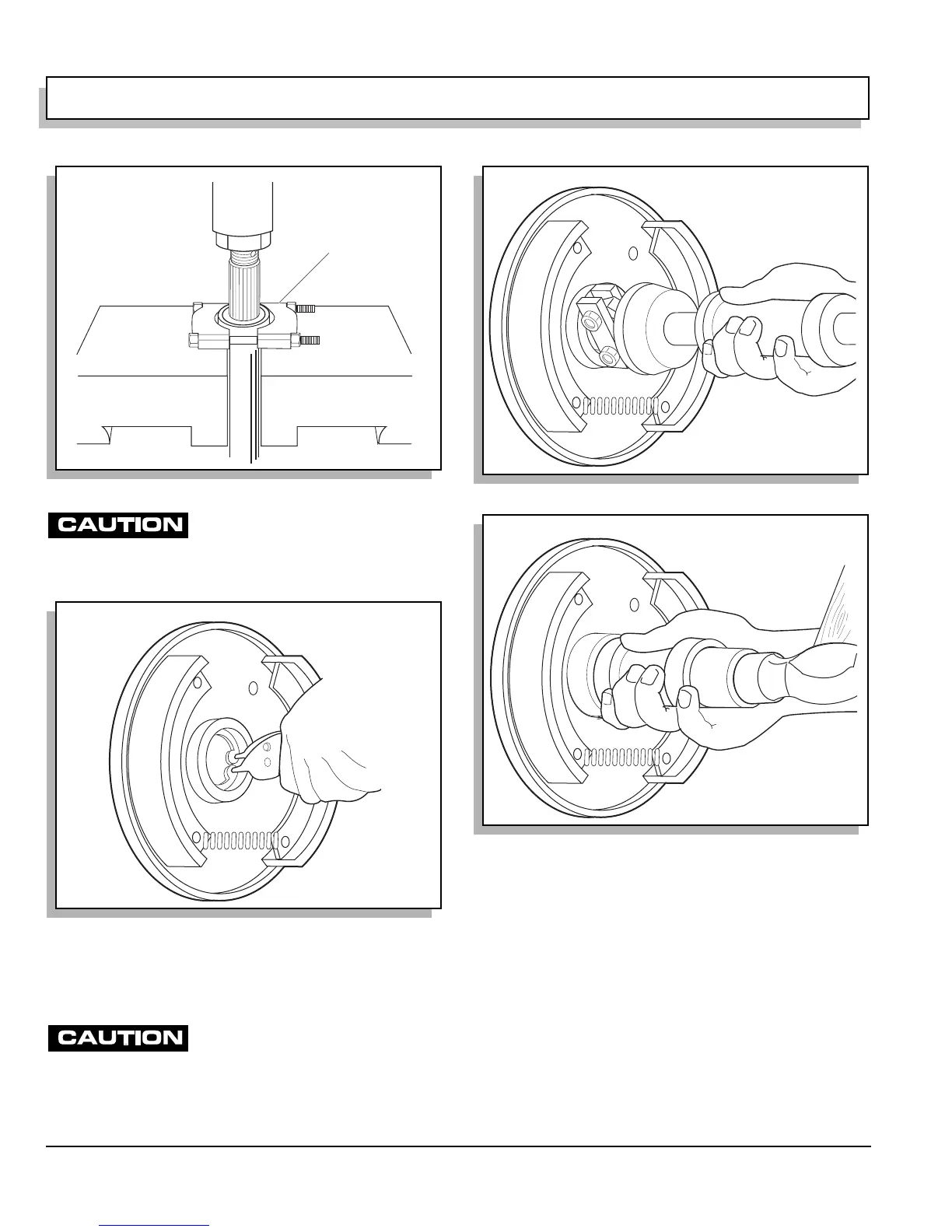

Fig. 3 Pressing Bearing from Axle Shaft
Fig. 4 Removing/Installing Inner Snap Ring
Bearing
Separator
Fig. 5 Removing Seal
Fig. 6 Installing Seal
