16 Parts

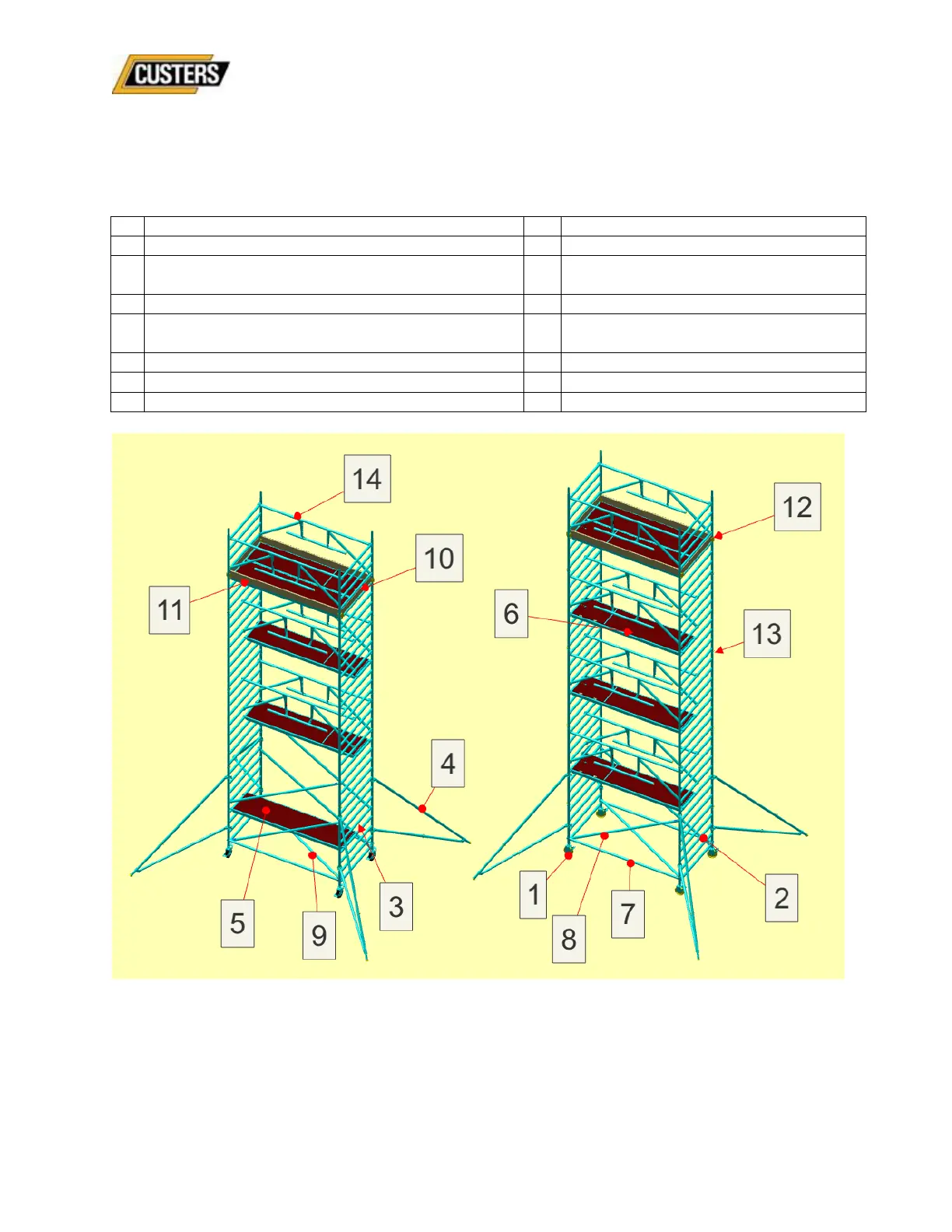

16.1 List with components (wide mobile scaffold tower)
Part
Part
1
Caster
8
Diagonal (blue locking tab)
2
4-rung frame
9
Horizontal/diagonal (yellow locking
tab)
3
8-rung frame
10
Toe board transverse
4
Outrigger small/large (alternative: expansion
arch)
11
Toe board longitudinal
5
Platform
12
Toe board bracket
6
Platform with hatch
13
Locking pin
7
Horizontal (red locking tab)
14
Safe Guard
Fig.64
