8 ASSEMBLING THE NARROW MOBILE SCAFFOLD TOWER
(2,4,6,8,10,12 m)

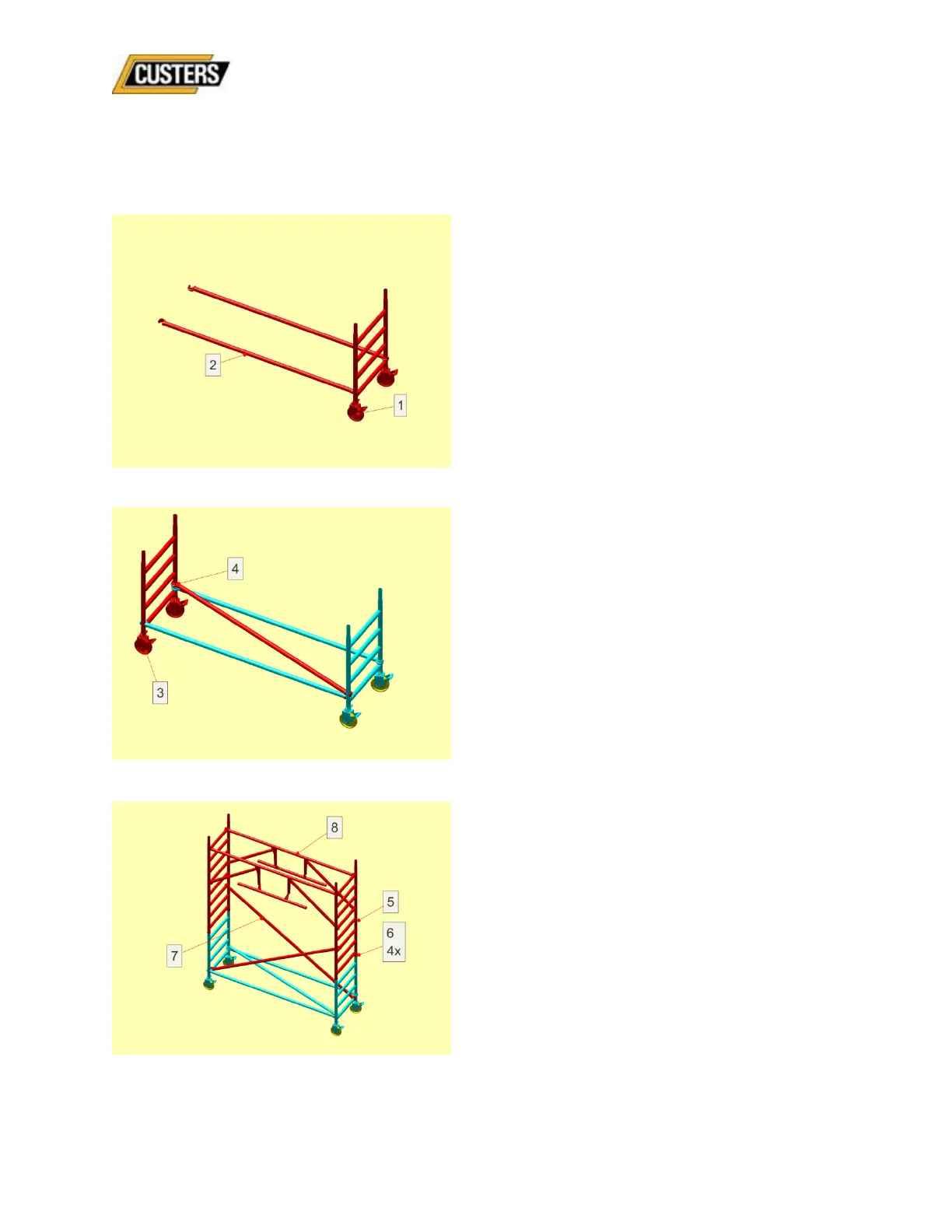

Fig.37
1: Insert both casters into the 4-rung
frame; and make sure that the casters
are properly secured;
2: Place the horizontal ledgers on the
uprights of the frame;
Fig.38
3: Insert both casters into the 4-rung
frame; and make sure that the casters
are properly secured;
4: Place the horizontal ledgers and the
horizontal/diagonal on the uprights of
the frame;
Fig.39
5: Place both 8-rung frames;
6: Place locking pins between the
frames themselves;
7: Place both diagonal ledgers;
8: Place both leading Safe Guards on the
upper rung and click both diagonal
ledgers in place on the 5
th
rung of the
frame in question;
