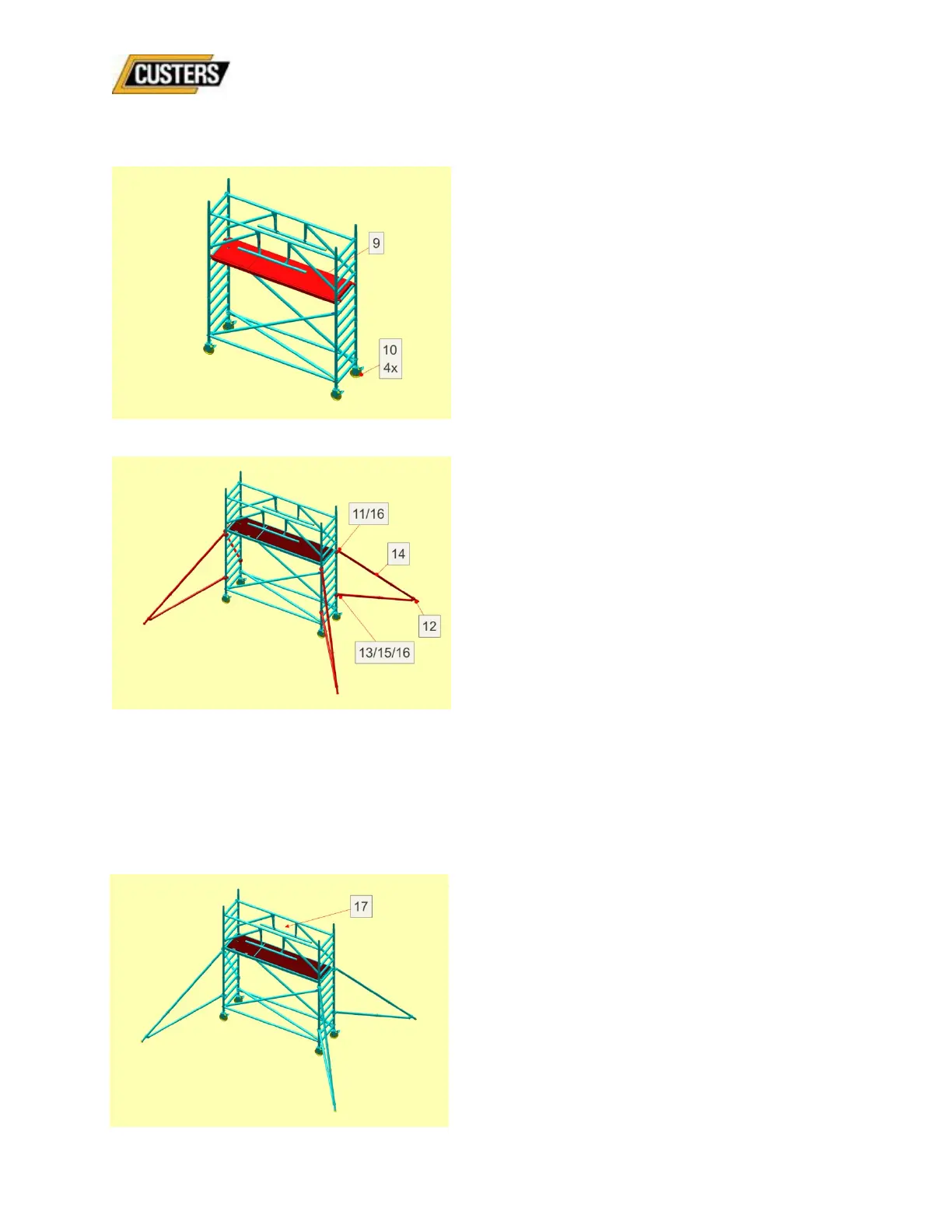

Fig.40
9: Place the platform with hatch (on the
5
th
rung from the top); slide both
blow-away protections under the
rung;
10: Lock the brakes and set the
scaffold level by twisting the
spindle nut of the casters;
Now place the four (large or small)
outriggers:
Fig.41
11: Place the upper coupler under the 6
th
or
7
th
rung at the small leg, 9
th
or 10
th
rung at the large leg;
12: Put the foot on the ground with
observance of the designated basic
form (see 4.4);
13: Make sure that the lower coupler falls
between two rungs;
14: Rotate the leg in such a way that the
designated basic form (see 4.4) is
maintained;
15: Tighten the lower coupler by hand on
the upright and slide the coupler
upwards over the upright so that the
leg is slightly tensioned;
16: Slightly tighten both couplers;
Fig.42
17: Climb to the 2m. level through the
hatch;
