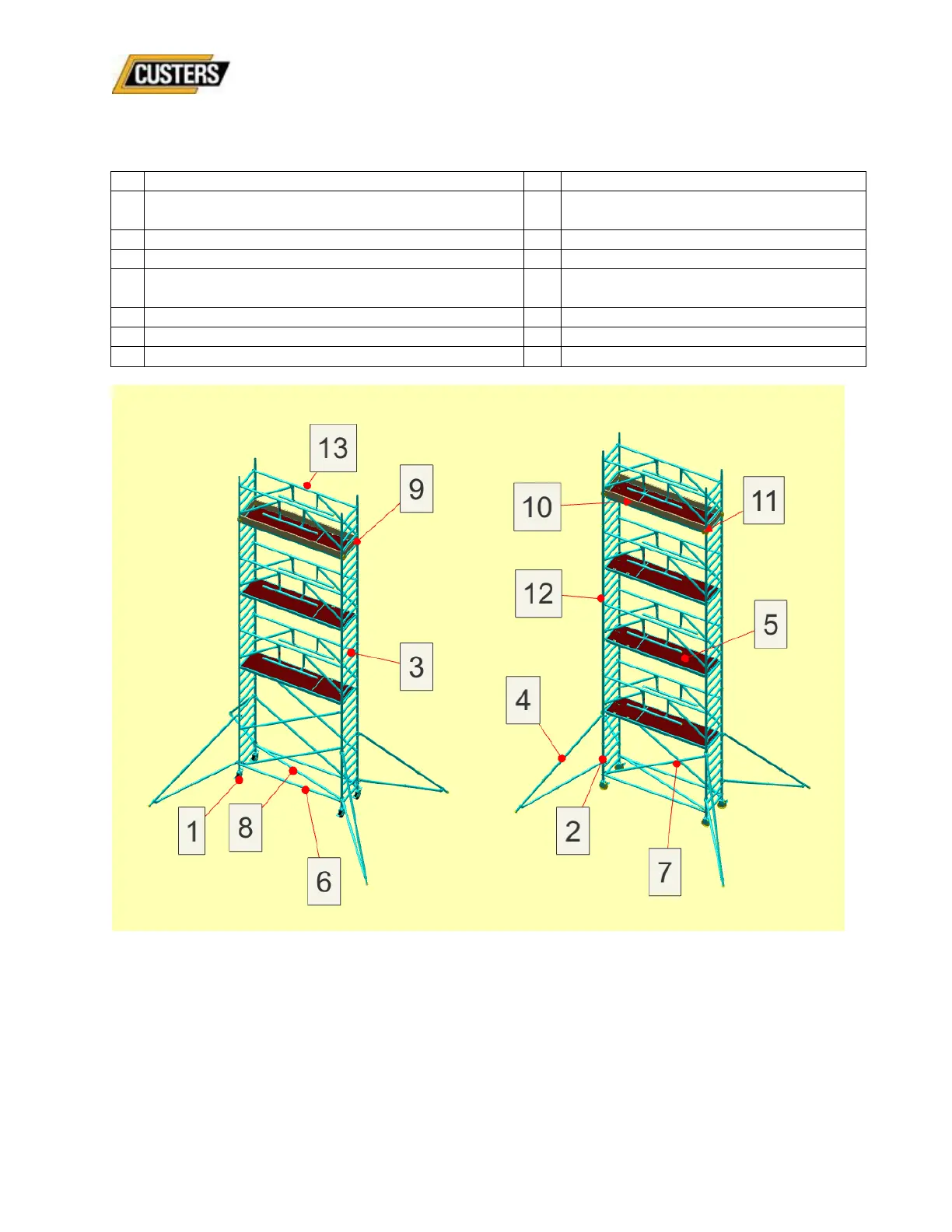

16.2 List with components (narrow mobile scaffold tower)
Part
Part
1
Caster
8
Horizontal/diagonal (yellow locking
tab)
2
4-rung frame
9
Toe board transverse
3
8-rung frame
10
Toe board longitudinal
4
Outrigger small/large (alternative: expansion
arch)
11
Toe board bracket
5
Platform with hatch
12
Locking pin
6
Horizontally (red locking tab)
13
Safe Guard
7
Diagonal (blue locking tab)
Fig.65
