6 ASSEMBLING THE WIDE MOBILE SCAFFOLD TOWER
(2,4,6,8,10,12 m)

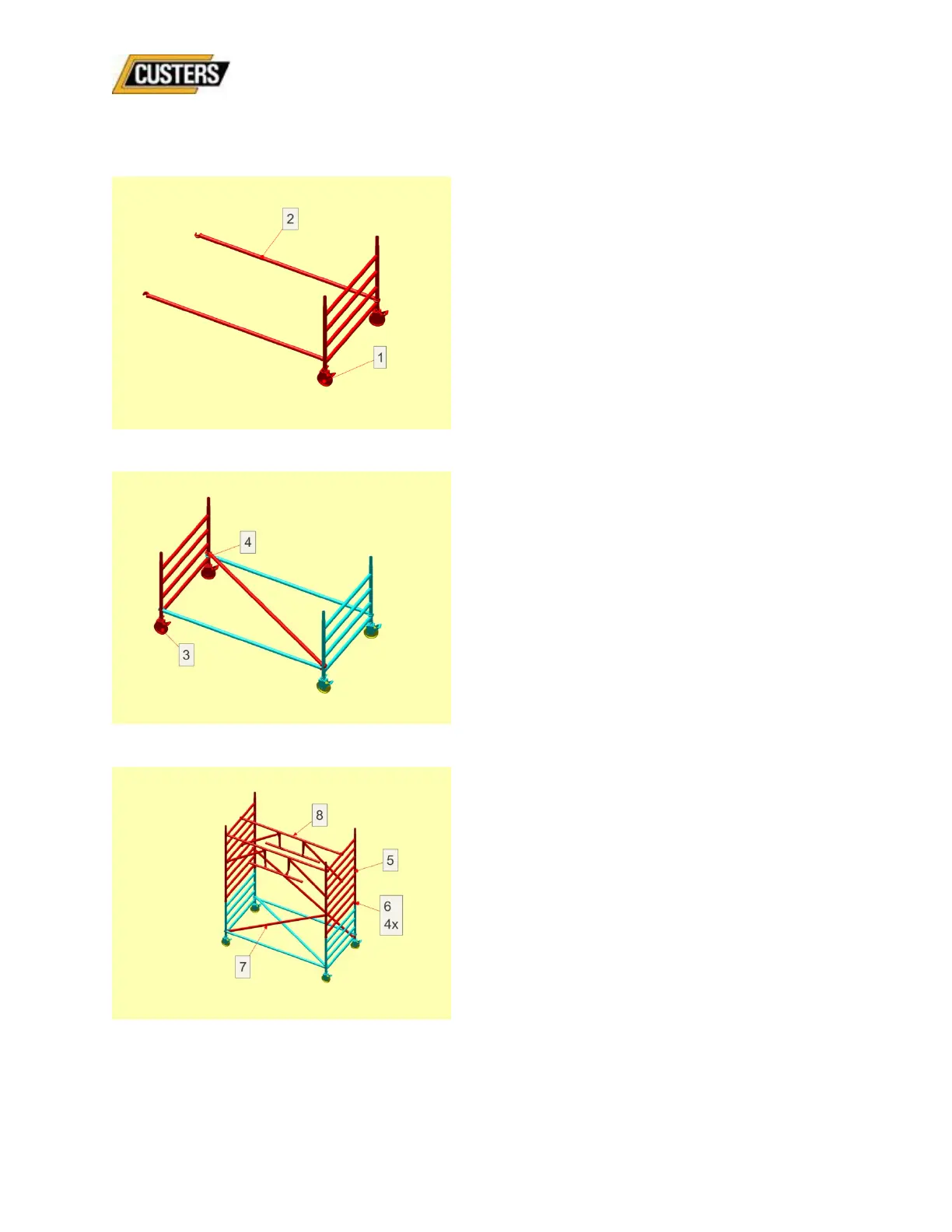

Fig.8
1: Insert both casters into the 4-rung
frame; and make sure that the
casters are properly secured;
2: Place the horizontal ledgers on the
uprights of the frame;
Fig.9
3: Insert both casters into the 4-rung
frame; and make sure that the
casters are properly secured;
4: Place the horizontal ledgers and the
horizontal/diagonal on the
uprights of the frame;
Fig.10
5: Place both 8-rung frames;
6: Place locking pins between the
frames themselves;
7: Place both diagonal ledgers;
8: Place both Safe Guards on
the upper rung: one on the
façade side, the other middle one
on the upper rungs. Click the diagonal
ledgers in place on the 5
th
rung of the
frame in question;
