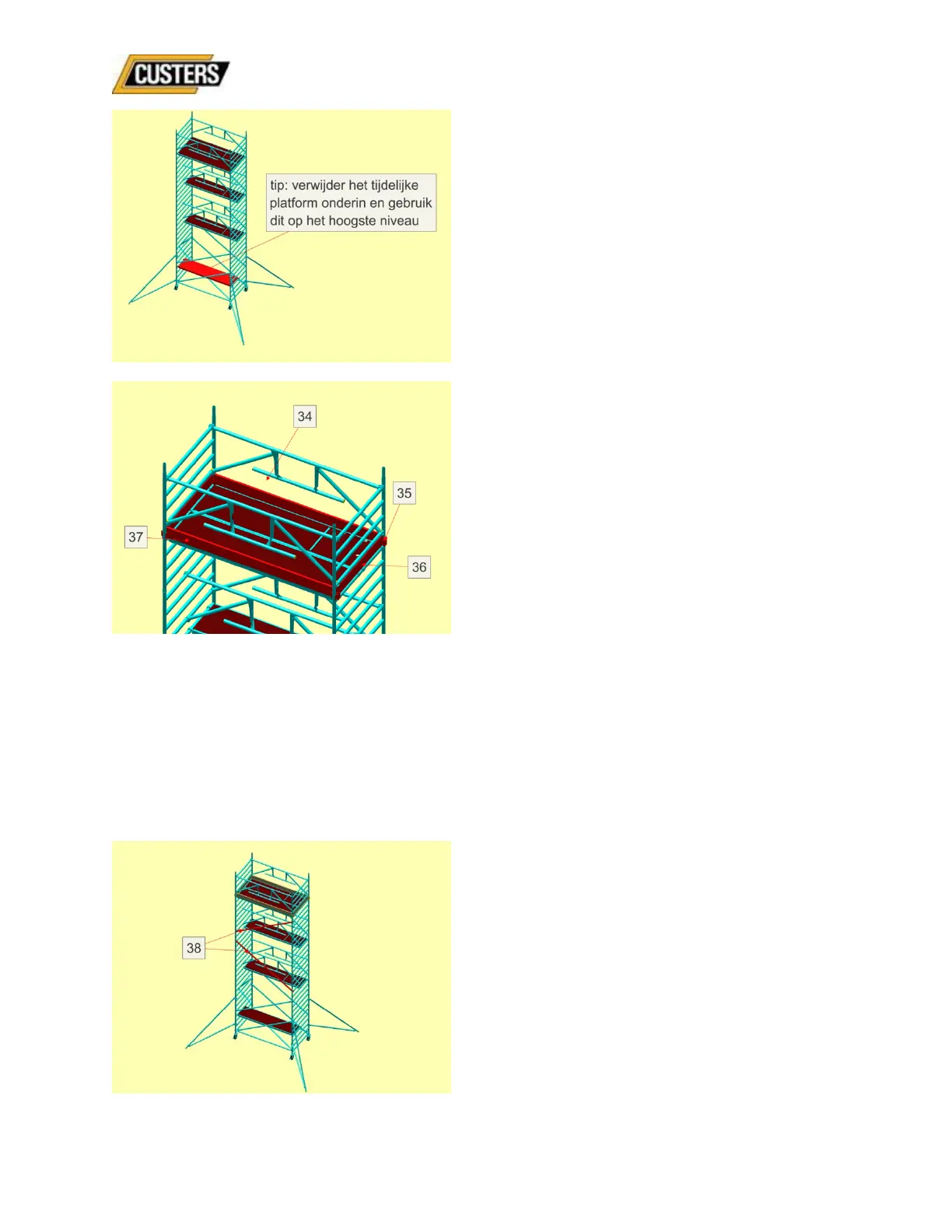

Fig.34
33: Repeat the steps 27 - 32 until
the preferred level has been achieved;
Fig.35
34: Climb to the upper level through
the hatch;
35: Place the four toe board brackets;
36: Place both end toe boards
37: Place both longitudinal toe boards;
The above shows the assembly of the freestanding mobile scaffold tower. If the mobile
scaffold tower is placed against the façade (distance between façade and platform not larger
than 15 cm) the edge protection (guardrail at hip height, knee railing and toe board) on the
façade side may be omitted.
The wide mobile scaffold tower, as described above, meets the stability requirements. For
improved stiffness we recommend adding additional ledgers in zigzag to the “street side”.
Fig.36
38: Add additional diagonal ledgers from
platform height 3m, each section 1
diagonal from rung 1 to 7 to be placed
in zigzag pattern.
