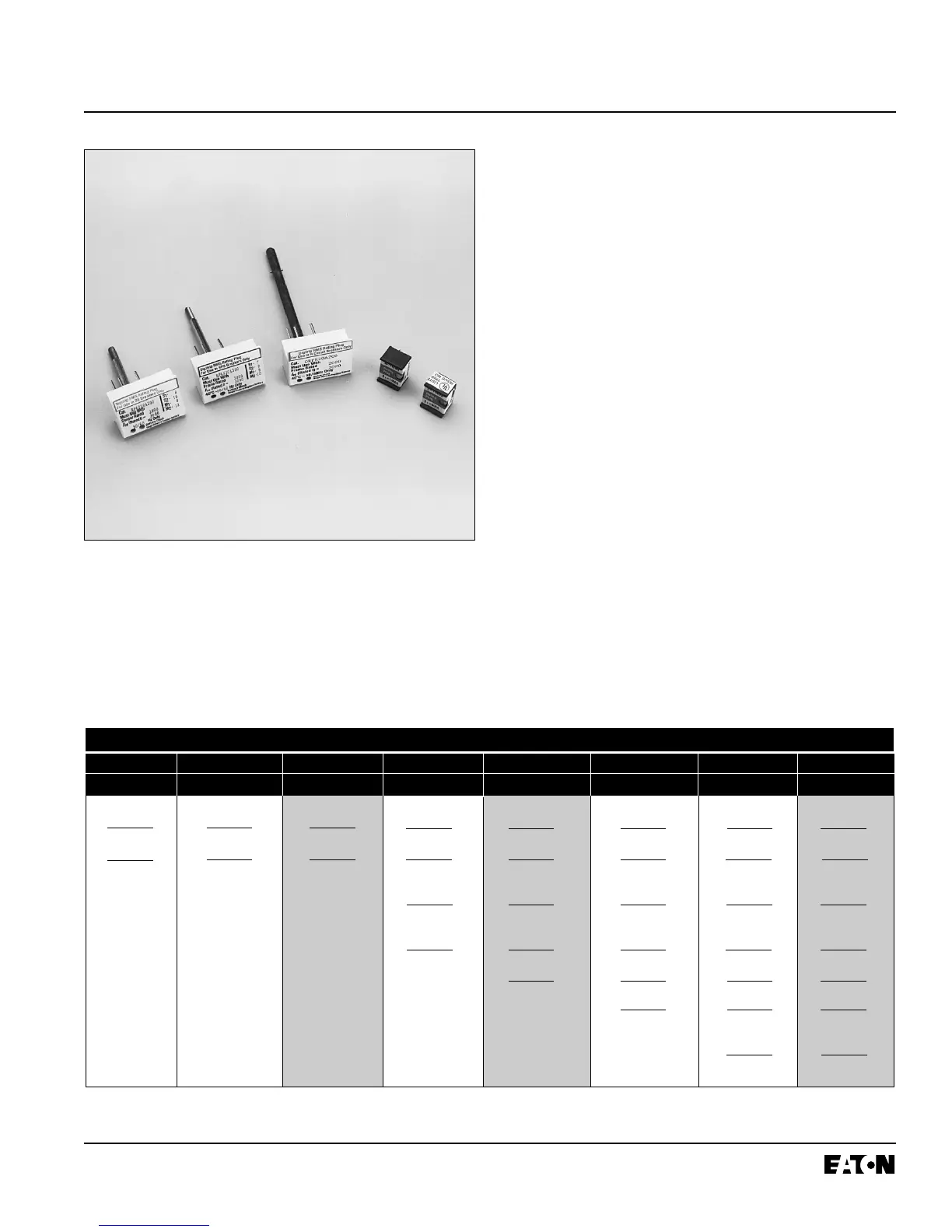

Figure 1-4 Family of Digitrip OPTIM Trip Unit Rating
Plugs
Figure 1-5 Family of Digitrip Trip Units Comparison
Refer to paragraph 1-4 for feature and function details.
A Digitrip OPTIM Trip Unit System can be tailored to
meet very precise system requirements. The featured
parts of an OPTIM Trip Unit System are:
• OPTIM 550, 750 or OPTIM 1050 Trip Unit
• OPTIMizer Hand Held Programmer
• Breaker Interface Module
• Communications System and Software (IMPACC)
A Digitrip OPTIM Trip Unit System always includes any
number of OPTIM 550, 750 or OPTIM 1050 Trip Units
with one or more OPTIMizer Hand Held Programmers.
The OPTIMizer Hand Held Programmer is required with
the trip units to initially:
• Assign unique device addresses
• Select baud rates
In addition, OPTIM Trip Units are compatible with the
optional panel mounted Breaker Interface Module and
IMPACC software. When used, the Breaker Interface
Module and IMPACC software also become integral
parts of the overall Digitrip OPTIM Trip Unit System.
Together, the OPTIM Trip Units, the required OPTIMizer
Hand Held Programmer, the optional Breaker Interface
K, L, N & R R, SPB & DSII K thru DSII R thru DSII K thru DSII R thru DSII R thru DSII K thru DSII
RMS 310 RMS 510 OPTIM 550
➀
RMS 610 OPTIM 750 RMS 810 RMS 910 OPTIM 1050
RMS Sensing RMS Sensing RMS Sensing RMS Sensing RMS Sensing RMS Sensing RMS Sensing RMS Sensing
5 Functions 9 Functions 10 Functions 9 Functions 10 Functions 9 Functions 9 Functions 10 Functions
Front Front
Programmable
Front
Programmable
Front Front
Programmable
Adjustable Adjustable Adjustable Adjustable Adjustable
Load Load Load Load Load
Monitoring Monitoring Monitoring Monitoring Monitoring
Diagnostics Diagnostics Diagnostics Diagnostics Diagnostics
Communications Communications Communications Communications
Power & Energy Power & Energy Power & Energy
➀ Field Installed Monitoring Monitoring Monitoring
communications
available Harmonics Harmonics
Applicable Circuit Breaker Types and Trip Unit Type
