CyberPower MBP63A2 User Manual

©2020 Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners.
8

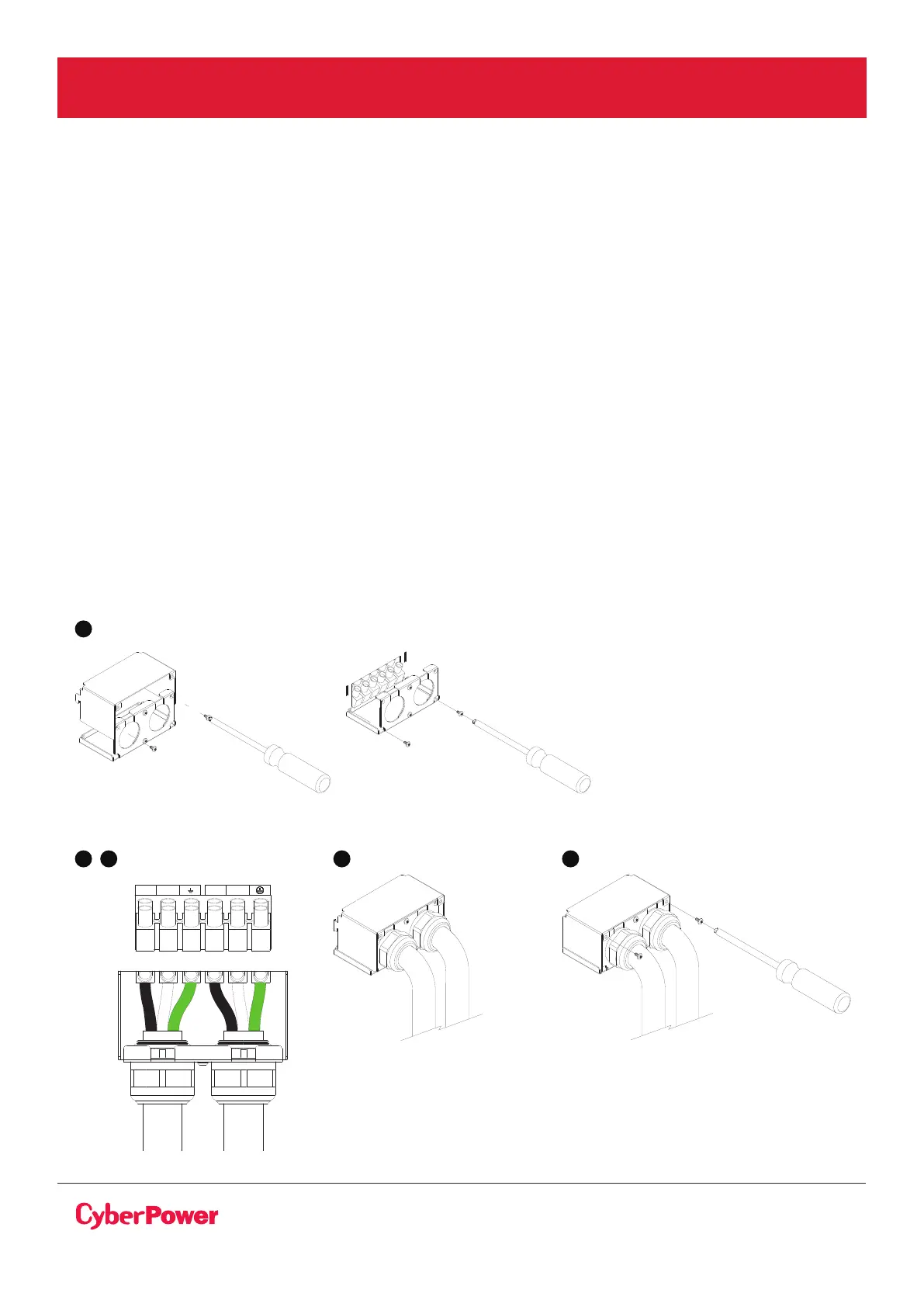

CONNECT MBP TO 8K/10K UPS INPUT/OUTPUT
CONNECT INTERNAL WIRES THROUGH CONDUITS FOR MBP63A2 TO UPS
1. Separate the top and bottom covers by Loosening the two screws to separate the top and
bottom covers.
Fix the terminal block bottom cover and tighten the two screws to fix the terminal block bottom
cover on the MBP.
2. Insert the output cable through the conduits and connect three wires L1, L2 and Ground to the
“FROM UPS OUTPUT” terminal block. (for connection to UPS output).
3. Insert the input cable through the conduits and connect the three wires L1, L2 and Ground to the
“UPS NORMAL AC SOURCE” MBP terminal blocks. (for connection to UPS input).
4. Put the terminal block Top cover and tighten the two screws to cover terminal.
5. Tighten the cable glands.
ELECTRICAL INSTALLATION CONT.
1
2 3 4 5
FROM UPS OUTPUT
L1 L2 L1 L2
TO UPS NORMAL AC SOURCE
UPS
INPUT
UPS
OUTPUT
