ELECTRICAL INSTALLATION CONT.

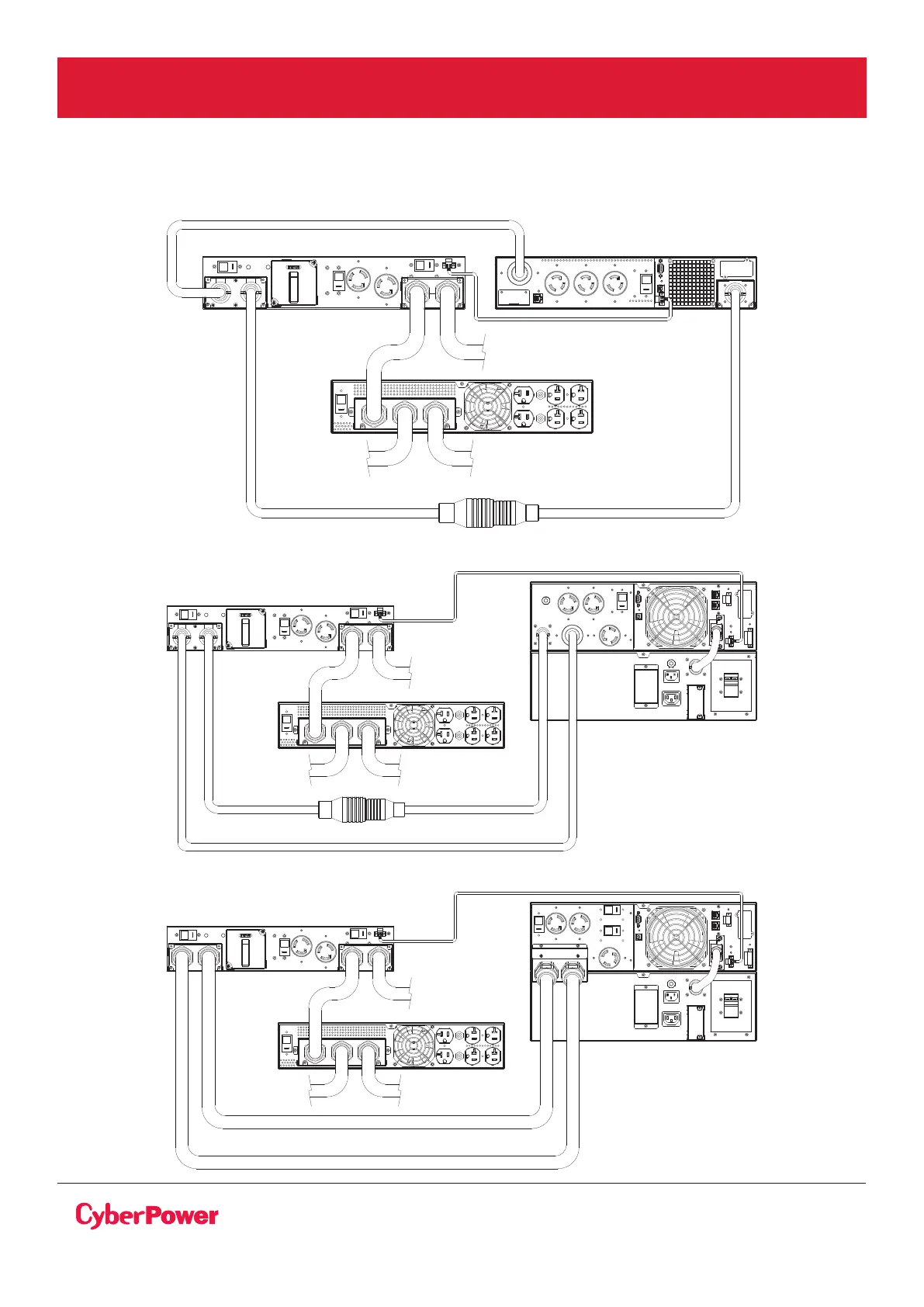

CONNECTING MBP TO A UPS WITH A STEP-DOWN TRANSFORMER
OL5KRTHD/OL6KRTHD WITH A STEP-DOWN TRANSFORMER
TO NORMAL
AC SOURCE (Utility)
OUTPUT
TO
EQUIPMENT (Load)
OUTPUT
TO
EQUIPMENT (Load)
OL6KRT/OL6KRTF WITH A STEP-DOWN TRANSFORMER
TO NORMAL
AC SOURCE (Utility)
OUTPUT
TO
EQUIPMENT (Load)
OUTPUT
TO
EQUIPMENT (Load)
OL8KRT/OL8KRTF/OL10KRT/OL10KRTF WITH A STEP-DOWN TRANSFORMER
TO NORMAL
AC SOURCE (Utility)
OUTPUT
TO
EQUIPMENT (Load)
OUTPUT
TO
EQUIPMENT (Load)
