©2020 Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners.
21
FROM UPS OUTPUT
63A / 250V~
TO UPS NORMAL AC SOURCE
to switch
Bypass
Normal
MAINTENANCE
BYPASS SWITCH
UPS INPUT SWITCH
UPS
OK
FROM UPS OUTPUT
63A / 250V~
TO UPS NORMAL AC SOURCE
to switch
Bypass
Normal
MAINTENANCE
BYPASS SWITCH
UPS INPUT SWITCH
UPS
OK
5
3 4
6

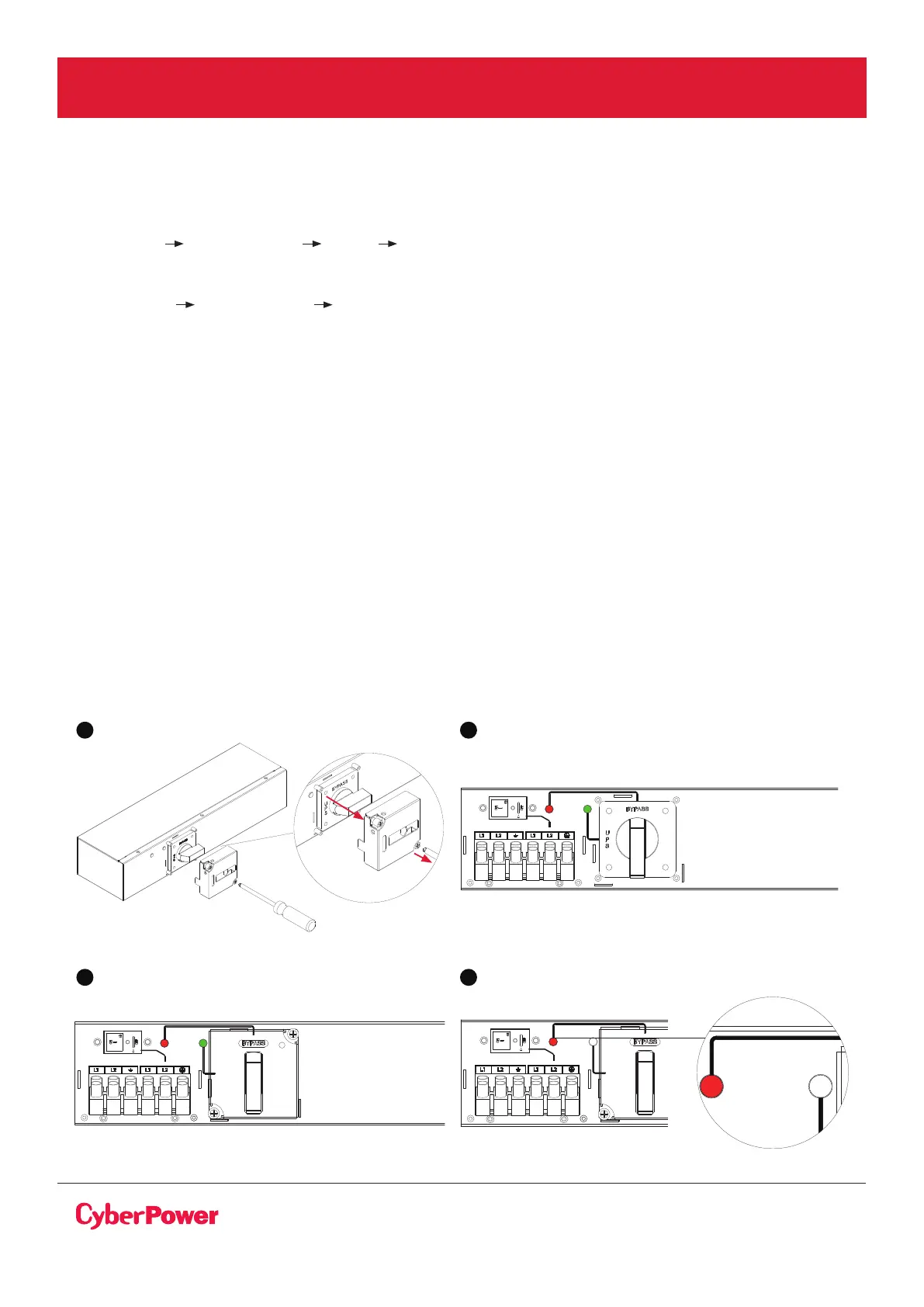

1. Firstly UPS should set to bypass mode from LCD Panel (refer to the UPS user manual as following)
(1) OL5KRTHD/OL6KRTHD models :
Controls Manual Bypass Enable Activate
(2) OL6KRT/OL8KRT/OL10KRT/OL6KRTF/OL8KRTF/OL10KRTF:
Configure Manual Bypass Enable
2. Verify that the UPS is on Bypass mode by checking UPS display panel (refer to the UPS user manual)
Important ! before setting the UPS to bypass mode, do not set the MBP manual Bypass switch to
the “Bypass” position.
UPS will be damaged if this is not followed.
3. Release two screws by screw driver and open the Cover of MBP switch.
4. Set the MBP manual Bypass switch to “Bypass” position, indicating that the load is supplied
directly by Normal AC source (Utility) power.
5. Replace the Cover of MBP switch and tighten 2 screws by screw driver.
6. Press the UPS “ON/OFF” power button for 3 seconds to turn off UPS and make sure UPS is
turned in to standby mode and green light of the MBP goes Off.
ELECTRICAL INSTALLATION CONT.
UPS REPLACEMENT WITH MBP63A2
For UPS removal, followed the MANDATORY steps below:
FROM UPS OUTPUT
63A / 250V~
to switch
Bypass
Normal
UPS INPUT SWITCH
UPS
OK
FROM UPS OUTPUT
63A / 250V~
TO UPS NORMAL AC SOURCE
to switch
Bypass
Normal
UPS INPUT SWITCH
UPS
OK
To Next Page
