Read and follow the IMPORTANT SAFETY
INSTRUCTIONS before servicing the battery.
Service the battery under the supervision of
personnel knowledgeable of batteries and
their precautions. CAUTION! Servicing of the
battery should only be performed by trained
personnel familiar with batteries and their
precautions. For more information on battery
replacement, contact your dealer or call the
number on this manual.
Replacement of batteries located in an
OPERATOR ACCESS AREA.
1. When replacing batteries, replace with
the same number of the following
battery: CyberPower RBP834 for the
OR1500LCDRTXL2U; CyberPower RBP844
for the OR2200LCDRTXL2U.
2. CAUTION! Risk of Energy Hazard, 12 V,
maximum 7(for the OR1500LCDRTXL2U) or
9 (for the OR2200LCDRTXL2U) Ampere-
hour battery. Before replacing batteries,
remove conductive jewelry such as chains,
wrist watches, and rings. High energy
conducted through these materials could
cause severe burns;
3. CAUTION! Do not dispose of batteries in a
fire. The batteries may explode;
4. CAUTION! Do not open or mutilate
batteries. Released material is harmful to
the skin and eyes. It may be toxic.
CAUTION - RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO LOCAL REGULATIONS
REPLACING THE BATTERY

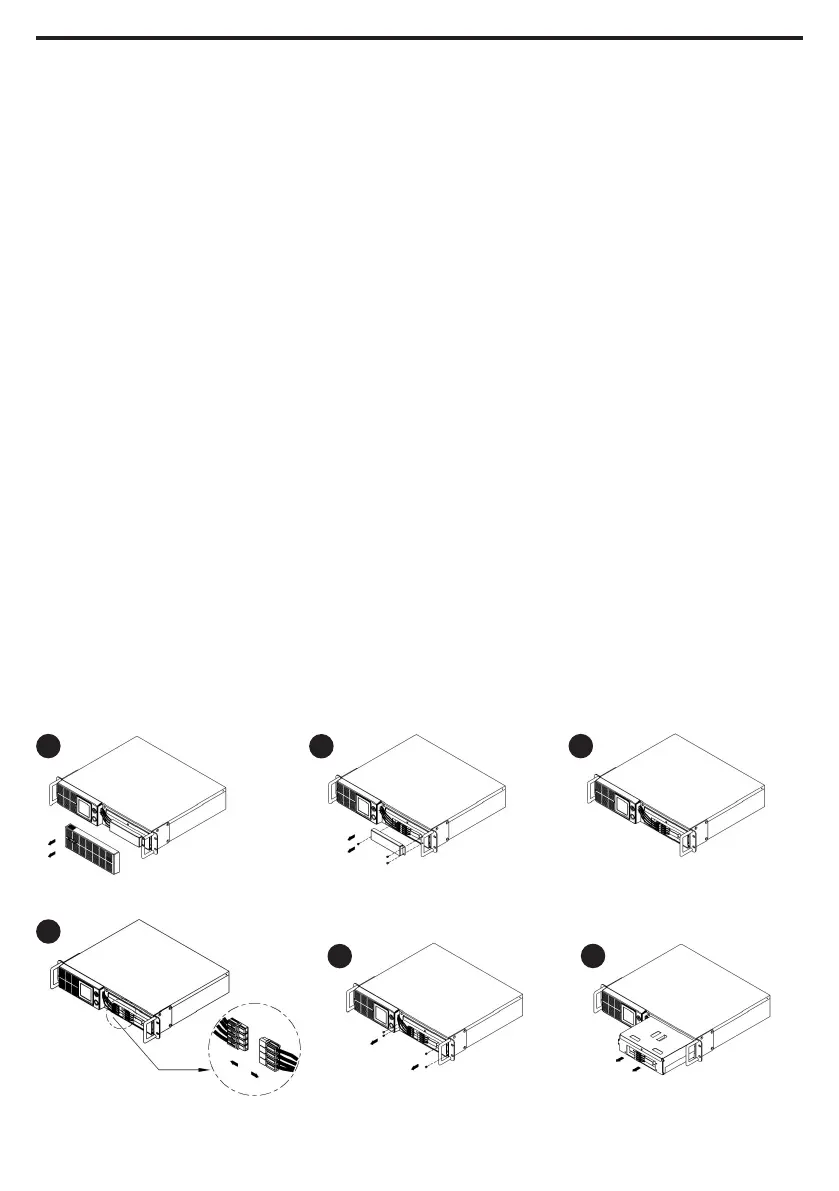

BATTERY REPLACEMENT PROCEDURE:
1. Remove the right side front panel.
2. Remove the three retaining screws of the cable protection cover then remove the cover.
3. Remove the two retaining screws of the cable connectors.
4. Disconnect the black and red cable
5. Remove the four retaining screws.
6. Insert the new battery pack. Assemble the screws, cover, cable and front panel in the reverse
sequence of above steps. Recharge the unit for 4-8 hours to ensure the UPS performs
expected runtime.
REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell lead-acid
batteries collect used batteries for recycling, as required by local regulations.
1
2
3
4
5
6
