CyberPower OR1500LCDRTXL2U User Manual

BASIC OPERATION
1. Power Switch
Master on/o switch for equipment
connected to the UPS.
2. Power On Indicator (blue)
This LED is illuminated when the utility
power is normal and the UPS outlets are
providing power, free of surges and spikes.
3. LCD module display
Crystal Blue intelligent LCD panel shows
all the UPS information using icons and
messages. For more information please
review the “Definitions for Illuminated LCD
Indicators” section below.
4. LCD function selection switch
The switch can be used to select the LCD
display contents including input/output
voltage and estimated run time, etc.
5. 8 Full Time Battery Powered and Surge
Protected Outlets
The unit has eight battery powered/
surge suppression outlets for connected
equipments to ensure temporary
uninterrupted operation of your equipment
during a power failure. (DO NOT plug a
laser printer, paper shredder, copier, space
heater, vacuum, sump pump or other large
electrical devices into the UPS. The power
demands of these devices will overload
and possibly damage the unit.)
6. AC Input Power Cord
Heavy-duty, extra long power cord.
7. Output Circuit Breaker
Resettable circuit breakers provide output
optimal overload protection.
8. Input Circuit Breaker
Resettable circuit breakers provide input
optimal overload protection.
9. USB Port
The USB port allows connection and
communication between the USB port on
the computer and the UPS unit.
10. Communication Protection Ports
Communication protection ports will
protect any standard modem, fax,
telephone line, network or Ethernet
connection (RJ11/RJ45).
11. Wiring Fault Indicator (red)
This LED indicator will illuminate to warn
the user that a wiring problem exists, such
as bad ground, missing ground or reversed
wiring. If this is illuminated, disconnect
all electrical equipments from the outlet
and have an electrician verify the outlet is
properly wired. The unit will not provide
surge protection without being plugged
into a grounded and properly wired wall
outlet.
12. Coax/Cable/DSS Surge Protection
The Coax/Cable/DSS surge protection
ports will protect any cable modem, CATV
converter, or DSS receiver.
13. Serial Port I (Primary)
The serial port allows connection and
communication between the UPS and the
computer.
14. Serial Port II (Dry Contact)
Dry contact produces information for
equipment that can utilize dry contact
signals.

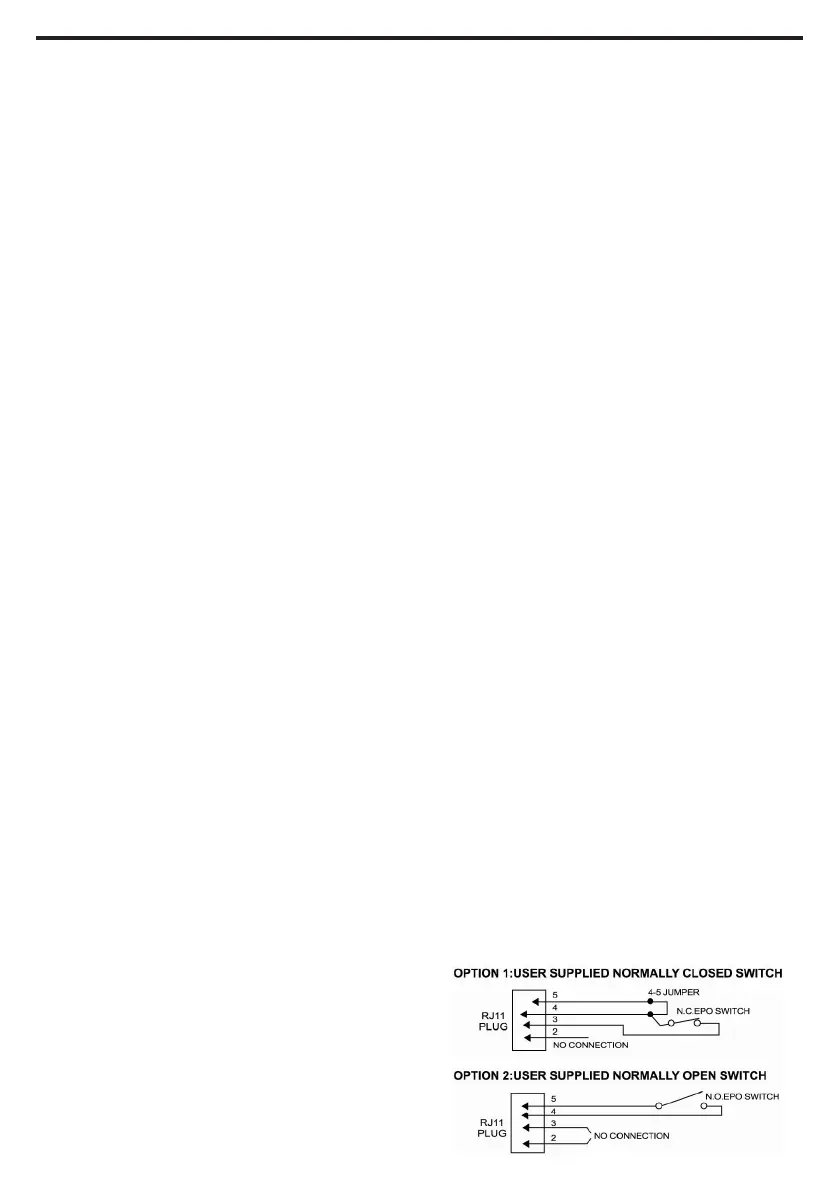

15. EPO (Emergency Power O) Port:
Use the provided gray cable to connect to
a special EPO contact switch. Follow the
appropriate circuit diagram below to wire
the cable to your EPO configuration. The
EPO remote switch is a switch installed
in an outside area, connected to the unit
via the Emergency Power O cable. In
case of an emergency, it can be used to
immediately cut-o power from the UPS.
16. SNMP/HTTP Network Slot:
Remove the cover panel to install an
optional RMCARD provides remote
monitoring and management of your UPS
over a network.
17. External Battery Pack Connector
Use to connect the optional CyberPower
external battery packs for extended
runtime.

CyberPower OR1500LCDRTXL2U Specifications

General

Output power	1125 W
Input frequency	- Hz
Surge energy rating	1840 J
Output power capacity	1.5 kVA
EMI/RFI noise filtering	Yes
Power protection features	Overload
Battery type	12V, 7AH
Management platform	SNMP, HTTP
Nominal input voltage	90-140 V
Nominal output voltage	120 V
AC outlet types	NEMA 5–15R
AC outlets quantity	8 AC outlet(s)
Modem (RJ-11) ports	2
USB 2.0 ports quantity	1
Form factor	Rackmount/Tower
Cable length	3 m
Display type	LCD
Certification	UL1778, cUL 107.3, FCC DOC Class B
Product color	Black
Rack capacity	2U
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at full load	7 min
Typical backup time at half load	18 min
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 90 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	477.52 mm
Width	431.8 mm
Height	88.9 mm
Weight	26988.7 g
