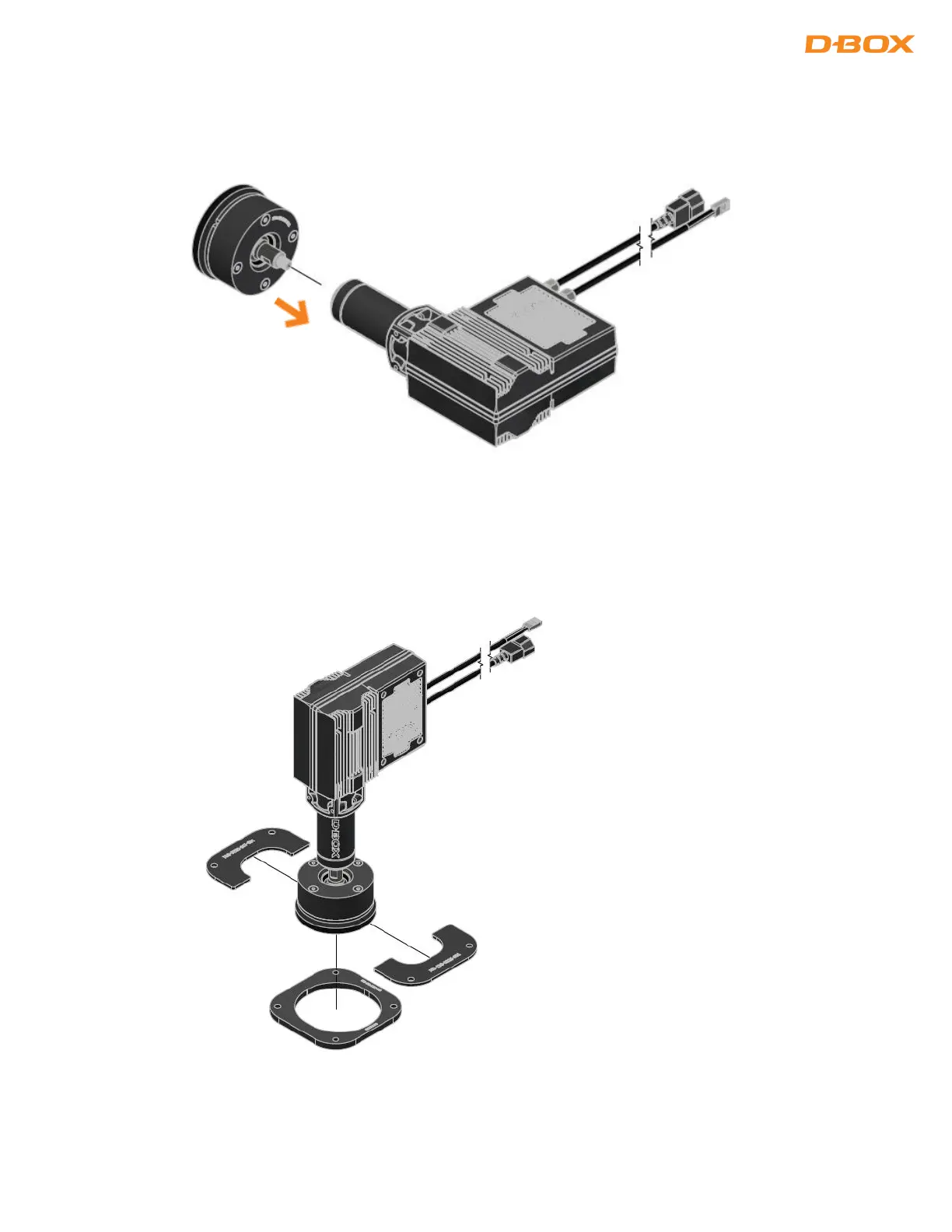

STEP 3: Apply some blue thread locker on the ball joint threads then tighten with a torque of 130 lbf·in (15
Nm) using a 5/8’’ (16 mm) wrench:
STEP 4: Install the ball joint assembly to the spacer retainer then attach it to the floor (or sub frame) with
adequate hardware (anchors, bolts, etc.).
NOTE: Hardware to attach the spacer retainers to the floor (or sub frame) is not included.
