D-Link DAP-1330 User Manual

49D-Link DAP-1330 User Manual

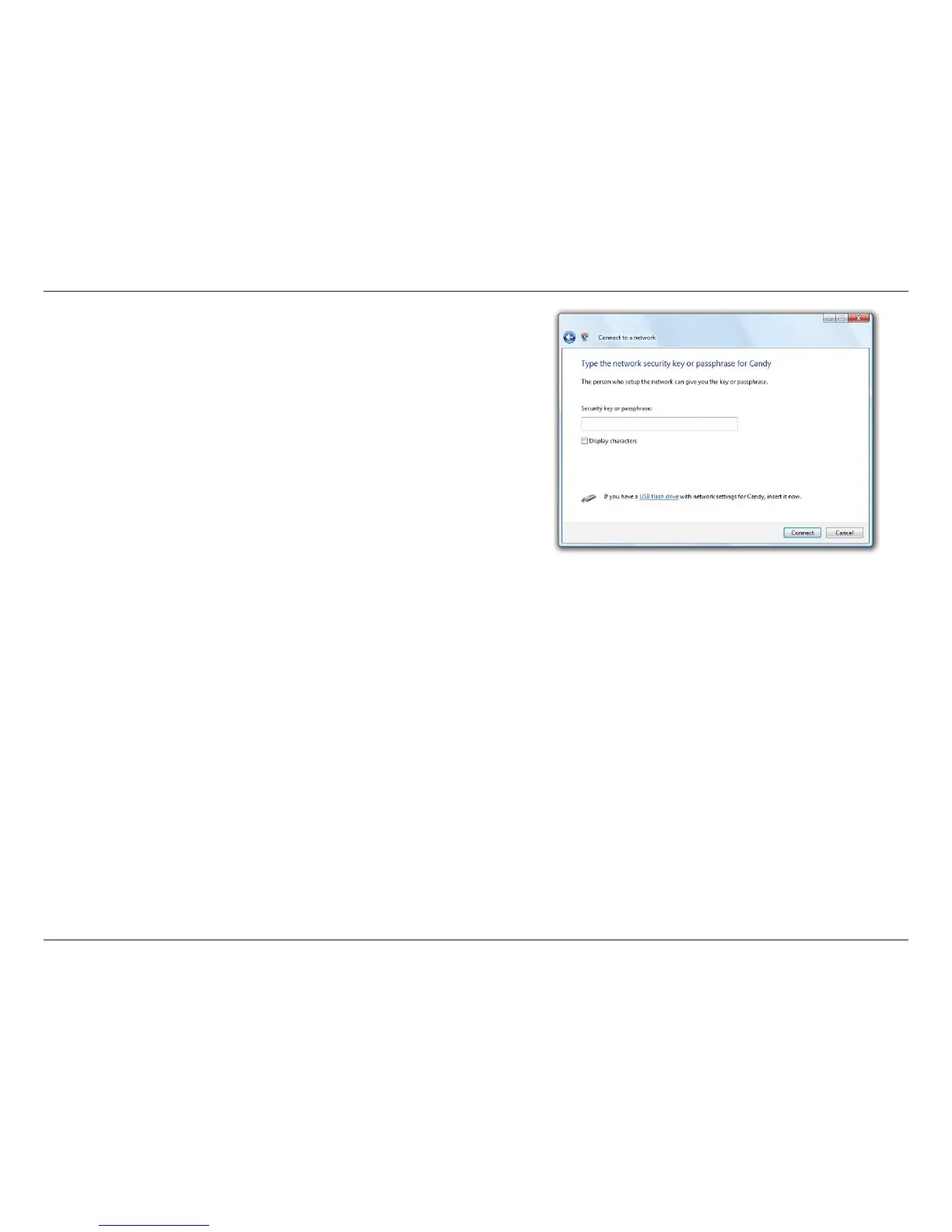

Section 4 - Connecting a Wireless Client
3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.

D-Link DAP-1330 Specifications

General

Product color	White
LED indicators	Yes
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u
Interface	Wi-Fi/Ethernet
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA, WPA2, WPS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating altitude	5 - 95 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, IC, CE, C-Tick, CB, UL

Weight and Dimensions

Weight	86.9 g
Dimensions (WxDxH)	77 x 55.5 x 34 mm
