Performance

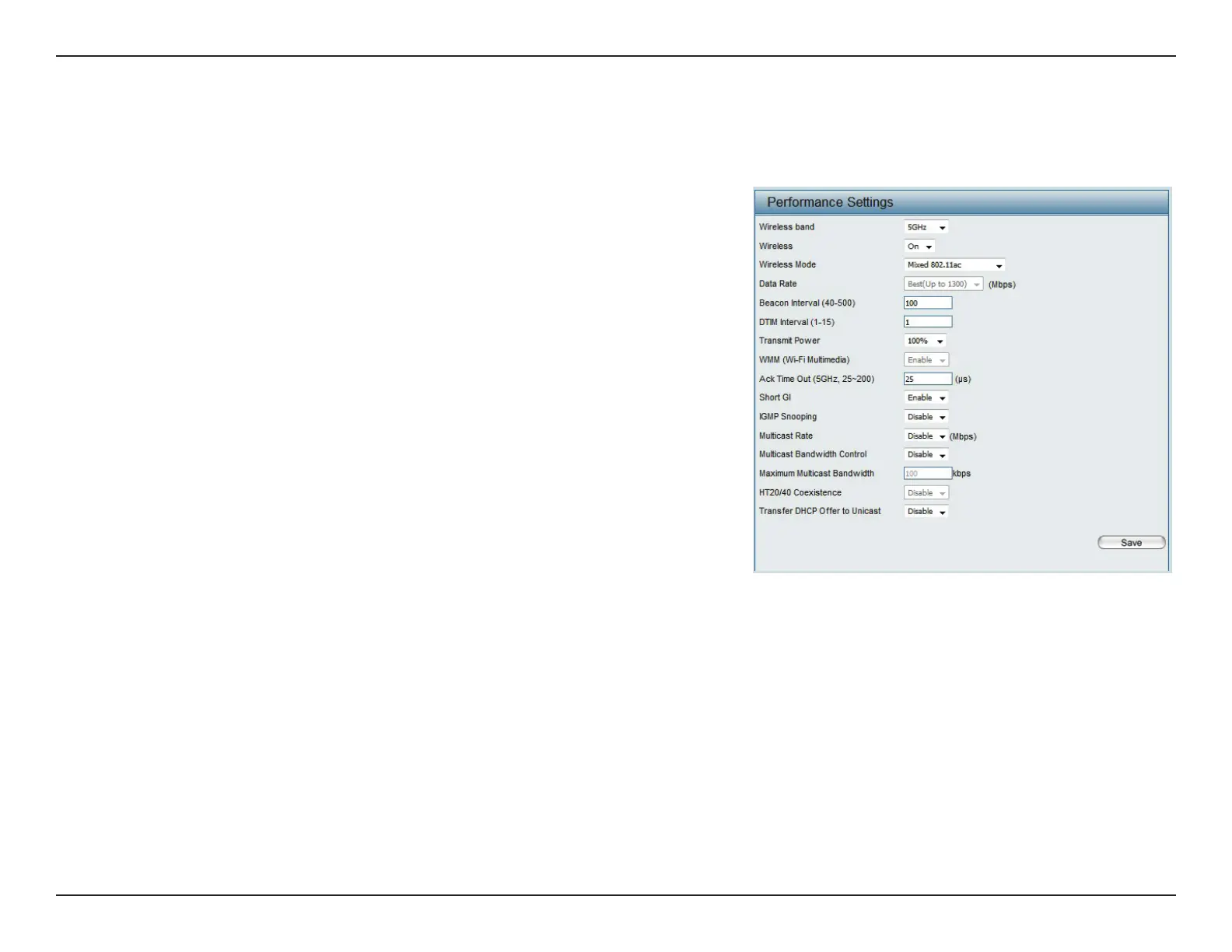

On the Performance Settings page the users can congure more advanced settings concerning the wireless signal and hosting.
Wireless Band:
Wireless:
Wireless Mode:
Data Rate*:
Beacon Interval (25-500):
DTM Interval (1-15):
Select either 2.4GHz or 5GHz.
Use the drop-down menu to turn the wireless function On or O.
The dierent combination of clients that can be supported include
Mixed 802.11n, 802.11g and 802.11b, Mixed 802.11g and 802.11b
and 802.11n Only in the 2.4 GHz band and Mixed 802.11n, 802.11a,
802.11a only, and 802.11n Only in the 5 GHz band. Please note that
when backwards compatibility is enabled for legacy (802.11a/g/b)
clients, degradation of 802.11n wireless performance is expected.
Indicate the base transfer rate of wireless adapters on the wireless
LAN. The AP will adjust the base transfer rate depending on the base
rate of the connected device. If there are obstacles or interference, the
AP will step down the rate. This option is enabled in Mixed 802.11g
and 802.11b mode (for 2.4 GHz) and 802.11a only mode (for 5 GHz).
The choices available are Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6
for 5 GHz and Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 or
1 for 2.4 GHz.
Beacons are packets sent by an access point to synchronize a
wireless network. Specify a value in milliseconds. The default (100)
is recommended. Setting a higher beacon interval can help to save
the power of wireless clients, while setting a lower one can help a
wireless client connect to an access point faster.
Select a Delivery Trac Indication Message setting between 1 and 15. 1 is the default setting. DTIM is a countdown informing
clients of the next window for listening to broadcast and multicast messages.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
