39D-Link DAP-2695 User Manual
Section 3 - Conguration
AP Array

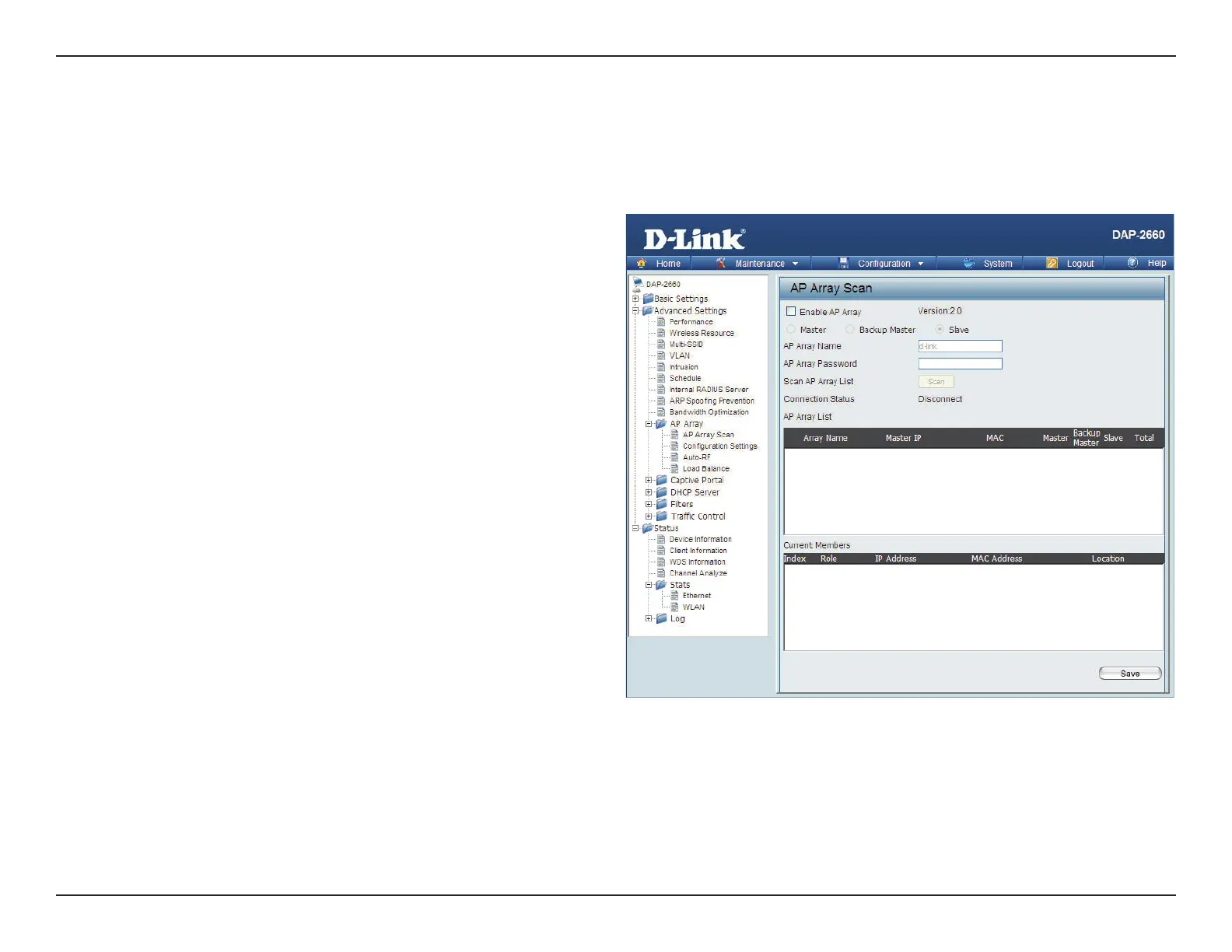

The AP Array window is used to create up to 32 APs on a local network to be organized into a single group in order to increase ease of management.
Click the Save button to let your changes take eect. Central WiFiManager and AP Array are mutually exclusive functions.
Enable AP Array:
AP Array Name:
AP Array Password:
Scan AP Array List:
Connection Status:
AP Array List:
Current Members:
Select the check box to enable the AP array
function. The three modes that are available are
Master, Backup Master, and Slave. APs in the
same array will use the same conguration. The
conguration will sync the Master AP to the Slave
AP and the Backup Master AP when a Slave AP and
a Backup Master AP join the AP array.
Enter an AP array name for the group here.
Enter an AP array password for the group here.
This password must be the same on all the APs
in the group.
Click this button to initiate a scan of all the
available APs currently on the network.
Display the AP array connection status.
This table displays the current AP array status for
the following parameters: Array Name, Master
IP, MAC, Master, Backup Master, Slave, and Total.
This table displays all the current array members.
The DAP-2660 AP array feature supports up to
eight AP array members.
