Section 3 - Conguration

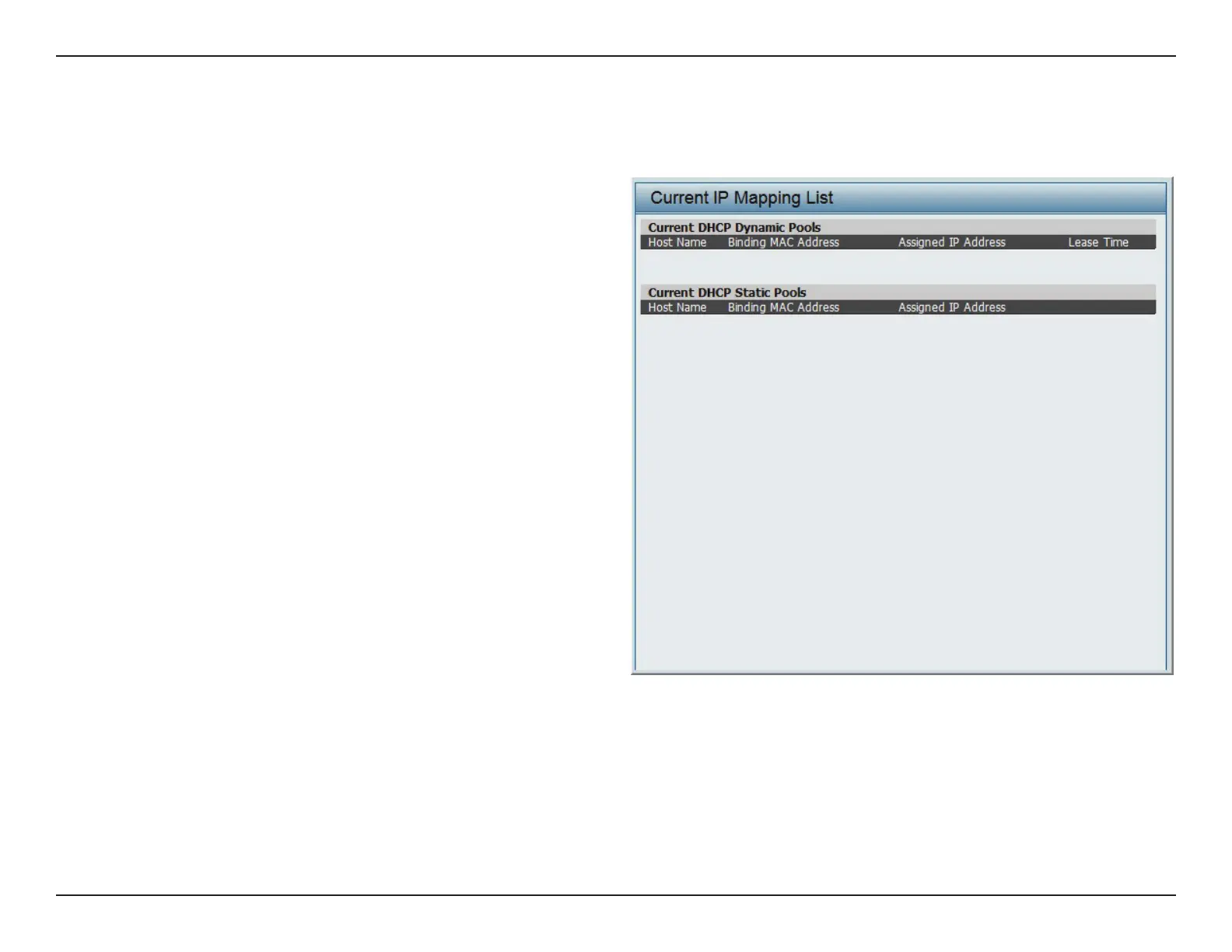

Current IP Mapping List
This window displays information about the current assigned DHCP dynamic and static IP address pools. This information is available when you
enable DHCP server on the AP and assign dynamic and static IP address pools.
Current DHCP Dynamic
Prole:
Binding MAC Address:
Assigned IP Address:
Lease Time:
Current DHCP Static Pools:
Binding MAC Address:
Assigned IP Address:
Binding MAC Address:
Assigned IP Address:
These are IP address pools the DHCP server has
assigned using the dynamic pool setting.
The MAC address of a device on the network
that is assigned an IP address from the DHCP
dynamic pool.
The current corresponding DHCP-assigned IP
address of the device.
The length of time that the dynamic IP address
will be valid.
These are the IP address pools of the DHCP
server assigned through the static pool settings.
The MAC address of a device on the network
that is within the DHCP static IP address pool.
The current corresponding DHCP-assigned
static IP address of the device.
The MAC address of a device on the network
that is assigned an IP address from the DHCP
dynamic pool.
The current corresponding DHCP-assigned
static IP address of the device.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
