D-Link DAP-2695 User Manual

76D-Link DAP-2695 User Manual
Section 3 - Conguration

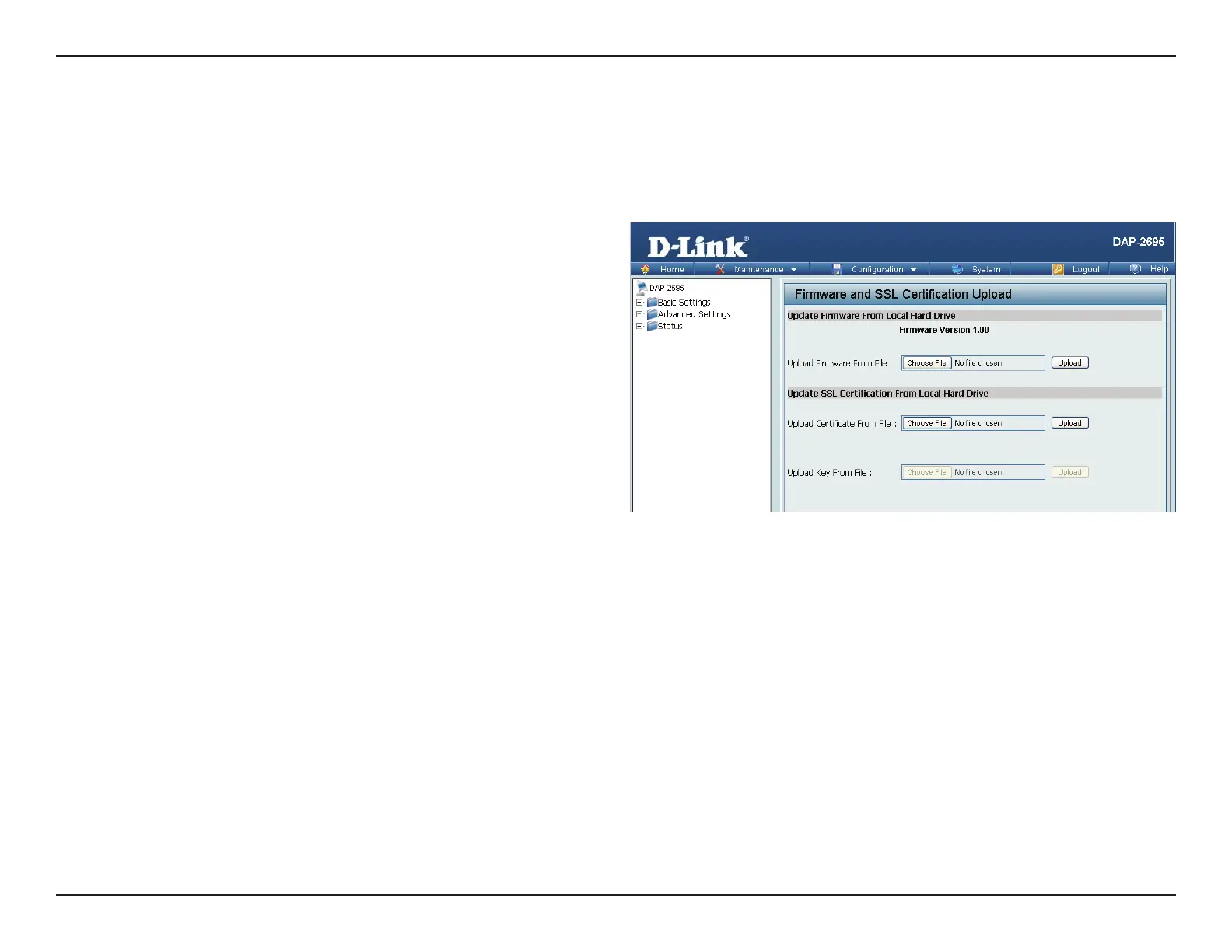

Firmware and SSL Upload
This page allows the user to perform a rmware upgrade. A Firmware upgrade is a function that upgrade the running software used by the
access point. This is a useful feature that prevents future bugs and allows for new features to be added to this product. Please go to your local
D-Link website to see if there is a newer version rmware available.
Firmware and SSL
Certication Upload:
Upload Firmware from
Local Hard Drive:
Upload SSL Certication
from Local Hard Drive:
You can upload les to the access point.
The current rmware version is displayed
above the le location eld. After the
latest rmware is downloaded, click on
the “Choose File” button to locate the
new rmware. Once the le is selected,
click on the “Open” and “Upload” button
to begin updating the rmware. Please
don’t turn the power o while upgrading.
After you have downloaded a SSL
certication to your local drive, click
“Choose File.” Select the certication and
click “Open” and “Upload” to complete
the upgrade.

D-Link DAP-2695 Specifications

Operating Environment

operating temperature	0˚C to 40˚C
storage temperature	-20˚C to 65˚C
operating humidity	10%~90% (non-condensing)
storage humidity	5%~95% (non-condensing)

Power

operating voltage	48V DC +/- 10% for PoE
voltage and current for PoE	48V/0.5A

Wireless Specifications

wireless frequency range	2.4 to 2.4835 GHz and 5.15 to 5.85 GHz
antenna type at 2.4GHz	3x Detachable 4 dBi Omni antennas
antenna type at 5GHz	3x Detachable 6 dBi Omni antennas

Weight and Dimensions

length	198.8 mm
width	190 mm
height	36.5 mm
